2022 Superior Conveyor - Stacking 36X80PS
Fields with asterisks * are required.
Print This Page
Description

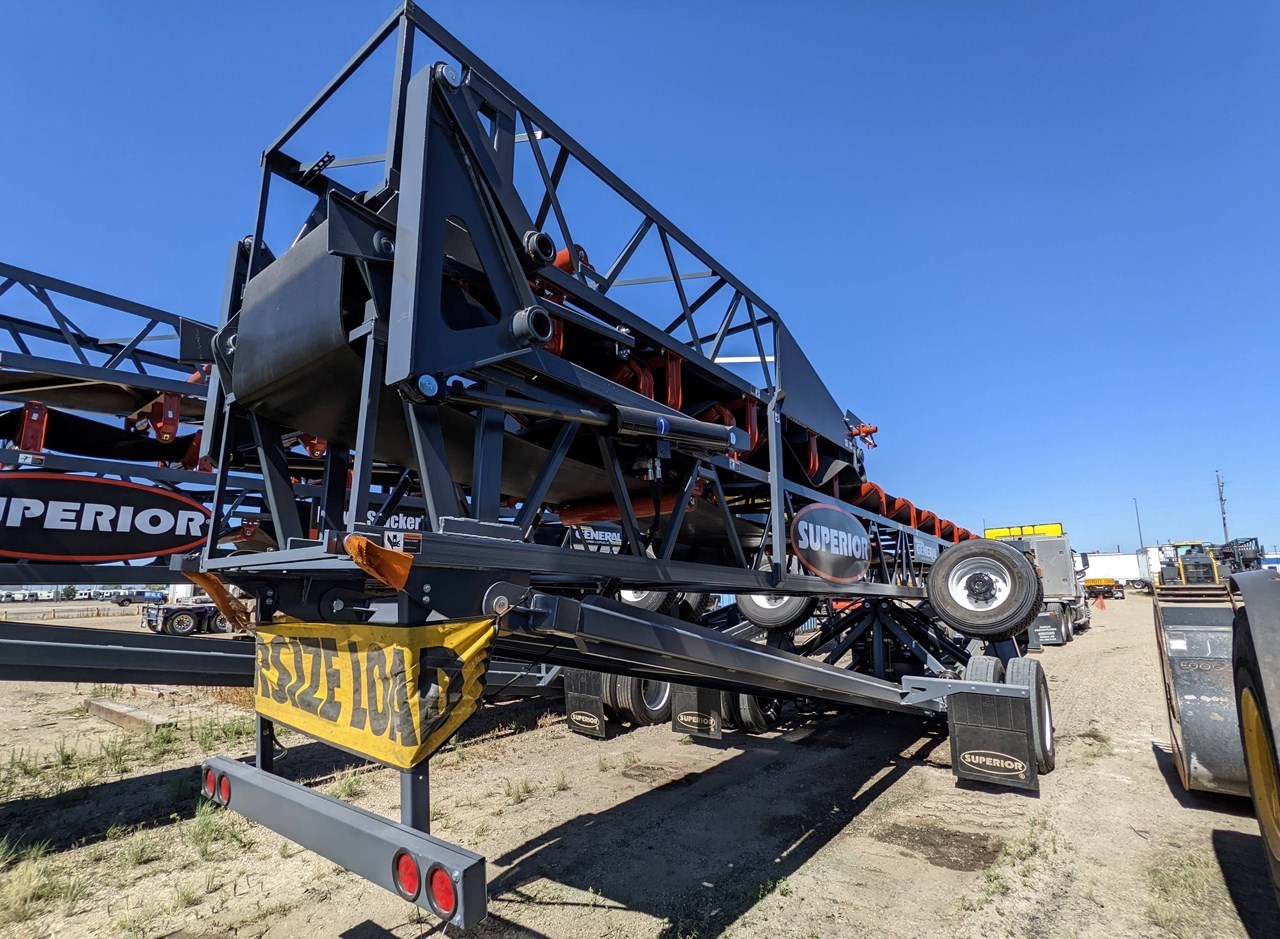

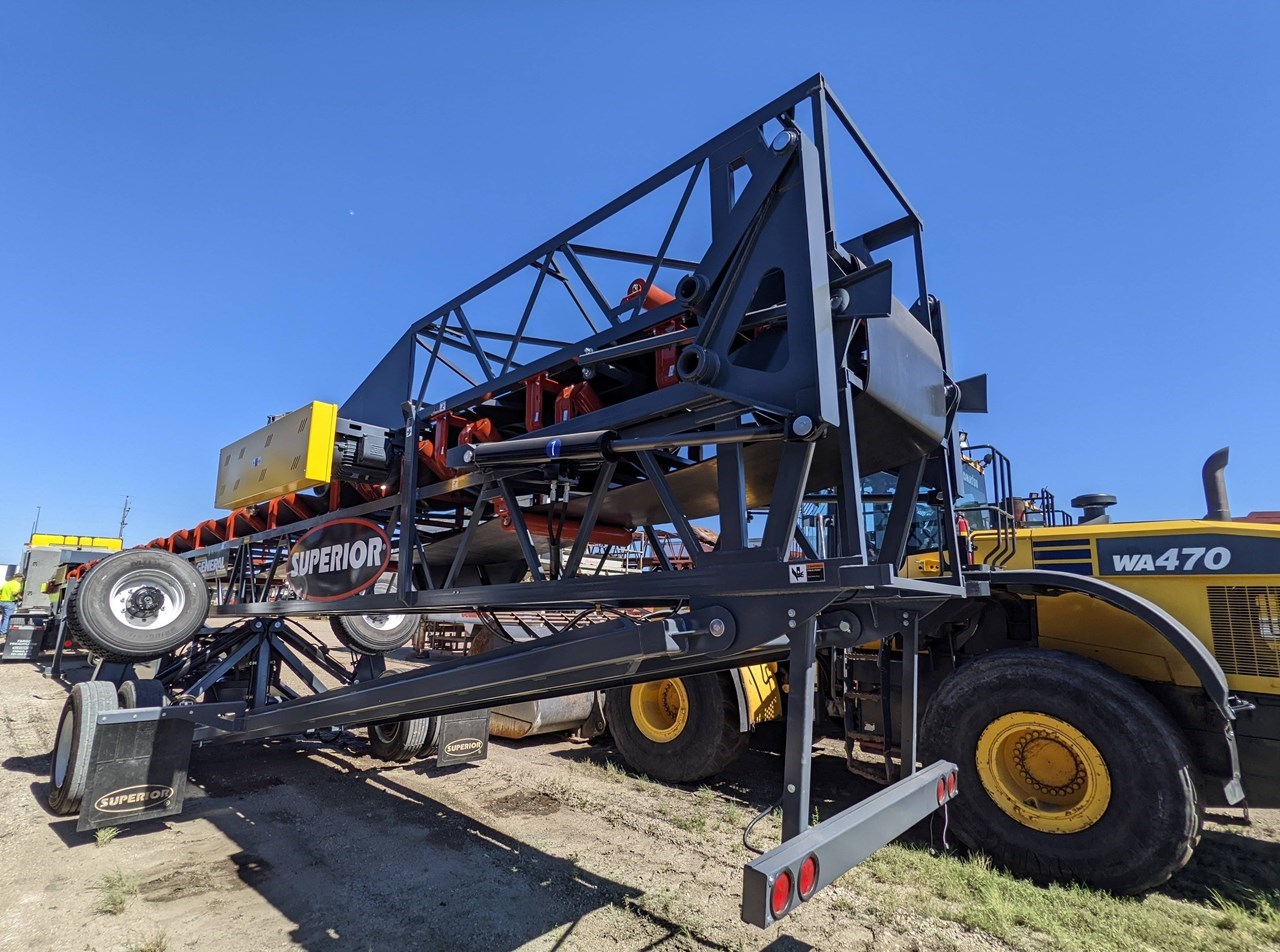

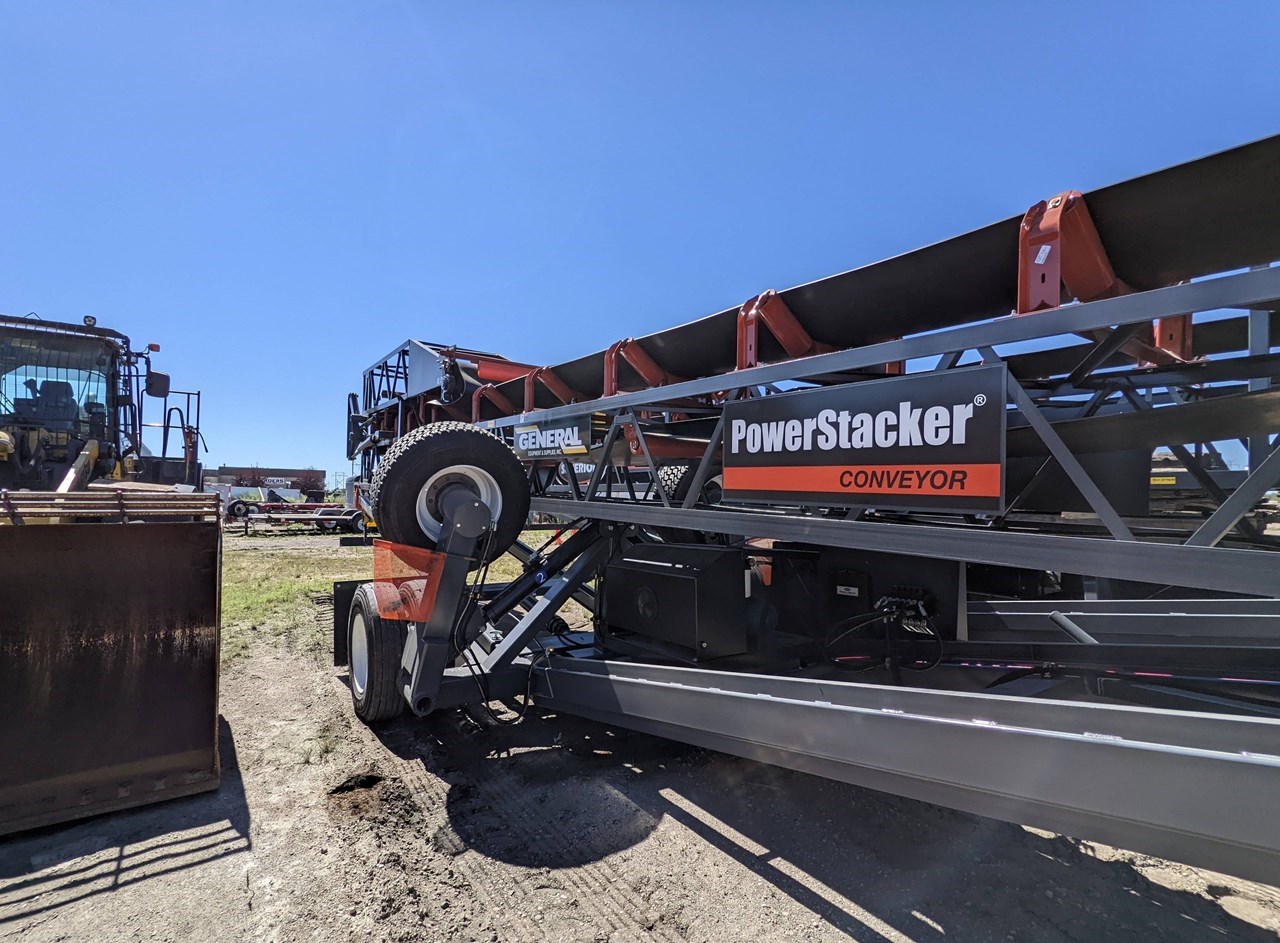

POWERSTACKER CONVEYOR
Inventory ID
E00063015
Serial
2075654
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00063015
- Status: On Rent
- Make: Superior

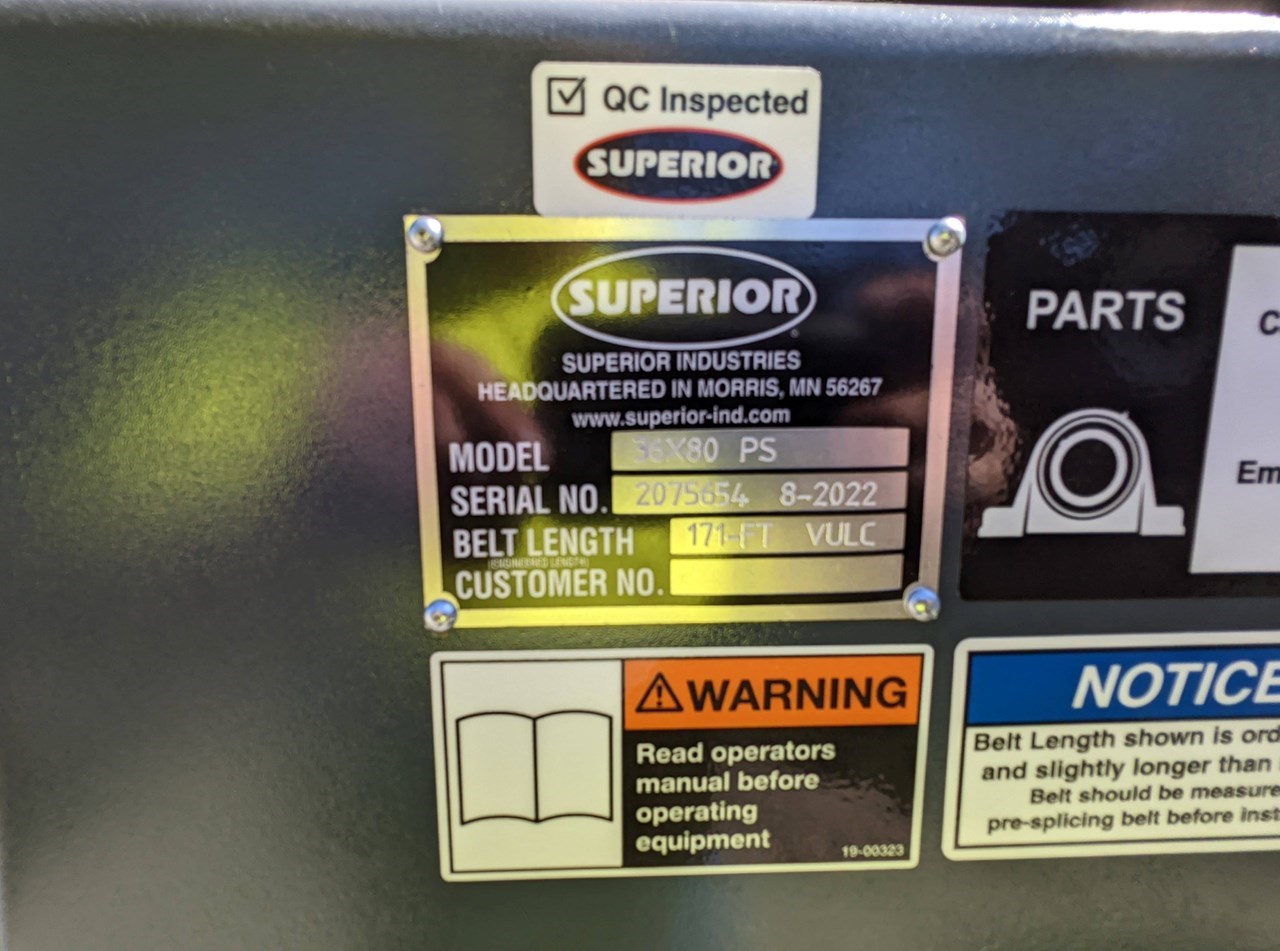

- Model: 36X80PS
- Year: 2022
- Serial#: 2075654
Notes
- SUPERIOR 36" X 80- POWERSTACKER CONVEYOR EQUIPPED AS PER BELOW:
- CONVEYOR FRAME:
- - MAIN FRAME: 30›¼À DEEP TRUSS
- - CHORD ANGLES: 3›¼À X 3›¼À X 1/4›¼À BOTTOM CHORD UPSIZED BETWEEN PINPOINTS TO 4›¼À X 3›¼À
- X 1/2"
- - LATTICEMEMBERS: 1 1/2›¼À X 1 1/2›¼À X 3/16›¼À
- DRIVE SPECIFICATIONS:
- - DRIVE: CLASS I HEAD END
- - GEAR REDUCER: DODGE SHAFT MOUNT
- - BACKSTOP: INSTALLED IN REDUCER
- - MOTOR: 30 HP 1800 RPM TEFC
- - V-BELT DRIVE: WITH DRIVE GUARD
- - CAPACITY: 750 STPH OF 100 PCF MATERIAL 25 DEGREE SURCHARGE (90% FINES 10%
- SPHERICAL LUMPS 6›¼À MINUS)
- - BELT SPEED: 400 FPM
- SUPERIOR PULLEYS:
- - DRIVE PULLEY: 18›¼À DIAMETER 3/8›¼À HERRINGBONE LAGGED DRUM
- - TAIL PULLEY: 16›¼À DIAMETER CEMA CHEVRON WING PULLEY
- - SNUB PULLEY: NOT INCLUDED
- - HEAD PULLEY: NOT APPLICABLE
- - SHAFTS: TURNED AND POLISHED
- - BEARINGS: DODGE
- - TAKE UPS: SCREW TYPE
- PORTABILITY:
- - CONVEYOR SPLICE: HYDRAULIC TOP FOLDING HEAD SECTION WITH INTERGAL BELT KEEPER

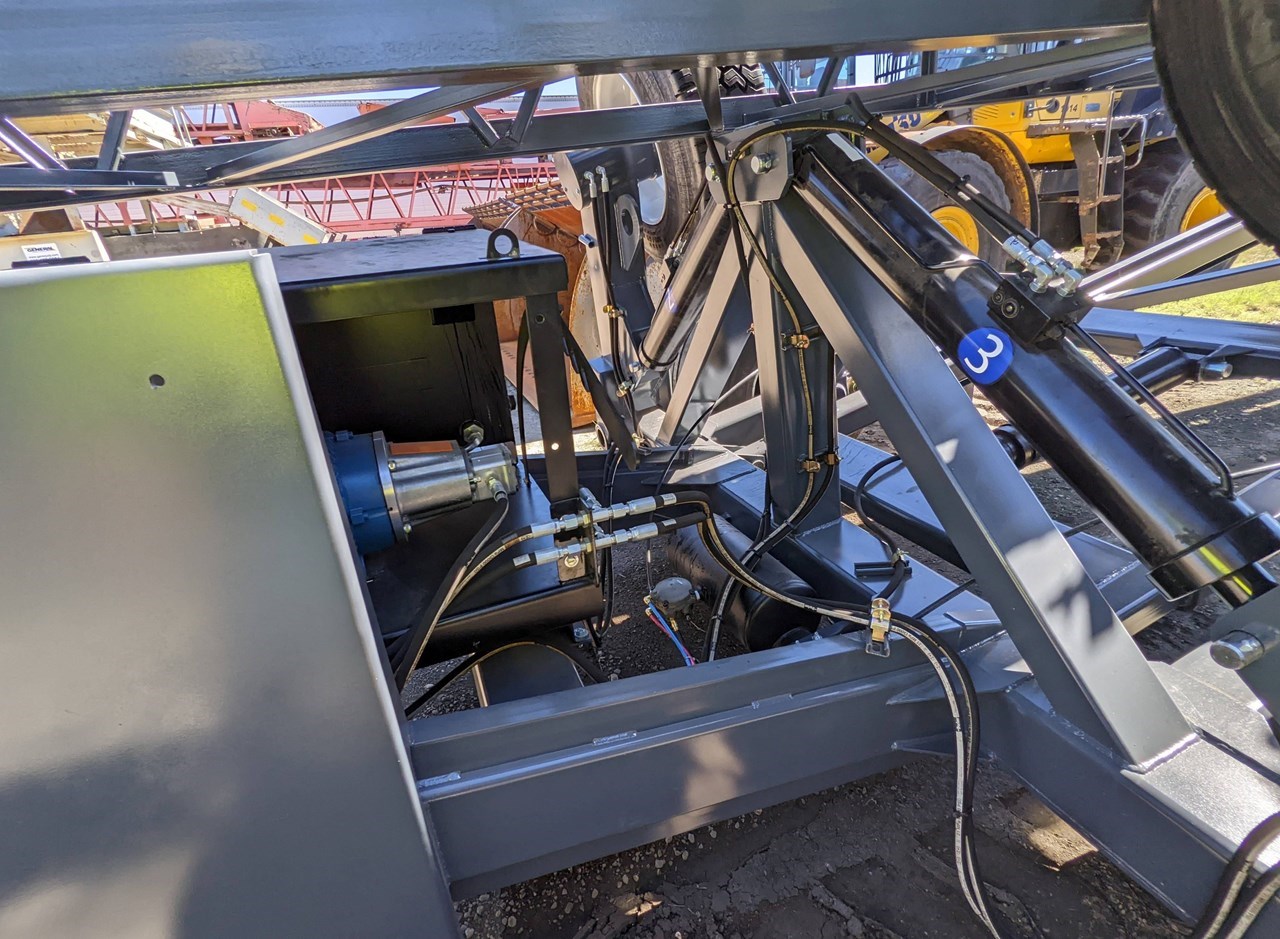

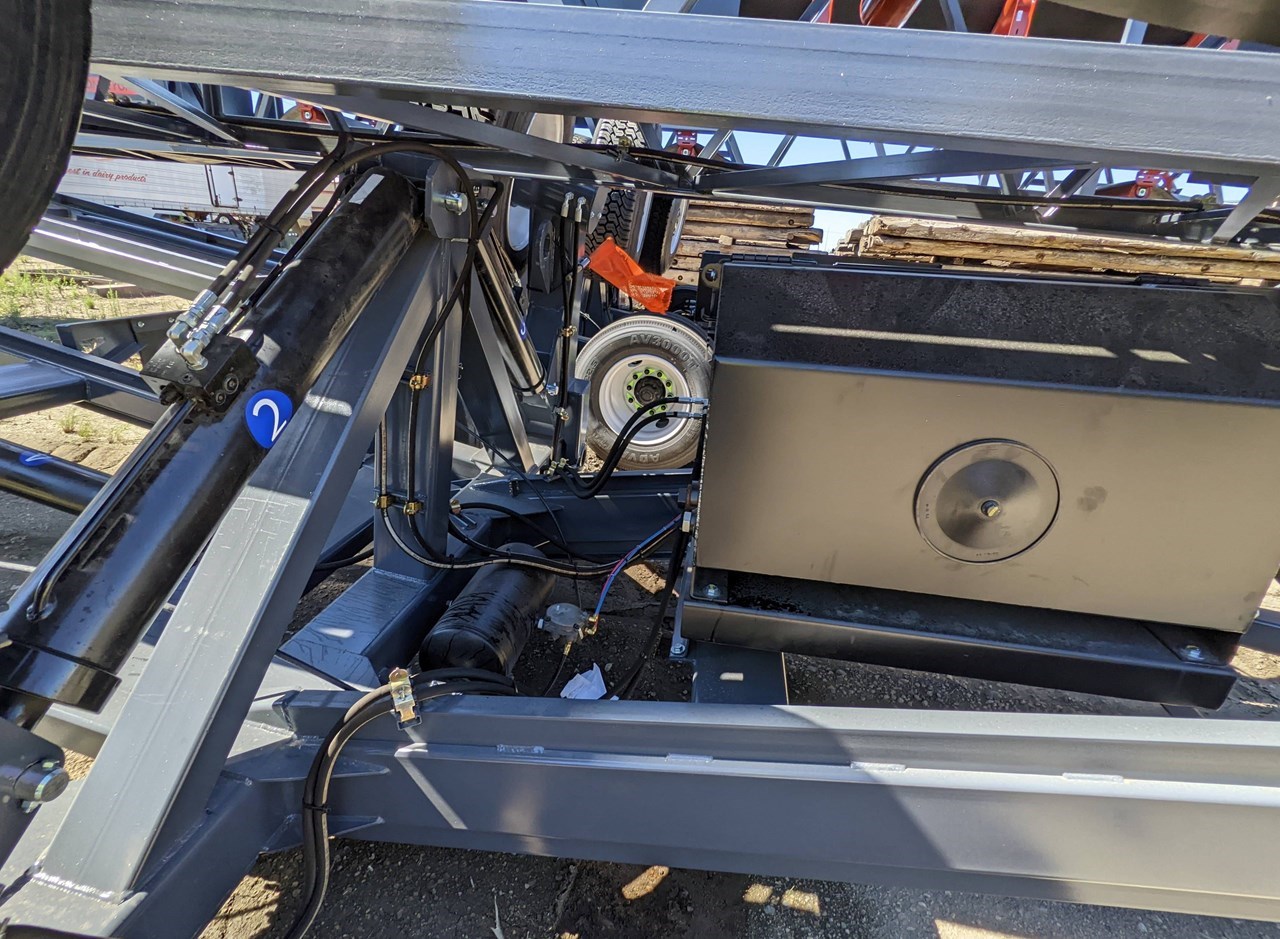

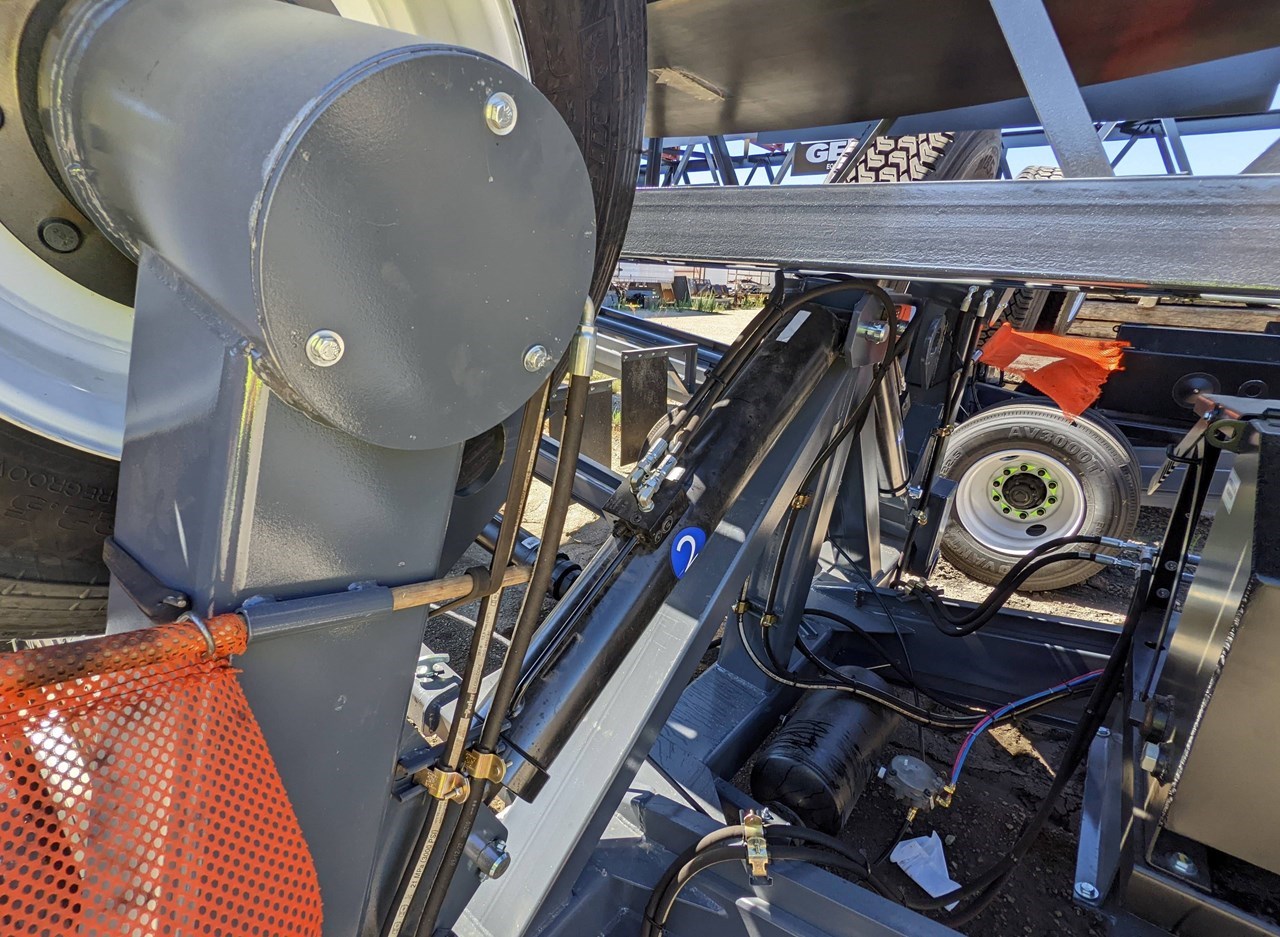

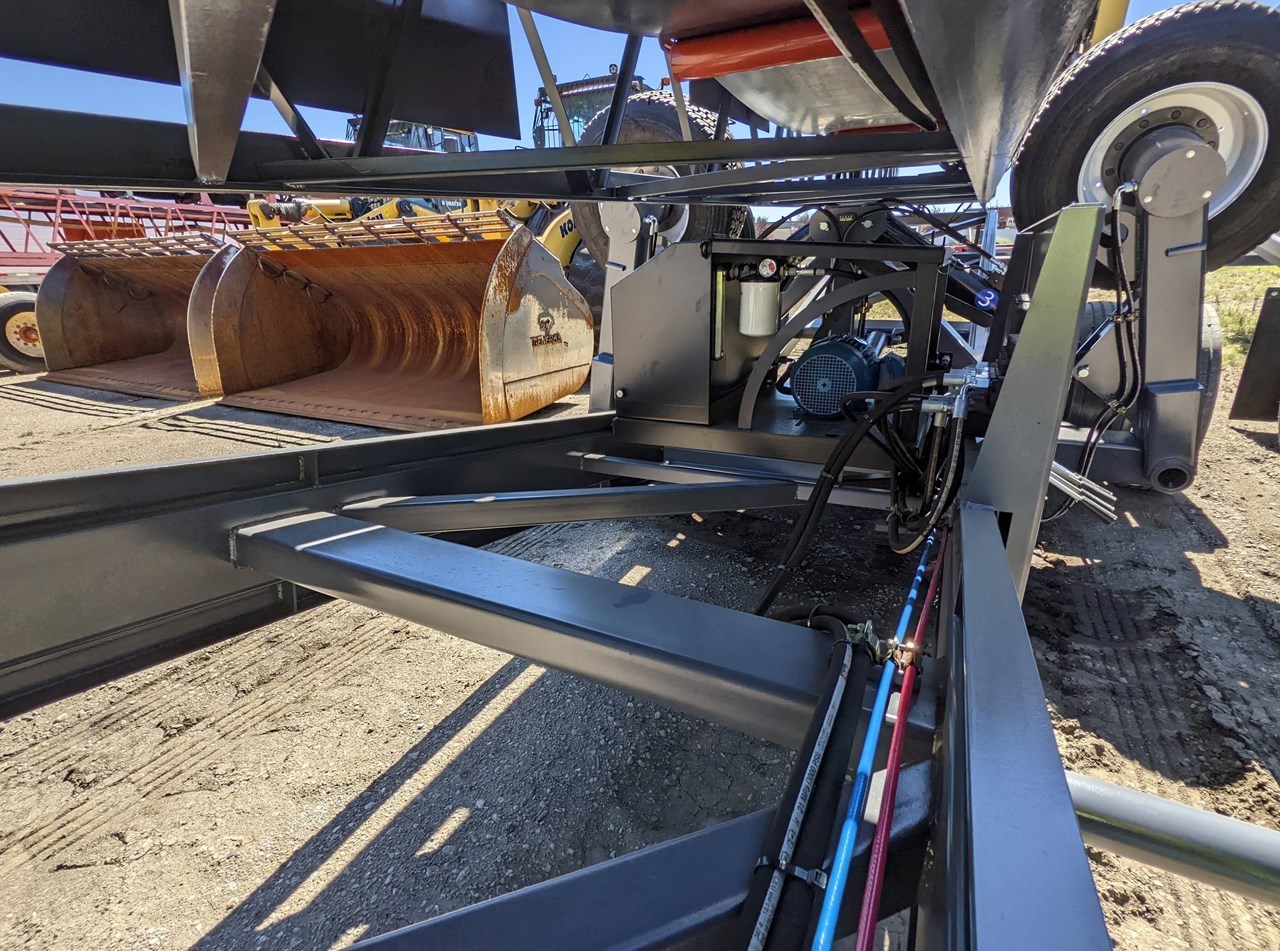

- - UNDERCARRIAGE: HYDRAULIC RAISE WITH 7.5 HP ELECTRIC PUMPING UNIT
- - AXLE TYPE: SUPERIOR›¼À™S FD15 SERIES AXLE
- - TRANSPORT AXLE: (4) 11R-22.5 TRANSPORT TIRES WITH BRAKES AND
- - RADIAL AXLE: (2) 385/65R-22.5 TIRES ON HYDRAULIC OUTRIGGERS POWER TRAVEL
- (REQUIRES HYD. RAISE)
- - RADIAL TRAVEL: (2) 2 HP PLANETARY DRIVE (ALL WHEEL DRIVE)

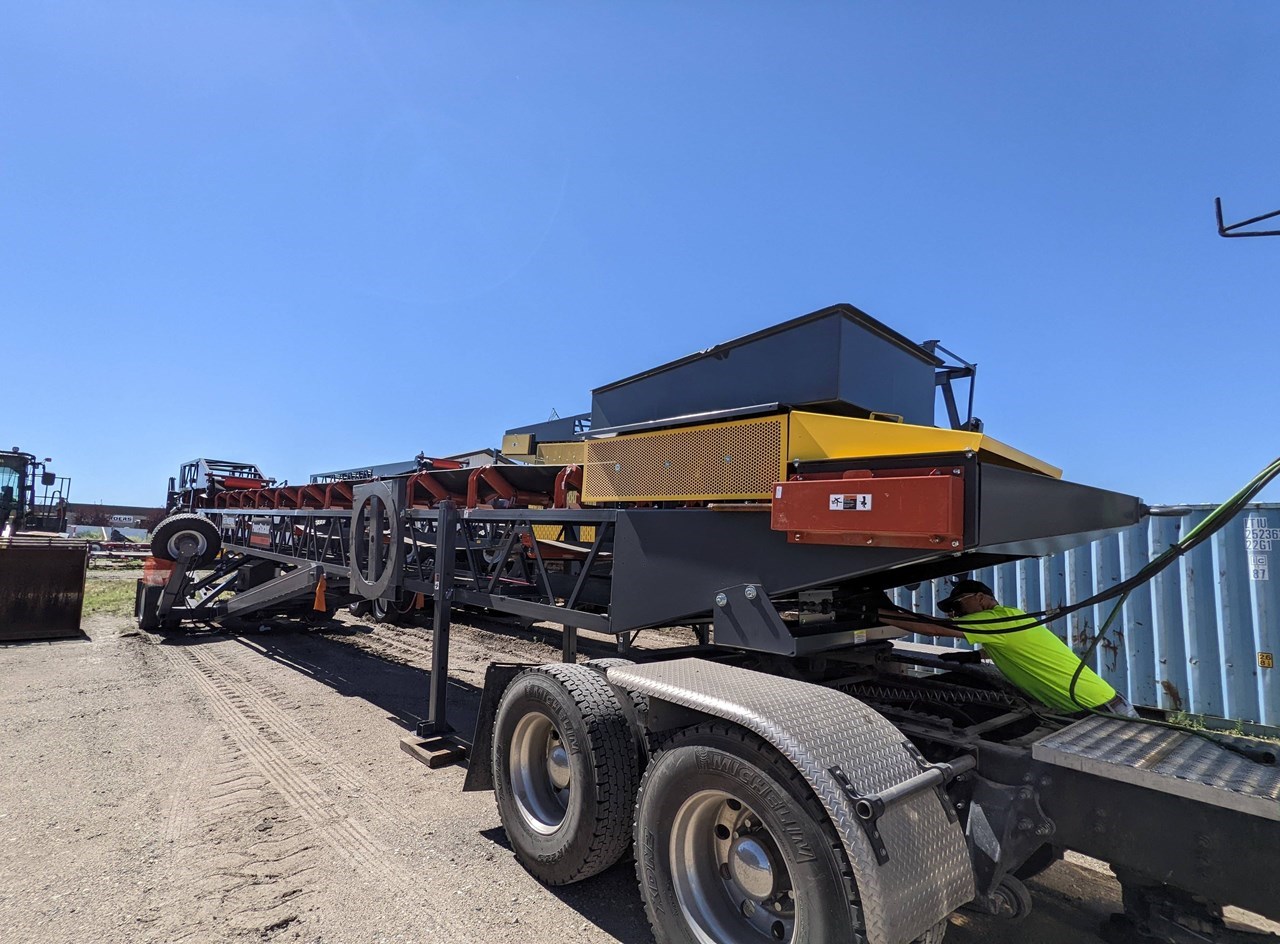

- - FIFTH WHEEL: FOR ROAD TRAVEL BOLT ON DESIGN
- - ANCHOR PIVOT: MAINTAINS TAIL END DURING RADIAL TRAVEL FOR 5TH
- - BRAKES: AIR BRAKES COMPLETE SYSTEM
- - LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
- - MUD FLAPS: INSTALLED BEHIND TRANSPORT WHEELS
- - AXLE JACKS: NOT INCLUDED
- - LANDING GEAR: MANUAL PIN ADJUSTMENT
- - TOWING EYE: PINTLE TYPE HITCH
- CONVEYOR COMPONENTS:
- - BELTING: 3 PLY 3/16 X 1/16 330 PIW
- - BELT SPLICE: FACTORY VULCANIZED BELT SPLICE
- - SCRAPER: SUPERIOR EXTERRA PRIMARY BELT SCRAPER
- - RETURN CLEANER: NOT INCLUDED
- - SUPERIOR IDLERS: CEMA C 5" DIA. ROLLS SEALED FOR LIFE BALL BEARINGS
- - IDLER SEAL: STANDARD SPINGUARD SEAL
- - LOAD AREA: 20›¼° TROUGH 12-16" SPACING
- - TROUGH: 35›¼° ON 4- SPACING
- - RETURNS: STEEL ROLLS ON 10- SPACING

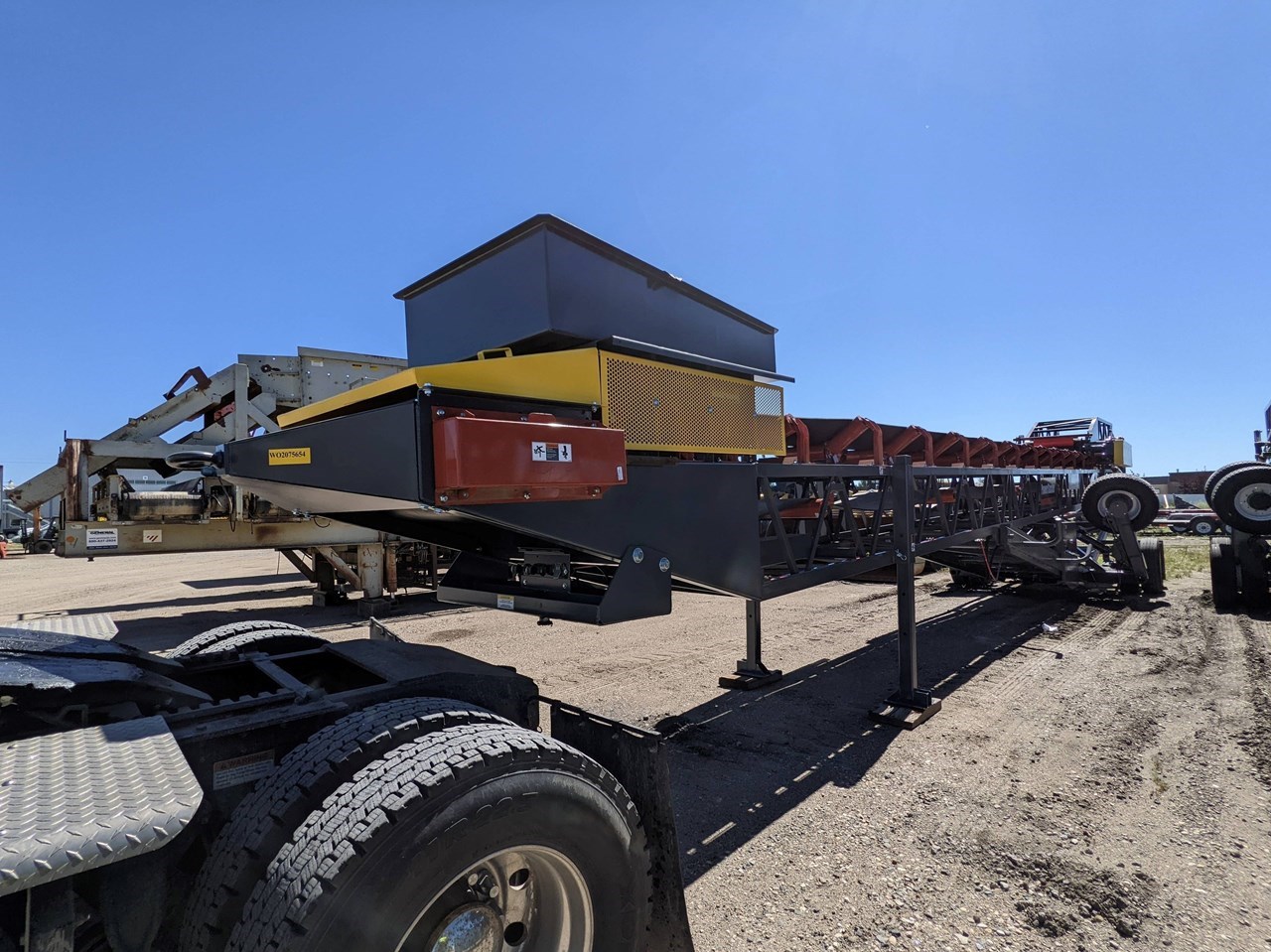

- - RADIAL HOPPER: ROCK BOX HOPPER
- - GATHERING TROUGH: 5- LONG WITH ADJUSTABLE RUBBER FLASHING
- ADDITIONAL SPECIFICATIONS:
- - GUARDING: FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURNS IDLERS. GUARDS
- MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
- INSPECTED
- - VOLTAGE: 480 V / 3 PH / 60 HZ
- - CORD HOLDERS: (1) SET BENT PIPE STYLE
- - ELECTRICAL PANEL: ELECTRICAL SWITCHGEAR WITH 200- OF MAIN POWER CORD
- - PANEL PLATE: BRACKET ONLY FOR PANEL AND HYD LEVERS
- - PAINT: GRAPHITE GRAY (12-00636) W/ YELLOW GUARDING
- - GUARD PAINT: SAFETY YELLOW
- - SIGNPLATES: GENERAL SIGNPLATES INCLUDED
- - IDLER PAINT: POWDER COATED SUPERIOR ORANGE
- - PATENTS: UNIT INCLUDES PATENTS
- - OWNER-S MANUAL: (1) COPY IN ENGLISH INCLUDED FOR OPERATION AND MAINTENANCE
- ADDED OPTIONS: INCLUDED IN PRICE
- - ROCK BOX HOPPER INCLUDED: STANDARD ROCK BOX BOLT ON
