2015 Pioneer Crusher - Jaw CS2650
Fields with asterisks * are required.
Print This Page
Description
JAW CRUSHING PLANT
Inventory ID
E00062753
Serial
414616
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00062753
- Status: On Rent
- Make: Pioneer
- Model: CS2650
- Year: 2015
- Serial#: 414616
Notes

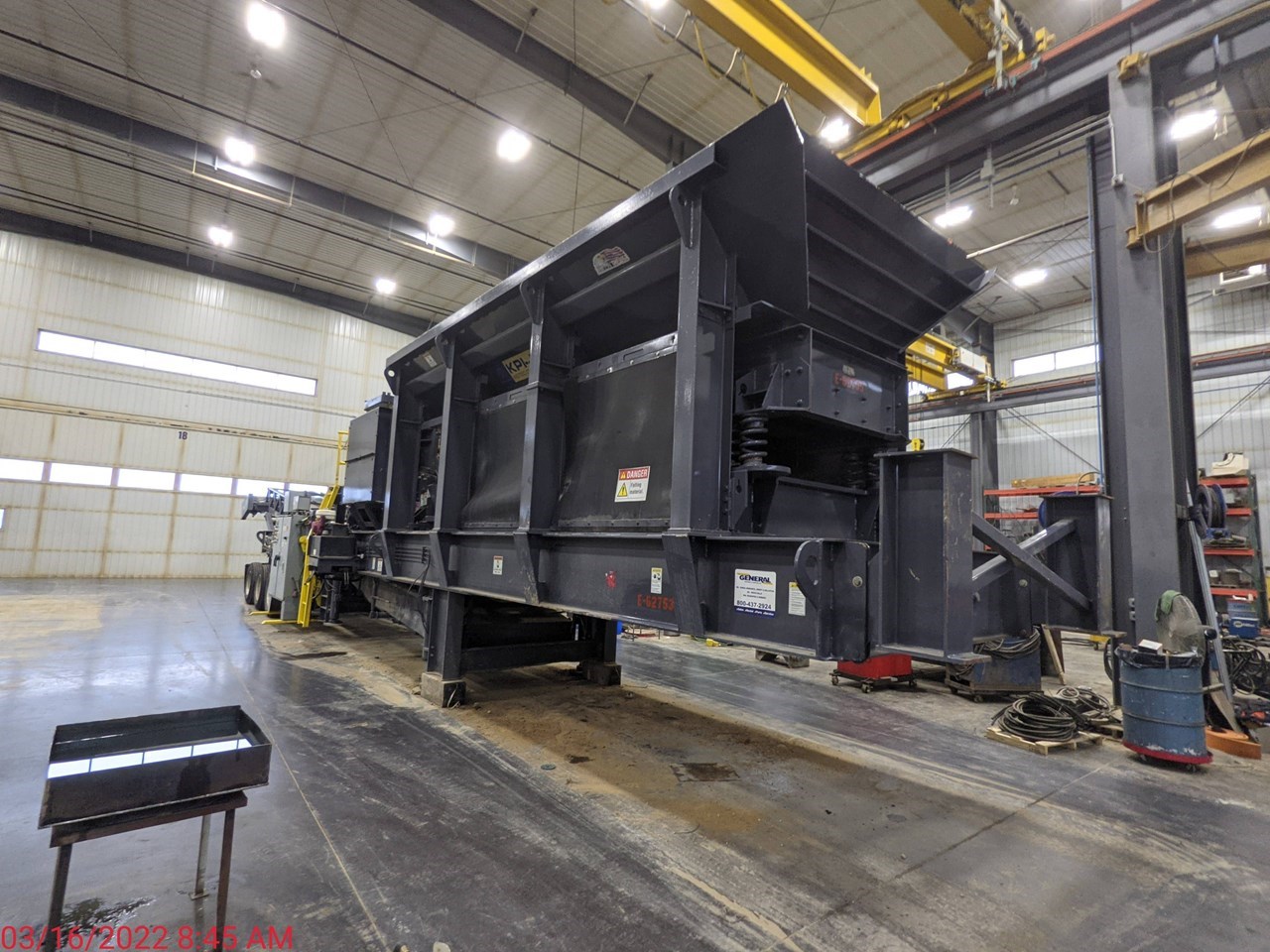

- CS2650 ELECTRIC PORTABLE JAW PLANT WITH VIBRATING FEEDER GRIZZLY EQUIPPED AS:
- - JAW CRUSHER - 2650 WITH HOPPER - BYPASS CHUTE UNDER 5- STEP-DECK
GRIZZLY OPERATORS PLATFORM WITH LADDER MOTOR MOUNT AND
V-DRIVE BELT FOR POWER UNITWITH SAFETY TYPE V-BELT GUARD
- CRUSHER POWER 150 HP TEFC ELECTRIC MOTOR 1200 RPM AUTO ADJUST VS.
MANUAL ADJUSTING TENSION RODS WITH 1 1/2 HP ELECTRIC
HYDRAUIC/POWER PACK HYDRAULIC JACKS - (4) 18" STROKE WITH 8 HP GAS
POWER PACK FOR PLANT RAISING AND LEVELING KING PIN SUPPORT
ASSEMBLE - FRONT FOLD DOWN LEGS.
- VIBRATING FEEDER - 50" X 20- WITH 2" ERIN FINGERS 3/4" AR 400 PAN DECK
LINER AND 40 HP 1800 RPM ELECTRIC MOTOR FEEDER TO MOUNT ON KING PIN
END OF PLANT PROVISION FOR SIDE DELIVERY CONVEYOR FOR MOUNTING
UNDER GRIZZLY PLANT IS SET UP WITH BY-PASS CHUTE SIDE DELIVERY CAN
BE FIELD INSTALLED IN PLACE OF BY-PASS CHUTE IF NEEDED.
- LOADING HOPPER FABRICATED WITH 3/4" A36PLATE APPROX 14- TRAVEL
HEIGHT 1/2" CLEARANCE BETWEEN VERTICAL HOPPER AND FEEDER
SIDELINER. HOPPER INTERFACE BETWEEN HOPPER WALL AND FEEDER PAN TO
BE APPROX. 1" HEIGHT CLEARANCE IN THE REAR AND TAPER TO 1 3/4"
TOWARD THEGRIZZLY BARS.

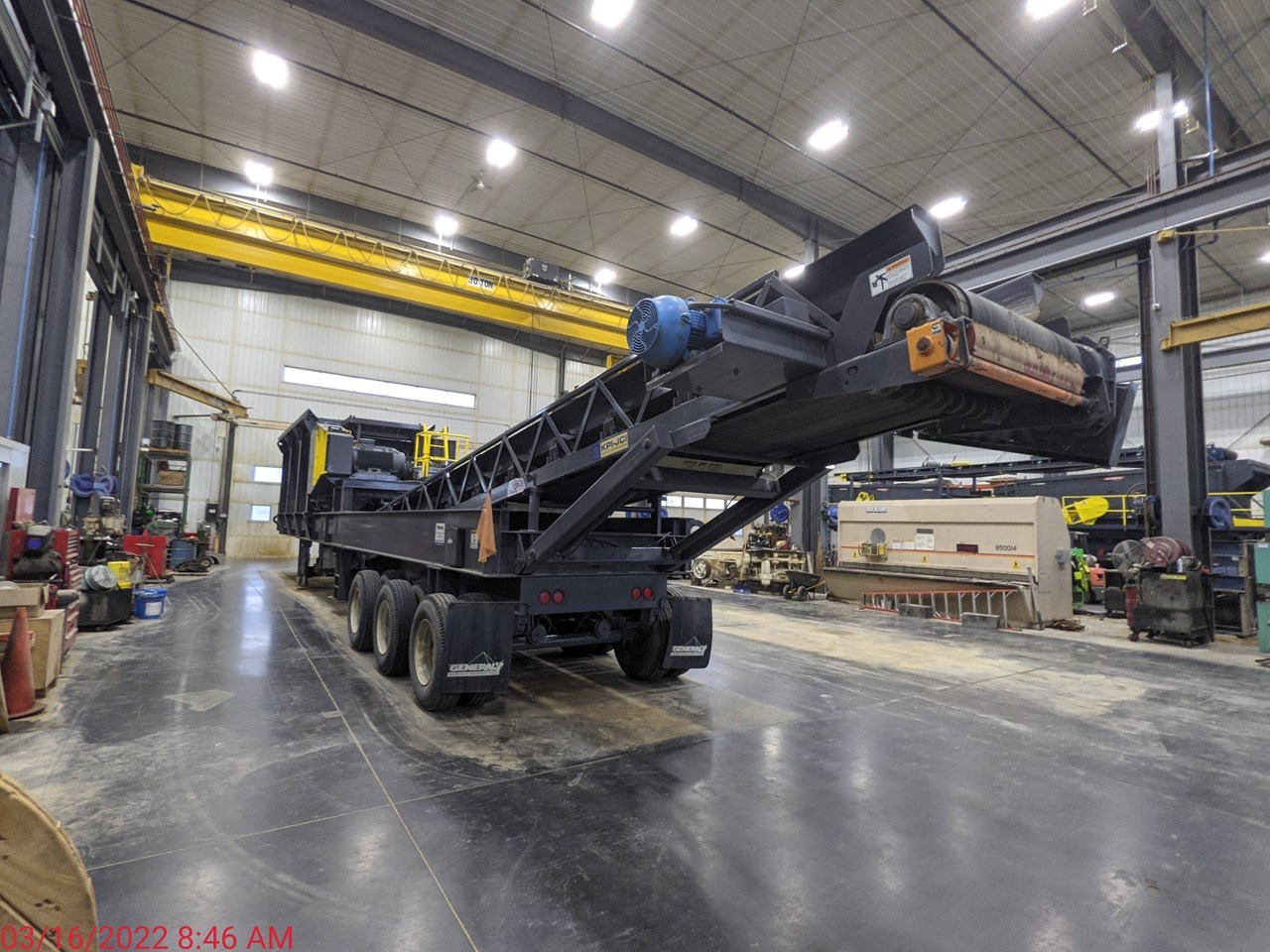

- END DELIVERY CONVEYOR 48" X 50- WITH HYDRAULIC RAISE AND LOWER
WITH APPROX. 15- 5" MAX PRECISION CEMA C 5" DIAMETER 20 DEGREE LOW
PROFILE IDLERS IMPACT BED BELT GRADE 1 3-PLY 330PIW 1/4" X 1/16" COVERS
WITHVULCANIZED BELT SPLICE 9- BETWEEN HEAD PULLEY AND REAR AXLE
APPROX. FULL LENGTH SKIRTING WITH FLASHING TO EXTEND MIN. OF 6- PAST
CRUSHER. JAW HOPPER LID TO HAVE EXPANDED METAL WITH EQUALLY
SPACED SUPPORT PLATE.
- SEMI-TRAILER WITH TRIPLE REAR AXLE AND FIFTH WHEEL PIN TIRES -
PNEUMATIC - 12 REAR WHEEL 11:00 X 22.5 DUAL MOUNTED AIR BRAKES ON
REAR AXLES TRAVEL LIGHT PACKAGE INCLUDES MUDFLAPS.
- PAINTED CEDAR RAPIDS STONE GRAY
ELECTRICAL SWITCHGEAR:
-60 X 60 ENCLOSURE LEG KIT AND 400 AMP MAIN WITH OPERATOR-UPPER RH
- SPECIAL PANEL LIFTER DESIGN FOR PORTABILITY INTEGRATED INTO CORD
CAGE
- ALLEN BRADLEY NEMA RATED FVNR STARTERS WITH CIRCUIT BREAKERS
- 30 HP JAW DISCHARGE
- 20 HP SPARE 1 WITH 60 AMP RECEPTACLE
- 20 HP SPARE 2 WITH 60 AMP RECEPTACLE
- 7.5 HP GRIZZLY THRUS REJECT WITH 20 AMP RECEPTACLE
- 3 HP JAW ADJUST - 2 POSITION SWITCH IN PANEL DOOR
- ABB SOFT STARTER (200 HP) WITH INTEGRAL BYPASS CONTACTOR
- ABB VFD WITH INTEGRAL LINE CONTACTOR LINE REACTOR RUN/PROGRAM
- 5 KVA TRANSFORMER WITH 20A 110V SERVICE OUTLET
- ALL BUTTONS IN DOOR WITH WIRELESS REMOTE CONTROL FOR VFD
START/STOP SPEED UP/DOWN ESTOP SAFETY STARTUP HORN (MANUAL)
E-STOP
- 100- OF POWER CORD - S/N#-S OF PLANT:
JAW VANGUARD PORTABLE PLANT S/N# 414616
JAW VANGUARD UNIT S/N# 414617
FEEDER VIBRATING S/N# 414618 - - GUARDING FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
