2018 Superior Crusher - Cone P300RD
Fields with asterisks * are required.
Print This Page
Description
P300 REAR DISCHARGE
Inventory ID
E00052152
Serial
1196921
Machine Location
Details
- Inventory ID: E00052152
- Status: On Yard
- Make: Superior
- Model: P300RD
- Year: 2018
- Serial#: 1196921
Notes

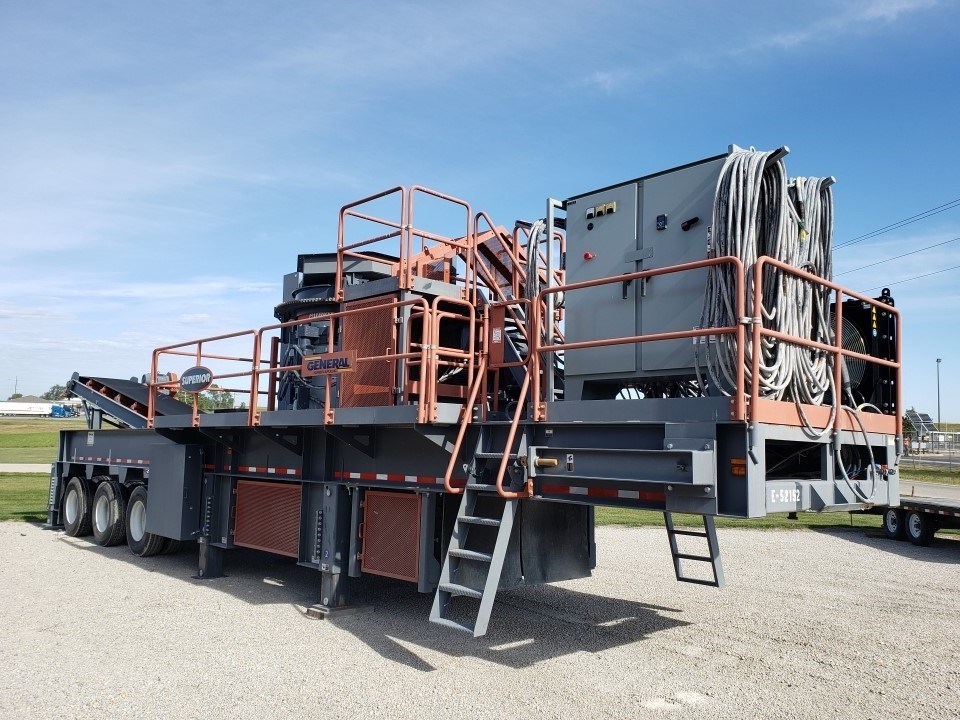

- 2018 SUPERIOR P300RD REAR DISCHARGE CONE PLANT EQUIPPED AS PER BELOW:
- CARRIER CHASSIS:
- - MAIN FRAME CONSTRUCTED OF WIDE FLANGE STRUCTURAL STEEL BEAMS
- - TRIDEM AXLE SPRING SUSPENSION WITH (12) 11X22.5 RADIAL TIRES STEEL RIMS
- - COMPLETE AIR BRAKE SYSTEM MUD FLAPS ON REAR AXLE TRAVEL LIGHTS WITH BRAKE
- AND DIRECTIONAL SIGNALS
- - FIFTH WHEEL HITCH
- - (2) SLIDE/SWING DOWN KING PIN SUPPORTS
- - (6) FIXED STRUCTURAL STEEL CRIBBING LEGS
- - GREASE PACKAGE CONSISTING OF 1-2 LOCATIONS FOR GREASING ENTIRE PLANT
- PATRIOT P300 CONE CRUSHER:
- - 300 HP 1200 RPM 480V/3PH/60HZ
- - MAIN FRAME ONE PIECE CAST STEEL MAIN FRAME ASSEMBLY AR STEEL
- LINERS 4340 FORGED STEEL SHAFT BRONZE SEAT LINERS WTIHRETENTION
- LIP BRONZE PIN BUSHINGS AND AST ARM GUARDS
- - ADJUSTMENT RING CAST STEEL ADJUSTMENTRING AND CLAMPING RING WITH INTERNAL
- THREADS (8) CLAMPING CYLINDERS (5) INDEXING PINS ADJUSTMENT MOTOR MOUNT
- (3) VIBRATION SENSORS DETECT ADJUSTMENT RING MOVEMENT
- - ADJUSTMENT ASSEMBLY FORGED STEEL DRIVE RING DRIVE RING SUPPORTS WITH MOLDED
- URETHANE WEAR PADS PLANETARY DRIVE UNIT WITH PINION HYDRAULIC DRIVE MOTOR
- (SPRING APPLIED BRAKE) (2) BOWL
- ADJUSTMENT SENSORS
- - BOWL ASSEMBLY CAST STEEL WITH EXTERNAL THREADS STEEL ADAPTER RING WITH
- THREADED RETENTION HARDWARE FITTED WITH MANGANESE STEEL LINER
- - HEAD ASSEMBLY CAST STEEL WITH FORGED STEEL HEAD BALL RAISED SEAT WITH WEAR
- INDICATOR GROOVE BRONZE UPPER AND LOWER BUSHINGS MOLDED URETHANE T-SEAL
- MANGANESE STEEL MANTLE
- - LINER CONFIGURATION STANDARD COARSE
- - BACKING LINERS REQUIRED POURED BACKING MATERIAL FOR INSTALLATION
- - MANGANESE CONTENT STANDARD 18% MANGANESE LINER
- - ECCENTRIC CAST DUCTILE IRON WITH BRONZE BUSHING
- - COUNTERWEIGHT CAST STEEL POURED LEAD WEIGHT AR STEEL COUNTERWEIGHT GUARD
- FORGED STEEL SPIRAL BEVEL GEAR MOLDED URETHANE U-SEALS
- - SOCKET ASSEMBLY FORGED STEEL SOCKET WITH BRONZE LINER
- - COUNTERSHAFT BOX CAST STEEL WITH BRONZE BUSHINGS FORGED STEEL COUNTERSHAFT
- AND SPIRAL BEVEL PINION GEAR
- - TRAMP RELEASE (6) HYDRAULIC CYLINDERS MOUNTED ROD END DOWN WITH PROTECTIVE
- BOOT COVERS RELIEF VALVE FOR TRAMP PRESSURE RELIEF SINGLE GAS CHARGED
- BLADDER ACCUMULATOR
- - DRIVEN SHEAVE 8-GROOVE SHEAVE WITH SPEED SENSOR CRUSHER SHEAVE V-BELT
- LUBRICATION SYSTEM FEED HOPPER COUNTERSHAFT BLOWER
- -24.8" CRUSHER SHEAVE 18" MOTOR SHEAVE = 870 RPM COUNTERSHAFT SPEED
- - A 20" MOTOR SHEAVE WOULD INCREASE COUNTERSHAFT SPEED TO 970 RPM (FINE CRUSH)
- - EQUIPPED WITH COUNTERSHAFT BLOWER
- HOPPERS AND CHUTES:
- - UNDER-CRUSHER GATHERINGHOPPER CONSTRUCTED OF 3/8" AR400 STEEL
- - DIRECTS MATERIAL ONTO THE REAR DISCHARGE CONVEYOR
- - ADJUSTABLE RUBBER FLASHING FULL LENGTH OF HOPPER
- - OVER-FLOW CHUTE CONSTRUCTED OF 1/4" MILD STEEL
- - DIRECTS OVER-FLOW MATERIAL FROM FEED BASKET ONTO THE REAR DISCHARGE CONVEYOR
- 42" REAR DISCHARGE CONVEYOR:
- - CLASS II DRIVE - 20 HP MOTOR V-BELT DRIVE SHAFT MOUNT REDUCER
- - STRUCTURAL STEEL CHANNEL MAIN FRAME
- - CAPACITY - 500 STPH OF 100 PCF MATERIAL
- - BELT SPEED -300 FPM
- - HEAD PULLEY - 14" DIAMETER CROWN FACE 3/8" HERRINGBONE LAGGED DRUM
- - TAIL PULLEY - 12" DIAMETER CHEVRON WING PULLEY
- - DODGE BEARINGS
- - MANUAL SCREW TAKE-UPS
- - LOAD AREA IDLERS - SUPERIOR SEAL SYSTEM
- - CARRY IDLERS -C5 20 DEGREES TROUGH LOW PRO STD. MOUNT SPACED 3.5- OC
- - RETURN IDLERS - C5 FLAT STEEL ROLLS
- - BELTING 3-PLY 3/16" X 1/16" 330 PIW
- - BELT SPLICE FACTORY VULCANIZED SPLICE
- - SUPERIOR EXTERRA PRIMARY BELT CLEANER
- HYDRAULICRUN-ON" JACKS:
- - (6) 6" X 18" HYDRAULIC CYLINDERS
- - COUNTERBALANCE VALVE LOCKING SYSTEM THAT REQUIRES NO PINNING
- - (6) MANUAL LEVER VALVES; (1) FOR EACH CYLINDER
- - 9 HP HONDA GASOLINE OVER HYDRAULIC PUMP
- WALKWAY:
- - 3/16" DIAMOND TREAD PLATE TWO-RAIL HAND RAIL TOE BOARD
- - INSTALLED ON BOTH SIDES OF CRUSHER TO ACCESS LUBE SYSTEM AND OBSERVATION
- PLATFORM
- - ELEVATED PLATFORM TO OBSERVE CRUSHER FEED AREA BOTTOM ENCLOSED WITH AREA
- GUARDING
- - (2) STEEP ANGLE STAIR ASSEMBLIES TO GAIN ACCESS TO LOWER PLATFORM
- HYDRAULIC POWER UNIT ASSEMBLY:
- - POWER UNIT FABRICATED STEEL 50 GALLON TANK SKID TYPE MOUNTING FRAME TOP
- COVER MOUNTED MOTOR SUBMERGED GEAR TYPE PUMP SOLENOID CONTROL VALVES
- FILTER WITH REPLACEABLE CARTRIDGE BLADDER CLAMPING CYLINDER ACCUMULATOR
- REMOVABLE COVER TO PROTECT POWER UNIT
- - CONTROLS BASIC STANDALONE SYSTEM WITH OPERATOR CONTROL BOX INCLUDES MAIN
- ADJUSTMENT AND PRESSUREMONITORING
- PACKAGE LUBE ASSEMBLY:
- - 10HP 1800 RPM 480V/3PH/60HZ
- - LUBE TANK SKID MOUNTED 80-GALLON CAPACITY HINGED TOP COVER TO VIEW RETURN
- OIL LINE 6KW LUBE TANK HEATER SIGHT GUAGE AND LOW OIL LEVEL SWITCH
- - OIL PUMP SUBMERGED GEAR TYPE 38 GPM FLOW 20 MICRON FILTER REPLACEABLE
- CARTRIDGE FILTER BYPASS RELIEF VALVE (2) PRESSURE DIFFERENTIAL SWITCHES FOR
- A DIRTY FILTER WARNING AND BYPASS ALARM
- - AIR COOLER AIR TYPE LUBE SYSTEM OIL COOLER RELIEF VALVE AND RELATED COOLER
- PRICING
- - SENSORS RELAY SWITCH SENSORS CRUSHER DRAIN LINE TEMPERATURE READOUT SUPPLY
- OIL TEMPERATURE READOUT LUBE TANK TEMPERATURE READOUT ALL SENSORS AND
- SWITCHES WIRED TO MOUNTED TERMINALBOX
- - DRIVE BELT PACKAGE BELTED DRIVE PACKAGE INCLUDING DRIVE MOTOR SHEAVES AND
- V-BELTS
- - COLD WEATHER KIT INCLUDING ADDITIONAL RELAYS FOR PUMPS AND HEATERS ADDITIONAL
- TANK HEATER
- - AUTOMATION VANTAGE AUTOMATION WITH 125-TETHER
- ADDITIONAL INFORMATION:
- - PAINT (1) COAT PRIMER (1) FINISH COAT ENAMEL - WINDOW GRAY (RAL 7040) AND
- GRAPHITE GRAY (RAL 7024) ON THE CONE CARRIER PAINTED GRAPHITE GRAY (RAL
- 7024) WITH ORANGE GUARDING LADDERS AND HANDRAILS
- - GUARDING FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
- MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
- INSPECTED.
- ELECTRICAL SWITCHGEAR P300RD AS DESCRIBED BELOW:
- -NEMA 4 ENCLOSURE CORD CAGE LEG KIT SETS ON GROUND FOR OPERATIONS SETS
- OVER KINGPIN FOR TRANSPORT. MAIN BREAKER WITH LOCKABLE OPERATOR.
- - 300 HP SOFT STARTER
- - FVNR 10 HP LUBE MOTOR
- - FVNR 10 HP HYDRAULIC PUMP
- - FVNR 5 HP COOLING FAN
- - FVNR 1/3 HP COUNTERSHAFT BLOWER
- - 6 KW 480V 3PH TANK HEATER FEED BREAKER
- - 6 KW 480V 3 PH HYD TANK HEATER FEED BREAKER (MAY NOT BE ONE)
- - FVNR 20 HP CRUSHER DISCHARGE (ON PLANT)
- - FVNR 20 HP (INTERLOCKED) FEED CONVEYOR WITH 60 AMP HUBBELL RECEPT
- - FVNR 20 HP RETURN CONVEYOR WITH 60 AMP HUBBELL RECEPT
- - 100FT REMOTE PENDANT E-STOP HOUR METER SAFETY START HORN.
- - VANTAGE AUTOMATED PLC INTERFACE FOR CRUSHER CONTROL AND MONITORING.
- - 100- POWER CORD
- GUARDING - WE DO NOT WARRANT THAT MANUFACTURERS›¼À™ GUARDING WILL MEET ALL LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE GUARDING CHECKED BY A LOCAL INSPECTOR PRIOR TO STARTUP OF EQUIPMENT OPERATIONS CORRECTIVE ACTIONS AND ASSOCIATED EXPENSE ARE THE RESPONSIBILITY OF THE END USER.
