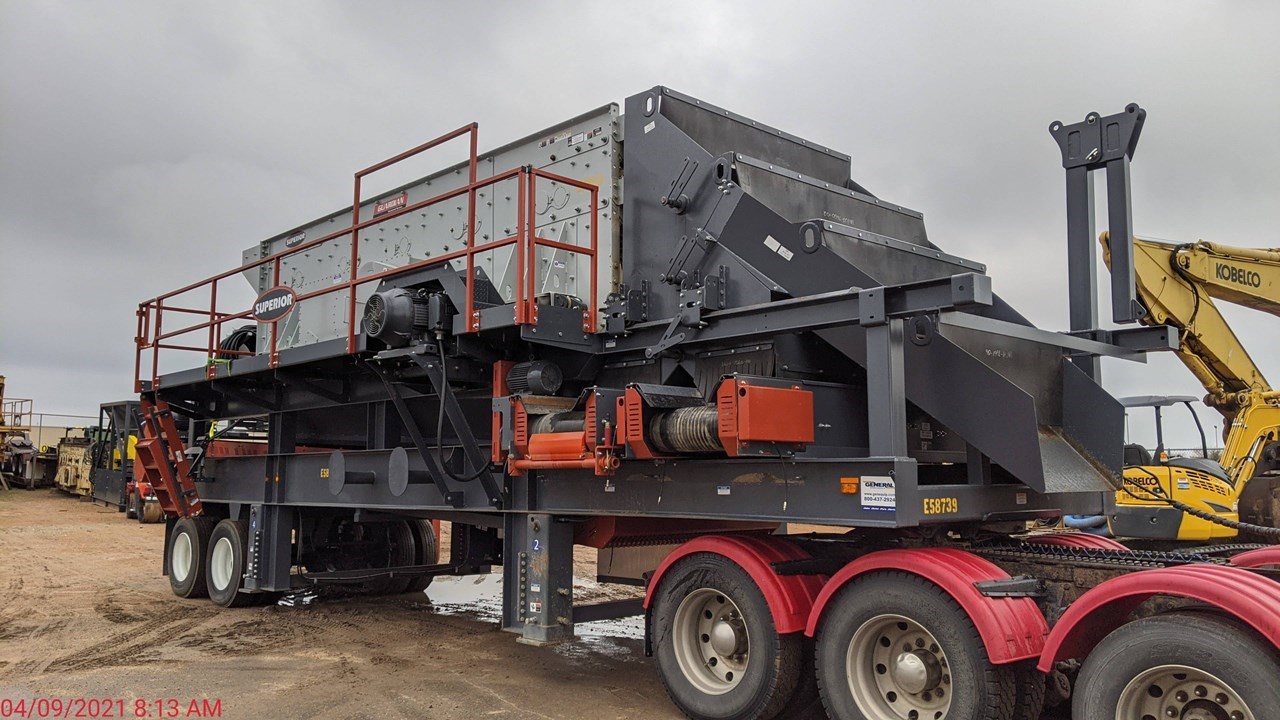

2020 Superior Screening Plant 7203-38

Fields with asterisks * are required.
Print This Page
Description
SUPERIOR SCREEN PLANT
Inventory ID
E00058739
Serial
1724715
Machine Status
  • Email a friend

    Send to a Friend

    Fields with asterisks * are required
  • Loan Calculator

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Details

  • Inventory ID: E00058739
  • Status: On Rent
  • Make: Superior
  • Model: 7203-38
  • Year: 2020
  • Serial#: 1724715

Notes

  • SUPERIOR 7X20 3D SCREEN PLANT EQUIPPED AS DESCRIBED BELOW:

    CARRIER CHASSIS:
    - MAIN FRAME CONSTRUCTED OF WIDE FLANGE STRUCTURAL STEEL BEAMS
    - TANDEM AXLE WITH (8) 11X22.5 RADIAL TIRES
    - COMPLETE AIR BRAKE SYSTEM
    - MUDFLAPS ON REAR AXLE
    - TRAVEL LIGHTS WITH BRAKE AND DIRECTIONAL SIGNALS
    - FIFTH WHEEL HITCH
    - (4) FIXED STRUCTURAL STEEL CRIBBING LEGS
    - GREASE PACKAGE - CONSISTING OF 1-2 LOCATIONS TO GREASE ENTIRE PLANT
  • - SCREEN SIZE - 7-X20- THREE DECK TRIPLE SHAFT HORIZONTAL SCREEN
    - SLOPE ANGLE - SET AT TRUE HORIZONTAL [0 DEGREES]
    - MOVEMENT - HIGH G-FORCE SCREEN WITH ADJUSTABLE SPEED AND STROKE
    - BEARINGS - 190MM SPHERICAL ROLLER BEARINGS WITH 38 GEARS
    - SPRINGS - STANDARD COIL SPRINGS
    - SNUBBER - RUBBER SURGE SUPRESSION FOR SCREEN STABILITY
    - DRIVE - RIGHT HAND DRIVE [STANDARD]
    - MOTOR BASE - SLIDE ADJUSTMENT MOTOR BASE [LESS MOTOR]
    - BOLTS - HUCK BOLTED BODY
    - DISCHARGE LIPS - 4" DISCHARGE LIPS WITH 1/4" ARLINERS [STANDARD]
    - FEEDBOX - 24" FEEDBOX WITH 1/4" AR LINERS
    - INSPECTION PORTS - BOLT-ON INSPECTION PORTS AND SPRAY HOLE KNOCKOUTS
    - GUARDING - EASY ACCESS GUARD FOR V-BELT DRIVE WITH BUILT IN TENSIONER
    - SIDEPLATES - 5/16" SIDEPLATECONSTRUCTION WITH 1/4" REINFORCING PLATES
  • ADDITIONAL SPECIFICATIONS:
    - ELECTRIC MOTOR - ELECTRIC MOTOR NOT INCLUDED
    - PAINT - STANDARD SUPERIOR PAINT - WINDOW GRAY [RAL 7040] FOR SCREEN GRAPHITE
    - GRAY [RAL 7024] FOR BASE FRAME MOTOR BASE
    - VOLTAGE - 460V 3 PHASE 60 HZ
    - BASE FRAME - BASE FRAME NOT INCLUDED
    - SHAFT HOUSING PROTECTION - STANDARD MILD STEEL PROTECTION CLAMPED TO SHAFT
    HOUSING
    - SPRAY SYSTEM - SPRAY SYSTEM NOT INCLUDED
  • TOP DECK SPECIFICATIONS:
    - TOP DECK - HEAVY X-BRACE SINGLE CROWN DECK TO ACCOMMODATE 4- WIRE CLOTH MEDIA
    SECTIONS
    - SCREEN MEDIA - MEDIA NOT INCLUDED
    - DECK CROWN - STANDARD SINGLE CROWN DECK
    - TAKE UP - STANDARD TAKE UP RAILS
    - CROSS MEMBER PROTECTORS- CROSS MEMBER PROTECTION NOT INCLUDED
  • MIDDLE DECK SPECIFICATIONS:
    - MIDDLE DECK - HEAVY X-BRACE SINGLE CROWN DECK TO ACCOMMODATE 4- WIRE CLOTH
    MEDIA SECTIONS
    - SCREEN MEDIA - MEDIA NOT INCLUDED
    - DECK CROWN - STANDARD SINGLE CROWN DECK
    - TAKE UP - STANDARD TAKE UP RAILS
    - CROSS MEMBER PROTECTORS - CROSS MEMBER PROTECTION NOT INCLUDED
  • BOTTOM DECK SPECIFICATIONS:
    - BOTTOM DECK - DECK SET UP FOR END TENSIONED WIRE CLOTH IN LIEU OF STANDARD
    SIDE TENSIONED
    - SCREEN MEDIA - MEDIA NOT INCLUDED
    - DECK CROWN - STANDARD SINGLE CROWN DECK
    - TAKE UP - STANDARD TAKE UP RAILS
    - CROSS MEMBER PROTECTORS - CROSS MEMBER PROTECTION NOT INCLUDED
    - END TENSIONED DECK - DECK SET UP FOR END TENSIONED WIRE CLOTH IN LIEU OF
    STANDARD SIDE TENSIONED
  • ROLL AWAY SCREEN DISCHARGE CHUTES AND BLENDING GATES:
    - ROLLERS MOUNTED UNDER CHUTE SUPPORT STRUCTURE
    - CONSTRUCTED OF 1/4" MILD STEEL WITH 1/4" AR400 LINER
    - DESIGNED TO MOVE DISCHARGE CHUTES AWAY FROM THE SCREEN
    - ALLOWS FOR ACCESS TO THE FRONT OF SCREEN FOR MAINTENANCE
    - (4) FLOP GATES IN EACH CHUTE; EACH GATE MANUALLY OPERATED BY A
    LEVER OUTSIDE THEIR RESPECTIVE CHUTE
    - CONSTRUCTED OF 1/4" MILD STEEL WITH 1/4" ARLINERS
    - TOP DECK CHUTE DISCHARGES OVER THE KINGPIN END OF THE CHASSIS OR
    ONTO MIDDLE DECK CROSS CONVEYOR 25% BLENDING GATES:
    - MIDDLE DECK CHUTE DISCHARGES ONTO MIDDLE OR BOTTOM DECK CROSS
    CONVEYOR 25% BLENDING GATES
    - BOTTOM DECK CHUTES DISCHARGES ONTO BOTTOM OR "BLENDS UP" TO
    MIDDLE DECK CROSS CONVEYOR 25% BLENDING GATES
    - AR LINERS ON BOTH SIDES OF BLENDING GATES
    FINES HOPPER:
    - 1/4" AR PLATE STEEL SIDES
    - ADJUSTABLE RUBBER FLASHING FULL LENGTH
    (2) 30WIDE X 12- LONG REVERSING CROSS CONVEYORS:
    - STRUCTURAL STEEL CHANNEL MAIN FRAME
    - MOUNTED ON ROLLERS TO MANUALLY MOVE TO DISCHARGE FROM EITHER
    SIDE OF CHASSIS
    - RECEIVE OVERSIZE MATERIAL FROM RESPECTIVE MIDDLE AND BOTTOM
    DECKS
    -CLASS II HEAD END DRIVE
    - 7.5 HP MOTOR V-BELT DRIVE WITH DRIVE GUARD
    - DODGE SHAFT MOUNT REDUCER
    - HEAD PULLEY - 10" DIAMETER DRUM CROWN FACE 3/8" DIAMOND LAGGING
    - TAIL PULLEY - 10" DIAMETER WING PULLEY
    - SHAFTS - TURNED AND POLISHED
    - DODGE BEARINGS
    - MANUAL SCREW TAKE-UPS
    - CARRY IDLERS - C5 20 DEGREES TROUGH CHANNEL MOUNT SPACED 26" OC
    - BELTING - 3 PLY 3/16" X 1/16" PIW
    - BELT SPLICE: VULCANIZED
  • 60" X 29- FINES CONVEYOR:
    - STRUCTURAL STEEL CHANNELMAIN FRAME
    - CLASS II HEAD END DRIVE
    - 15 HP MOTOR V-BELT DRIVE
    - DODGE SHAFT MOUNT REDUCER
    - HEAD PULLEY - 12" DIAMETER DRUM CROWN FACE 3/8" HERRINGBONE
    LAGGING
    - TAIL PULLEY - 12" DIAMETER CHEVRON›¼® WING PULLEY
    - SHAFTS - TURNED AND POLISHED
    - DODGE BEARINGS
    - MANUAL SCREW TAKE-UPS
    - CARRY IDLERS - C5 20 DEGREES PICKING CHANNEL MOUNT SPACED
    APPROXIMATELY 27" OC
    - RETURN IDLERS - C5 FLAT ROLLS SPACED 10- OC
    - BELTING - 3 PLY 3/16" X 1/16" 330 PIW
    - BELT SPLICE VULCANIZED
  • WALKWAY:
    - 3/16" DIAMOND TREAD PLATE ALONG BOTH SIDES AND FEED END OF SCREEN
    - 3/16" DIAMOND TREAD PLATE ALONG DISCHARGE CHUTE FOR EASIER
    ACCESS TO THE
  • BLENDING GATES AND DISCHARGE CHUTE:
    -INCLUDES TOE BOARD AND TWO-RAIL HANDRAIL
    - WALKWAY ACCESS ON BOTH SIDES OF THE CHASSIS WITH (1) ACCESS LADDER
  • HYDRAULIC "RUN-ON" LEVELING JACKS:
    - (4) 6" X 18" HYDRAULIC CYLINDERS
    - COUNTERBALANCE VALVES BUILT INTO HEAD OF CYLINDER NO PINNING
    REQUIRED
    - (4) MANUAL LEVER VALVES; (1) FOR EACH CYLINDER
    - 9HP HONDA GASOLINE OVER HYDRAULIC PUMP UNIT
  • TOOLBOX:
    - CONSTRUCTED OF ALUMINUM AND MOUNTED ON CHASSIS
    - TWO LATCHES ON HINGED COVER
    - 18" X 18" X 36" LONG
  • CRIBBING STORAGE - MUST HAVE HORIZONTAL FINES CONVEYOR
    - STORAGE COMPARTMENT FOR CRIBBING MATERIALS DRIVE GUARD
    SCREEN CLOTH ETC
  • VOLTAGE:
    - REQUIRED POWER IS 480 V/ 3 PH / 60 HZ
  • GUARDING:
    - PRICE INCLUDES STANDARD GUARDING
    - CUSTOMER IS RESPONSIBLE TO HAVE GUARDING CHECK BY LOCAL
    INSPECTORS
    - PAINT: GRAPHITE GRAY
    - (1) COAT PRIMER; (1) FINISH COAT ENAMEL
  • OWNER-S MANUAL:
    - (1) COPY INCLUDED FOR OPERATION AND MAINTENANCE
  • INCLUDED OPTIONS:
  • EXTENDED FRONT WALKWAY:
    - 3/16" DIAMOND TREAD PLATE ALONG DISCHARGE CHUTE FOR EASIER
    ACCESS TO THE BLENDING GATES AND DISCHARGE CHUTE
    - INCLUDES TOE BOARD AND TWO-RAIL HANDRAIL
    - WALKWAY ACCESS ON BOTH SIDES OF THE CHASSIS
  • AES ELECTRICAL SWITCHGEAR FOR 7203 SCREENING PLANT:
    - 50 HP SCREEN
    - 15 HP UNDERSCREEN CONVEYOR
    - 7.5 HP CROSS 1
    - 7.5 HP CROSS 2
    - 5 HP SIRC TO 20 AMP RECEPTACLE
    - (2) 20 HP SPARE SIZE #2 TO 60 AMP RECEPTACLES
    - (1) 60 AMP FEED BREAKER TO 60 AMP RECEPTACLE
    - (1) 100 AMP FEED BREAKER TO 100 AMP RECEPTACLE
    - BUTTONS ON DOOR PANEL STAND TRANSPORTS ON PLANT ON GROUND FOR
    OPERATION
    - HOUR METER E-STOP SAFETY START HORN (MANUAL)
    - 100FT POWER CORD AND 1/0 GROUND
