2021 Other Feeder 4218DBF
Fields with asterisks * are required.
Print This Page
Description
FABTEC BELT FEEDER
Inventory ID
E00060769
Serial
BF-42-42-405-21
Machine Location
Details
- Inventory ID: E00060769
- Status: On Yard
- Make: Other
- Model: 4218DBF
- Year: 2021
- Serial#: BF-42-42-405-21
Notes

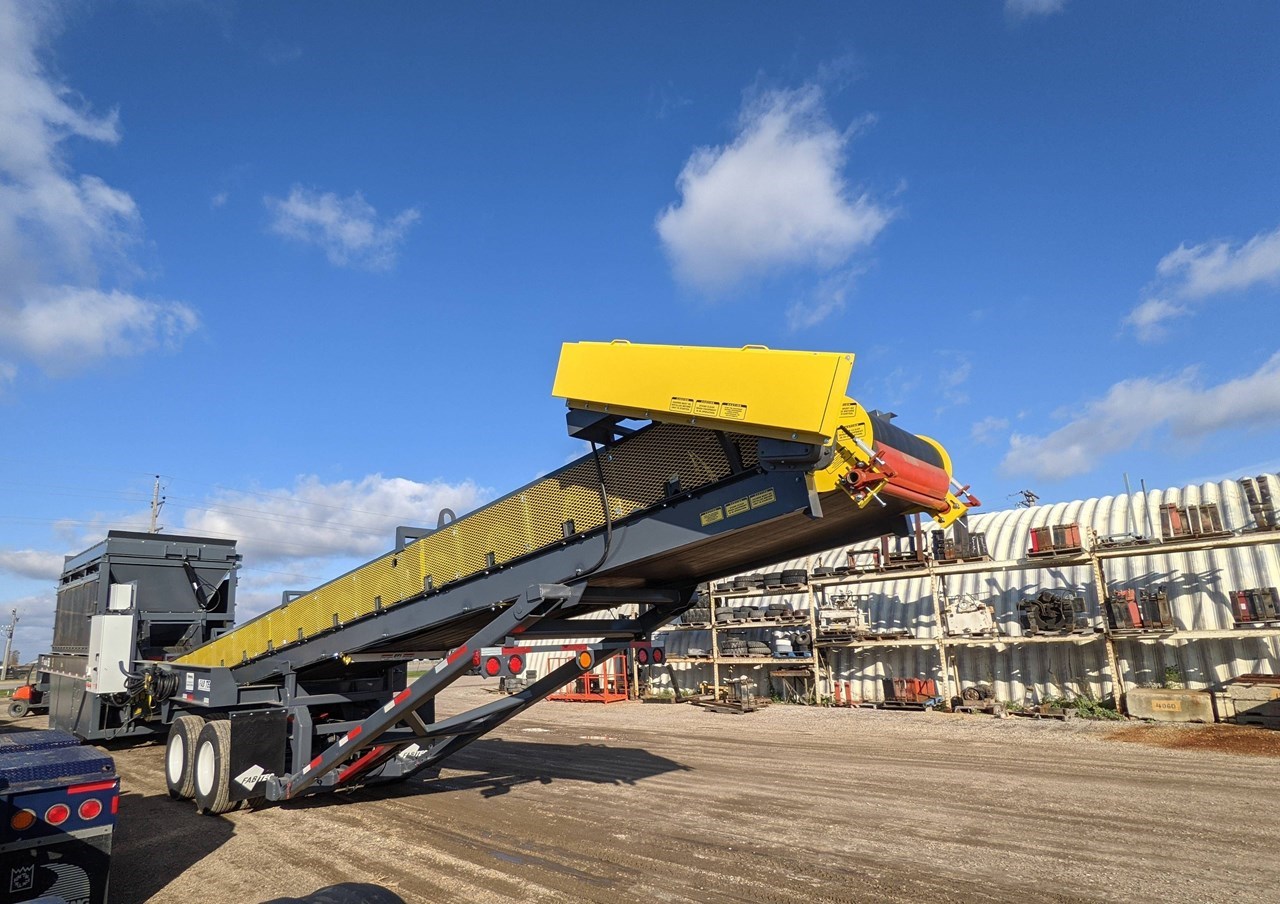

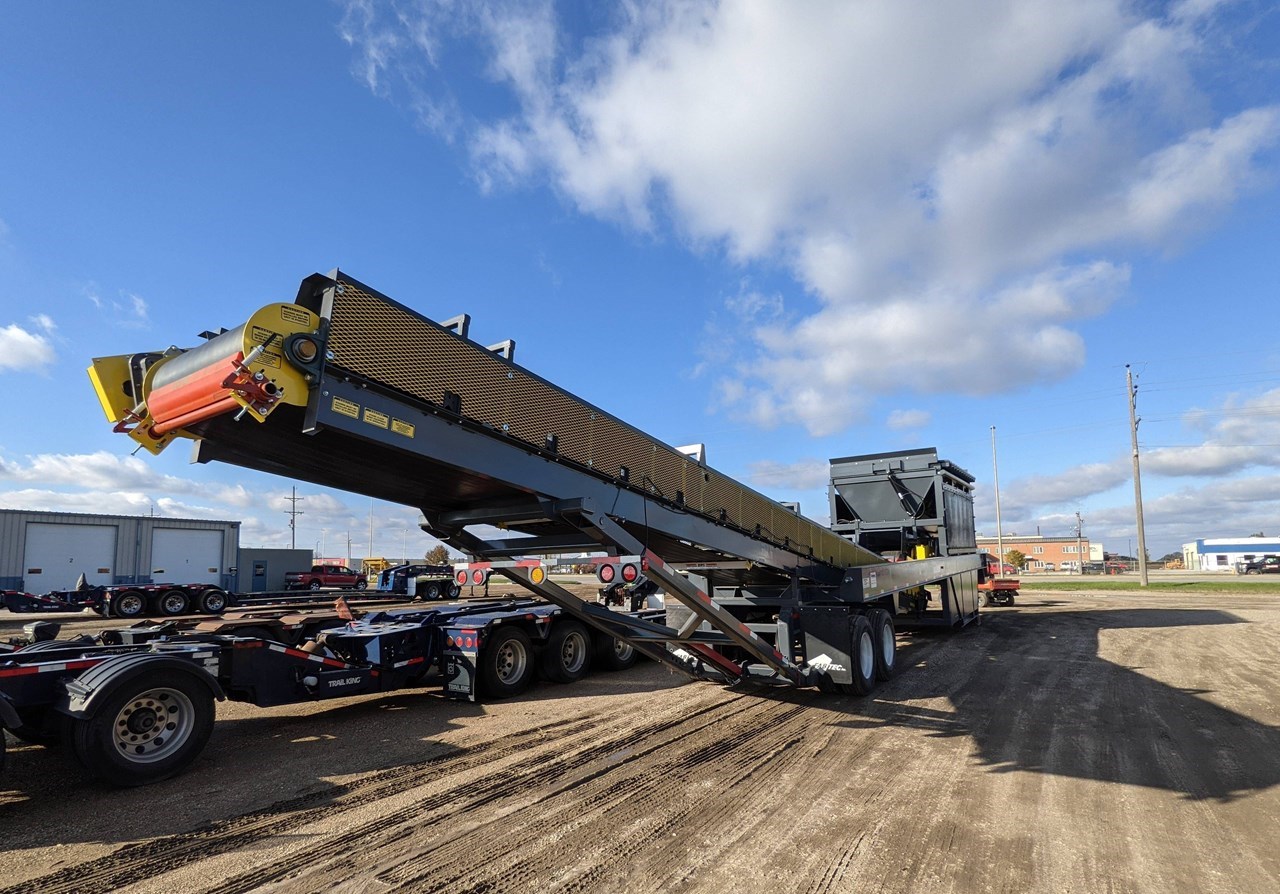

- PORTABLE 42" X 18- DOUBLE BELT FEEDER WITH 42" ADJUSTABLE DISCHARGE CONVEYOR EQUIPPED AS PER BELOW:
- NEW SET ON GROUND DESIGN
- BELT SPEED 20 TO 60 FPM 150 TO 900 TPH
- 42" X 20- BELT FEEDER:
- - TOSHIBA 25 HP TECOMOTOR
- - DOUBLE REDUCTION FALK 5215 REDUCER AND NO. 140 MARTIN SPROCKETS
- - DODGE SCM BEARINGS AND 2 15/16" SHAFTS
- - 16" VULCANIZED LAGGED HEAD PULLEY AND SELF-CLEANING WING TAIL PULLEY
- - CLOSE SPACING CEMA C5 STEEL ROLLERS
- - 3 PLY BELT 1/4" COVER
- 42" X 50- DISCHARGE CONVEYOR WITH ADJUSTABLE STACKING HEIGHT 8- TO 20-:
- - TOSHIBA 20 HP TEFC MOTOR
- - 5215 FALK SHAFT MOUNT REDUCER
- - IMPACT IDLERS IN FEED AREA
- - 2 15/16" HEAD SHAFT 2 15/16" TAIL SHAFT DODGE SCM BEARINGS
- - 16" VULCANIZED LAGGED HEAD PULLEY AND 14" SELF-CLEANING WING TAIL PULLEY
- - IMPACT IDLERS IN FEED AREA THEN 36" SPACING ON CEMA C SEALED IDLERS
- - 3 PLY BELT 1/4" COVER
- 8- X 18- - 3/8PLATE FEED RELIEVED HOPPER 20 CYD CAPACITY
- - RELIEF SHELF ABOVE BELT
- - GE SYLE EXTRA CAPACITY DESIGN
- - CANOE LINER FLASHING
- HEAVY DUTY SELF RELIEVING HYDRAULIC DUMP GRIZZLY:
- - GRIZZLY BARS 1" X 7" FB AND 2 1/2" OROUND BAR AT5 1/2" SPACING
- - 2 1/2" O C1045 SELF-RELIEVING GRIZZLY BARS
- - 10 HP ELECTRIC OVER HYDRAULIC POWER PACKAGE
- - 4" BORE 42" STROKE CYLINDERS
- - HYDRAULIC TANK WITH FILTER PROTECTION
- - SPECIAL DESIGNED GRIZZLY WITHEVERY OTHER BAR RELIEVED
- - OPTIONAL REVERSIBLE GRIZZLY
- PANEL IN DESIGNATED AREA ON DROP AREA OF CARRIER:
- - 3/16" PLATE
- - 1/4" FLAT BAR STIFFNERS
- - ROAD SIDE TO BE BOLT ON FOR MAINTENANCE
- TANDEM AXLE CARRIER 16" WF BEAMS:
- - 9700 SERIES HUTCH SUSPENSION
- - 22 500# AXLES TEN HOLE BUDD WHEELS 11:00R X 22.5 TIRES
- - HEAVY DUTY GROUND SUPPORT STANDS
- - AIR BRAKES LED BRAKE LIGHTS LED MARKER LIGHTS LED STROBE LIGHT REFLECTIVE
- TAPE AND MUD FLAPS
- - NEW DESIGN TO INCREASE GROUND CLEARANCE FOR TRANSPORTATION
- - DESIGNED TO SET ON GROUND FOR OPERATION
- OPTIONS INLCUDED:
- FABTEC PLANT MOUNTED HYDRAULIC STABILIZING SYSTEM WITH EXTRA LONG CABLE TOREACH BATTERIES ON TRUCKS: (NON RUN-ON:
- - 12V HYDRAULIC PACKAGE WITH SAFETY-LOK CIRCUIT
- - 70 000 LB. CAPACITY HYDRAULIC LEGS WITH HEAVY DUTY FOOT PADS
- - CABLE AT FRONT OF CHASSIS TO HOOK UP TO BATTERIES FOR OPERATION
- VULCANIZE SPLICE:
- - FACTORY VULCANIZE SPLICE BOTH 42" BELTS
- BELT WIPERS:
- - QTY. (2) 42" SUPERIOR X-TERRA BELT SCRAPERS
- GRIZZLY:
- - REVERSIBLE GRIZZLY TO DUMP ON EITHER SIDE
- RUBBER CURTAINS:
- - REMOVABLE 2-PLY RUBBERCURTAINS
- HYDRAULIC STRUT STYLE LIFT FOR 42" DISCHARGE CONVEYOR:
- CONSTRUCTION:
- - TUBE-IN-TUBE DESIGNED WITH 1 15/16" WELDED BUSHINGS AND PINS
- - ARM MOUNTS ON HEAVY DUTY ANGLE FRAME
- HYDRAULICS:
- - (2) CYLINDERS ON HEAVY DUTY CYLINDER MOUNTS AND COUNTER-BALANCE VALVE
- - SPX 12 VOLT POWER UNIT WITH PUMP CONTROL VALVE AND 10- PENDANT
- ELECTRICAL SWITCHGEAR PANEL EQUIPPED AS PER BELOW:
- - 48X36 HOFFMAN ENCLOSURE WITH 100 AMP MAIN WITH OPERATOR - LOWER RH
- - ABB 25 HP VFD BELT FEEDER
- - NEMA RATED FVNR STARTERS WITH CIRCUIT BREAKERS
- - 25 HP FEEDER DISCHARGE CONVEYOR
- - 20 HP SPARE WITH 60 AMP RECEPTACLE
- - 10 HP HYDRAULIC PUMP
- - E-STOP SAFETY STARTUP HORN
- - STD CONTROL POWER TRANSFORMER
- - PANEL HEATER
- - CONTROL BUTTONS IN DOOR - LOWER LH
- - WIRELESS REMOTE FOR VFD START/STOP SPEED UP/DOWN GRIZZLY DUMP CYCLE
- - DESIGNED TO SET ON PLANT FOR OPERATION
- - ELECTRICAL SWITCHGEAR WITH 150 OF POWER CORD.
- GUARDS AND PAINT:
- - SAFETY GUARDS SANDBLASTED CHASSIS RUST INHIBITOR PRIMER AND TWO FINISH
- COATS OF PAINTED INCLUDED - PAINTED GRAPHITE GREY WITH YELLOW GUARDS
- - GUARDING - WE DO NOT WARRANT THAT OUR GUARDS WILL MEET ALL
- LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE THEM
- CHECKED BY A LOCAL INSPECTOR
