2022 Superior Conveyor - Transfer 36X70STSS-TRL
Fields with asterisks * are required.
Print This Page
Description

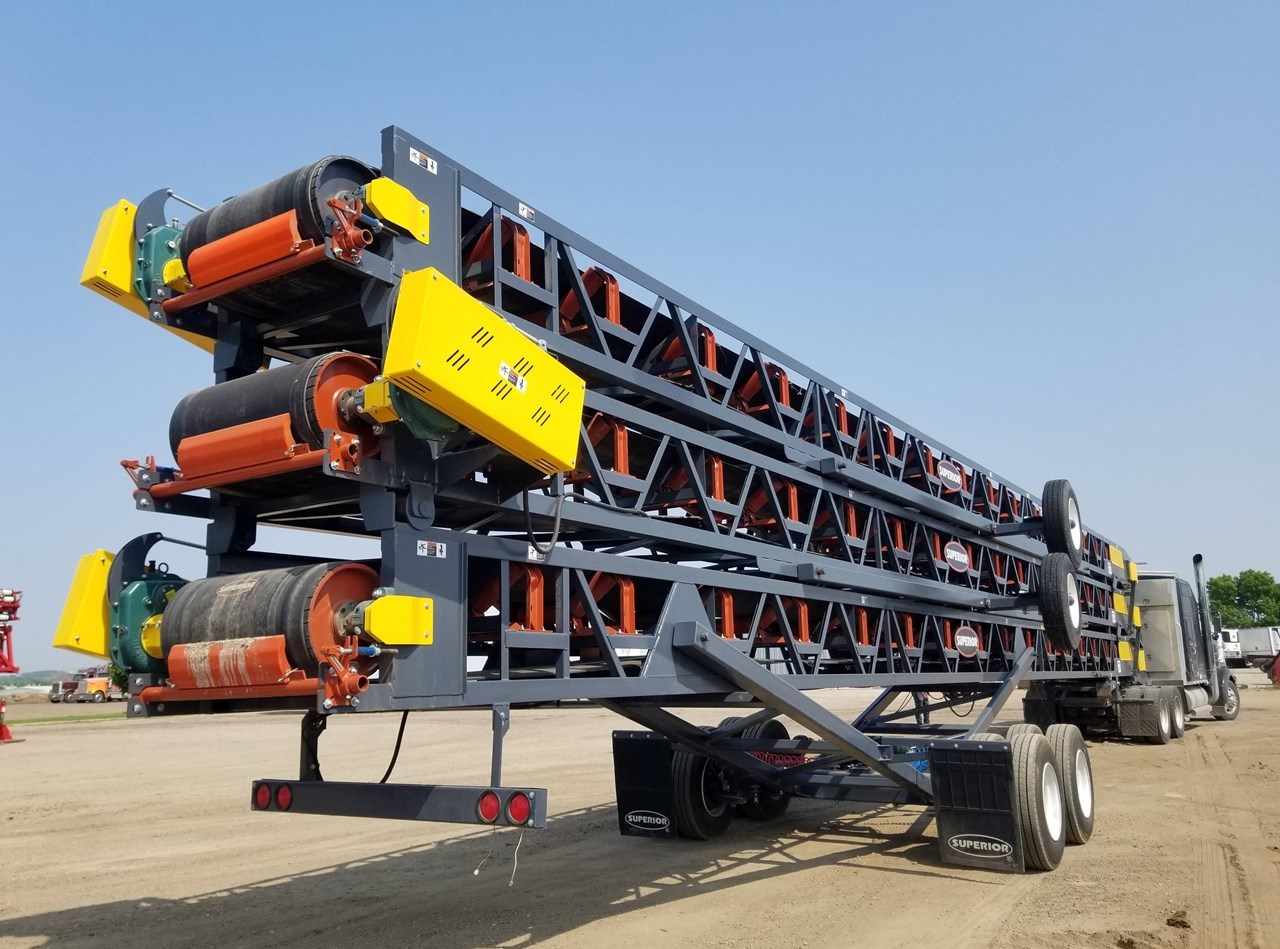

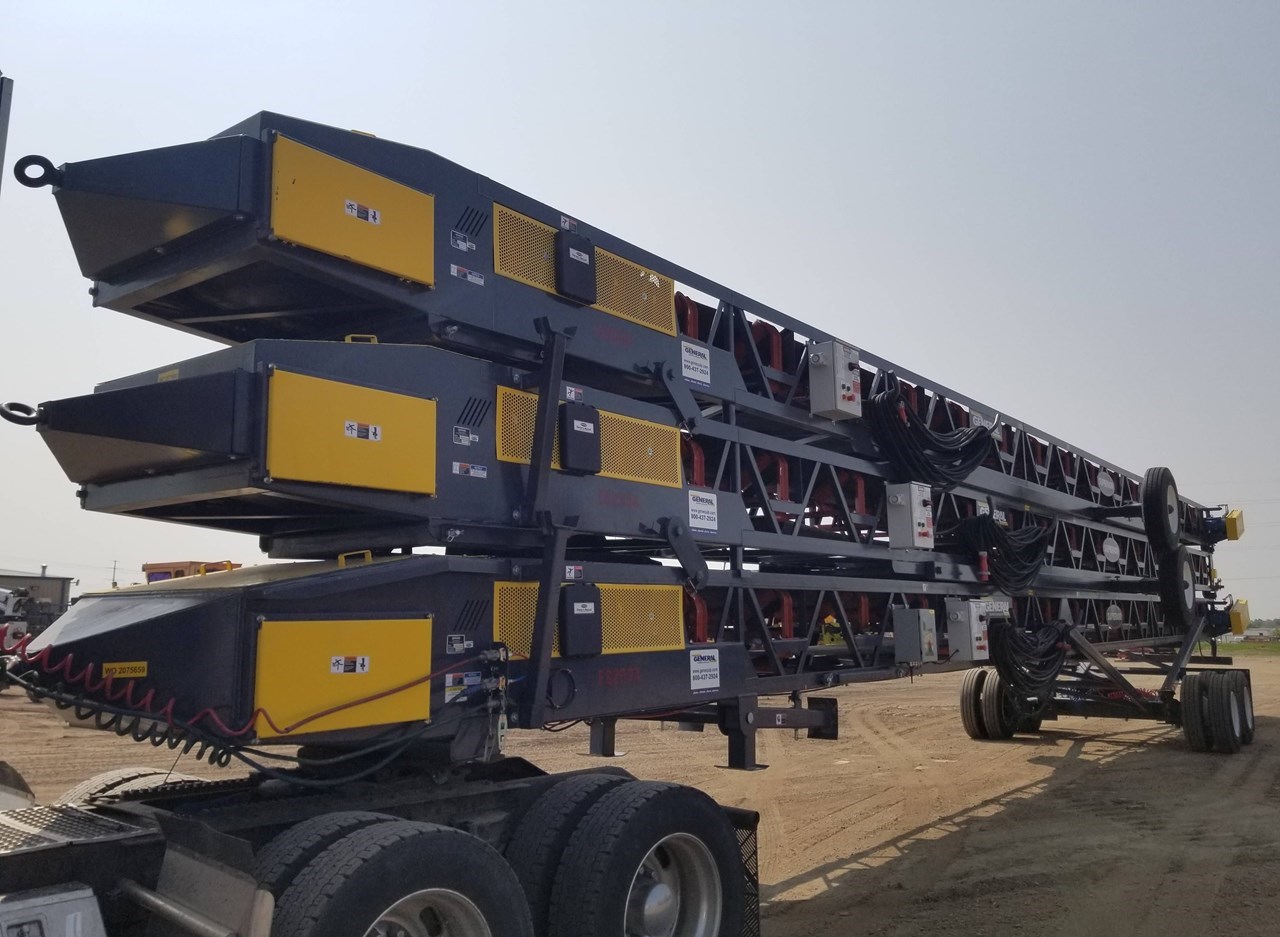

SUPERIOR SLIDE-STAC CONVEYOR
Inventory ID
E00062933
Serial
2075659
Machine Location
Details
- Inventory ID: E00062933
- Status: On Yard
- Make: Superior
- Model: 36X70STSS-TRL
- Year: 2022
- Serial#: 2075659
Notes
- SUPERIOR 36" X 70- SLIDE STAC SYSTEM EQUIPPED AS PER BELOW:
- CONVEYOR FRAME - NO TOP CROSS LATTICES:
- TRAILER UNIT
- MAIN FRAME: 30" DEEP TRUSS
- CHORD ANGLES: 4" X 4" X 5/16"
- LATTICE MEMBERS: 2" X 2" 3/16" - MIDDLE UNIT AND TOP UNIT:
- MAIN FRAME: 30" DEEP TRUSS
- CHORD ANGLES: 4" X 4" X 1/4"
- LATTICE MEMBERS: 2" X 2" X 3/16"
- ROLLER ASSEMBLY: SINGLE SET ON HEAD END FOR EASY LOADING AND UNLOADING - DRIVE SPECIFICATIONS:
- DRIVES: CLASS I HEAD END
- GEAR REDUCERS: DODGE SHAFT MOUNT
- BACKSTOPS: INCLUDED
- MOTORS: 25 HP 1800 RPM TEFC
- V-BELT DRIVE: WITH DRIVE GUARD
- CAPACITY: 750 STPH OF 100 PCF MATERIALS 25 DEGREE SURCHARGE (90% FINES 10%
SPEHERICAL LUMPS 7" MINUS)
- BELT SPEED:350 FPM
SUPERIOR PULLEYS CROWN FACED:
- DRIVE PULLEYS: 18" DIAMETER 3/8" HERRINGBONE LAGGED DRUM
- TAIL PULLEYS: 14" DIAMETER CEMA CHEVRON PULLEY
- SHAFTS: TURNED AND POLISHED
- BEARINGS: DODGE
- TAKE UPS: SCREW TYPE - PORTABLILITY:
- CONVEYOR SPLICE: ONE PIECE TRUSS FRAME
- TOWING EYE: PINTLE TYPE HITCH
TRAILER UNIT:
- V-TYPE AXLE: ADJUSTABLE TO 18 DEG. TELESCOPING AXLES WITH SWIVEL BOXES AND
(8) 11R22.5 RADIAL TIRES
- SUPPORT LEGS: ADJUSTABLE HEIGHT FOLDING LEGS
- FIFTH WHEEL: ON TRAILER UNIT
- BRAKES: COMPLETE AIR SYSTEM
- LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
- MUDFLAPS: INCLUDED
MIDDLE UNIT AND TOP UNIT:
- V-TYLE AXLE: ADJUSTABLE TO 18 DEG SWIVELING SINGLE 11-22.5 AG WHEELS AND
TIRES
- FOLD DOWN LEGS: FOLD DOWN LEGS FOR MID AND TOP UNIT - CONVEYOR COMPONENTS:
- BELTING: 3 PLY 3/16 X 1/16 330 PIW
- BELT SPLICE: FACTORY VULCANIZED BELT SPLICES
- BELT SCRAPER: SUPERIOR EXTERRA PRIMARY
- SUPERIOR IDLERS: CEMA C 5" DIA. ROLLS SEALED FOR LIFE BALL BEARINGS
- MOUNTING: RECESSED INSIDE FRAME
- LOAD AREA: 20 DEGREE TROUGH 16" SPACING
- TROUGH: 35 DEGREE ON 4- SPACING
- RETURNS: URETHANE RETURN ROLLERS
- SKIRTING EXTENSION: 5- LONG 10" HIGH HINGED WITH 1" ROUND BAR FOR MATERIAL
SHELF
- GATHERING TROUGH: 5- LONG WITH ADJUSTABLE RUBBER FLASHING - ADDITIONAL SPECIFICATIONS:
- POWER SUPPLY: 480V/3PH/60HZ
- PAINT: GRAPHITE GRAY WITH YELLOW GUARDING
- OWNERS MANUAL: 1 COPYINCLUDED FOR OPERATION MAINTENANCE AND PARTS
- ELECTRICAL: ELECTRICAL SWITCHGEAR AND 333- OF MAIN POWER CORD ON EACH
CONVEYOR - ADDITIONAL OPTIONS INSTALLED ON BOTTOM CONVEYOR:
- MODEL 200 BELT SCALE WITH POWER SUPPLY
- ANGLE SENSOR
- SCALE-BOX - - GUARDING: FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODED END USER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED.
