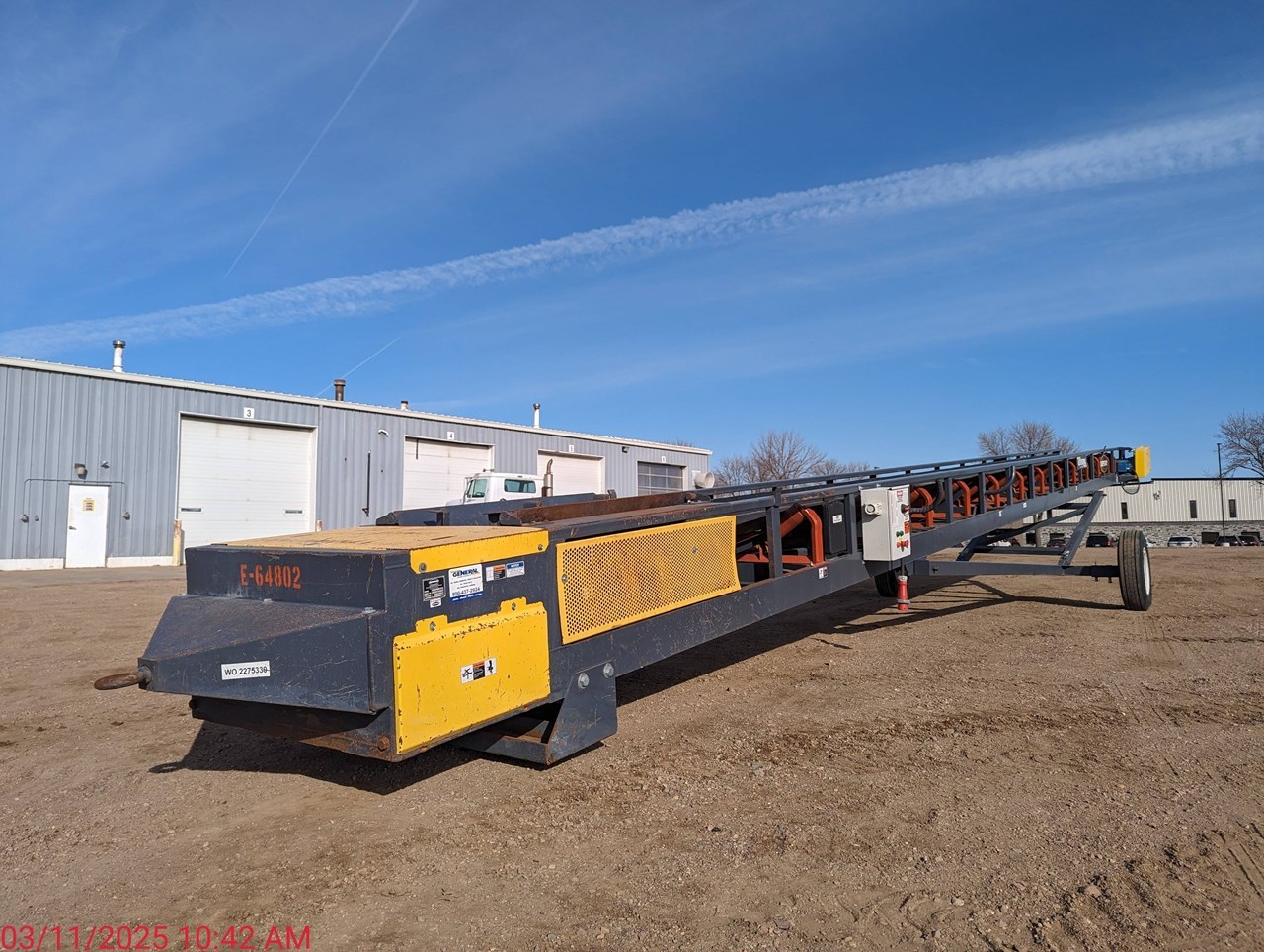

2023 Superior Conveyor - Stacking 36X60STKP
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR CONVEYOR
Inventory ID
E00064802
Serial
2275330
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00064802
- Status: On Rent
- Make: Superior
- Model: 36X60STKP
- Year: 2023
- Serial#: 2275330
Notes
- NEW RENTAL SUPERIOR 36›¼À X 60›¼À STACKABLE PLUS CONVEYOR EQUIPPED PER THE BELOW:
- CONVEYOR FRAME:
- MAIN FRAME ›¼À“ 8›¼À CHANNEL
- UPRIGHTS ›¼À“ 4›¼À CHANNEL
- TOP CHORD ›¼À“ 4›¼À X 2›¼À TUBING
- CONTAINERIZED ›¼À“ NOT INCLUDED - DRIVE SPECIFICATIONS:
- DRIVE ›¼À“ CLASS I HEAD DRIVE
- GEAR REDUCER ›¼À“ SHAFT MOUNT
- BACKSTOP ›¼À“ INSTALLED IN REDUCER
- MOTOR ›¼À“ 20 HP TEFC
- V-BELT DRIVE ›¼À“ WITH DRIVE GUARD
- CAPACITY ›¼À“ 750 STPH OF 100 PCF MATERIAL 25 DEGREES SURCHARGE (90% FINES 10%
SPHERICAL LUMPS 6›¼À MINUS)
- BELT SPEED ›¼À“ 400 FPM
- DRIVE PULLEY ›¼À“ 14›¼À DIAMETER 3/8›¼À HERRINGBONE LAGGED DRUM
- TAIL PULLEY ›¼À“ 12›¼À DIAMETER CEMA CHEVRON WING
- SHAFTS ›¼À“ TURNED AND POLISHED
- BEARINGS ›¼À“ INCLUDED
- TAKE-UP ›¼À“ SCREW TYPE - PORTABILITY:
- CONVEYOR SPLICE ›¼À“ ONE PIECE FRAME
- SUPPORT ›¼À“ NOT INCLUDED
- TAIL SUPPORT ›¼À“ NOT INCLUDED
- STACKABLE PLUS ›¼À“ INCLUDED
- UNDERCARRIAGE ›¼À“ ADJUSTABLE HEIGHT WITH SINGLE NON-SWIVELING 11R X 22.5 WHEELS
& TIRES 11›¼À™6›¼À DISCHARGE HEIGHT
- MOUNTING TABS ›¼À“ WELD ON UNDERCARRIAGE TABS
- ANCHOR PIVOT PLATE ›¼À“ NOT INCLUDED
- BEND OPTION ›¼À“ NOT INCLUDED
- FIFTH WHEEL ›¼À“ FOR ROAD TRAVEL BOLT ON DESIGN
- WHEELS ›¼À“ HEAVY DUTY DOT RIMS WITH WELD IN 8-HOLE CENTER (VOIDS DOT RATING)
- TOW EYE ›¼À“ PINTLE HITCH TYPE
- AXLE JACKS ›¼À“ NOT INCLUDED - CONVEYOR COMPONENTS:
- BELTING ›¼À“ 3-PLY 3/16X 1/16 330 PIW
- BELT SPLICE ›¼À“ FACTORY VULCANIZED BELT SPLICE
- SCRAPERS ›¼À“ SUPERIOR EXTERRA PRIMARY BELT SCRAPER
- IDLERS ›¼À“ CEMA C 5›¼À DIA. STEEL ROLLS SEALED FOR LIFE BALL BEARINGS
- IDLER SEAL ›¼À“ SUPERIOR STANDARD SPINGUARD SEAL
- LOAD AREA ›¼À“ 20 DEGREES TROUGH 12-16›¼À SPACING
- TROUGH ›¼À“ 35 DEGREES ON 4›¼À™ SPACING
- RETURNS ›¼À“ STEEL CANS ON 10›¼À™ SPACING
- RADIAL RECEIVING HOPPER ›¼À“ NOT INCLUDED
- FOLD DOWN HOPPER ›¼À“ 5›¼À™LONG 10›¼ÀHIGH HINGED WITH 1›¼À ROUND BAR FOR MATERIAL
SHELF
- GATHERING TROUGH ›¼À“ 5›¼À™ LONG WITH ADJUSTABLE RUBBER FLASHING - ADDITIONAL SPECIFICATIONS:
- GUARDING ›¼À“ FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED
- FULL LENGTH GUARDING ›¼À“ FULL LENGTH GUARDING PAINTED SAFETY YELLOW
- VOLTAGE ›¼À“ 480 V / 3 PH / 60 HZ
- PAINT ›¼À“ 1 COAT PRIMER 1 COAT FINISHENAMEL GRAPHITE GRAY
- GUARD PAINT ›¼À“ SAFETY YELLOW
- IDLER PAINT ›¼À“ POWDER COATED SUPERIOR ORANGE
