2021 Other Conveyor - Transfer 4255R
Fields with asterisks * are required.
Print This Page
Description
42X55 CONVEYOR
Inventory ID
E00062157
Serial
210766
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00062157
- Status: On Rent
- Make: Other
- Model: 4255R
- Year: 2021
- Serial#: 210766
Notes

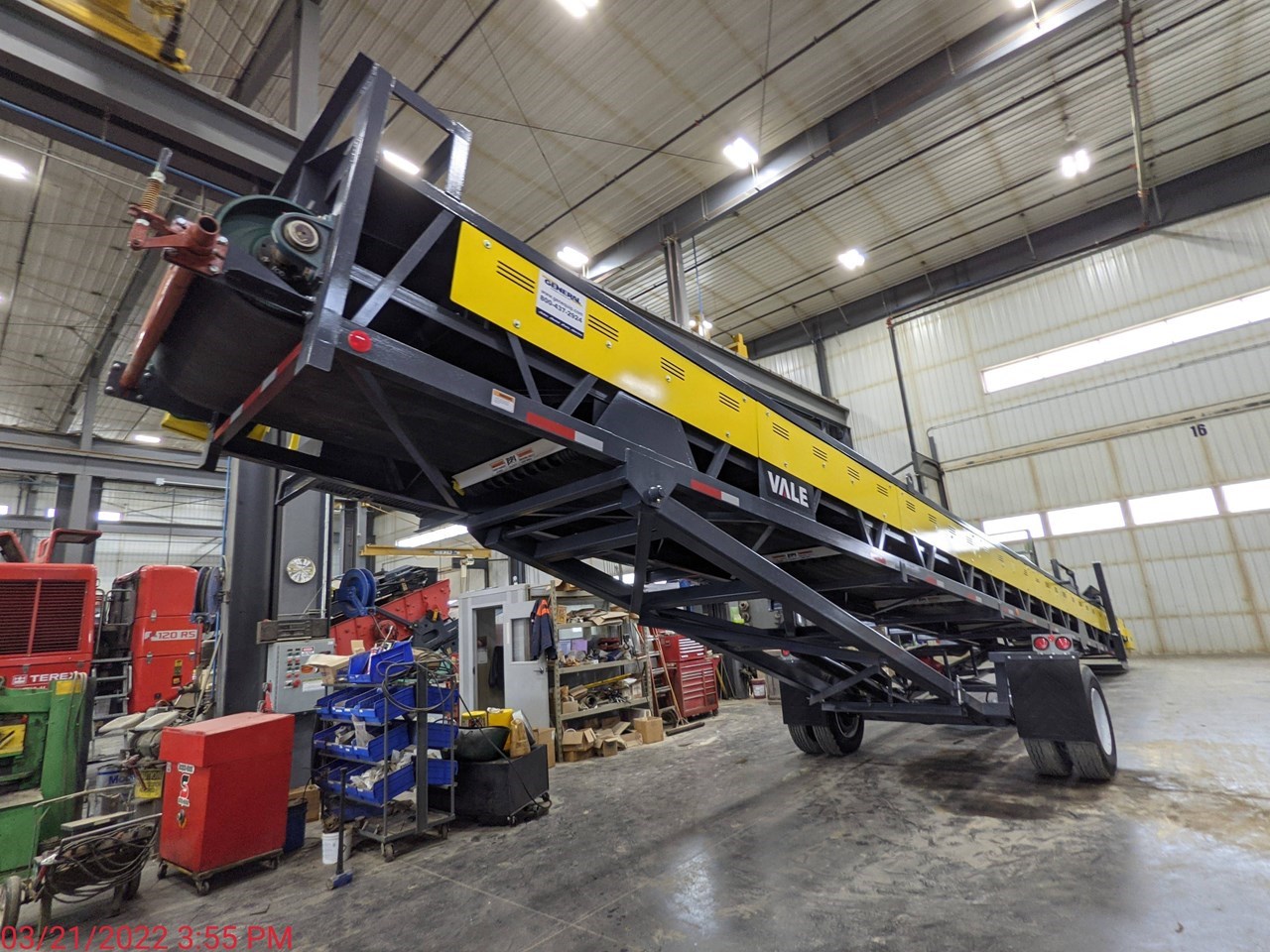

- 4255R CONE FEED CONVEYOR EQUIPPED PER THE BELOW:
- CAPACITY:
- - 42›¼À BELT AT 320 FPM
- - 600 TPH BASED ON 100 PCF MATERIAL AND 18›¼À™ MAXIMUM INCLINE
- CONVEYOR:
- - BELT 42›¼À 375 3PLY 1/4X1/16 D6 ABRASION RESISTANT BELT VULCANIZED
- - 18›¼À HEAD DRUM PULLEY 3/8 LAGGED 1045 SHAFT WITH DODGE 215 SCM BEARING UNITS
- - 16›¼À WING TAIL PULLEY WITH SCREW TAKE-UP 1045SHAFT WITH DODGE 207 SCM BEARING
- UNITS GUARDED
- - DODGE TA5215H25:1 GEAR REDUCER WITH BACKSTOP AND V-BELT DRIVE GUARDED
- 25HP 460V ELECTRIC MOTOR INVERTOR DUTY FOR VFD DRIVE
- - IMPACT BED 6›¼À™ LONG X 20›¼° TROUGH
- - 9 BAR DESIGN 2 X 3›¼À™ SECTIONS
- - PPI CEMA C5›¼À 20›¼° TROUGH AND RUBBER DISC RETURN IDLERS
- - 3›¼À™TROUGH SPACING 10›¼À™ RETURN SPACING
- - 6›¼À™ LONG VERTICAL SKIRT BOARD WITH
- - 1›¼À PLATE CONSTRUCTION
- - BOLT-ON SKIRT HEIGHT EXTENSION 6›¼À™ LONG X 1›¼À PLATE X 45›¼° ANGLE
- - PROVISIONS FOR MAGNET AND METAL DETECTOR
- - CANOELINERS 1.5›¼À X 7›¼À WITH 45›¼° TOP ANGLE FULL LENGTH HOPPER SIDES
- - FULL LENGTH SKIRT BOARD AT 36›¼À WIDTH BOLT-ON ›¼¼›¼À PLATE SECTIONS
- CONVEYOR STRUCTURE:
- - 36›¼À DEEP TRUSS
- - L3X3X5/16 TOP CORD L5X3X5/16 BOTTOM CORD L2X2X3/16 BRACING
- - LIFT LUGS ON TRUSS STRUCTURE
- UNDERCARRIAGE:
- - MANUAL RAISE WITH SAFETY PIN LOCK OPTION FOR 12V HYDRAULIC RAISE
- - DUAL 11R22.5 RADIAL TIRES MOUNTED ON REPLACEABLE SPINDLES AND FIXED WIDTH
- AXLE
- - AIR BRAKE PACKAGE LIGHT PACKAGE MUD FLAPS RELOCATABLE GLAD HAND & PLUG UNIT
- - KINGPIN AND PINTLE TOW HITCH
- - URETHANE COATING GRAPHITE GREY WITH SAFETY YELLOW GUARDS
- - OWNER›¼À™S MANUAL AND PARTS LIST
- OPTIONS INCLUDED AND INSTALLED:
- - STANDARD HOPPER 6 FT
- - SUPERIOR BELT CLEANER WITH URETHANE BLADE AND TENSIONER
- - RETURN ROLL GUARDS PINCH
- - FULL LENGTH TROUGH GUARDS
- - V-PLOW GRAVITY ADJUST.
- - LANDING DROP LEGS BOLT ON TUBE-IN-TUBE W/ SAFETY PIN LOCK
- - PROVISIONS FOR MAGNET
- - PROVISIONS FOR METAL DETECTOR
- OPTIONS EXTRA:
- - WALKWAY FULL LENGTH
- - 24›¼À WIDE WALKWAY FULL LENGTH
- - 42›¼À HSS 1.5 HANDRAIL WITH MID-RAIL AND POSTS 6›¼À KICK PLATE
- - SERRATED GRATING 1-1/4X3/16
- - LADDER FOR ACCESS
- - HYDRAULIC LIFT
- - 12V HPU CYLINDER HOSE AND FITTINGS
- - NO ELECTRICAL SWITCHGEAR PANEL - 150- OF MAIN POWER CORD WITH 60 AMP HUBBELL
- PLUG
- NOTE: IT IS THE END USER›¼À™S RESPONSIBILITY TO ENSURE SAFETY AND GUARDING MEET LOCAL REGULATIONS.
