2023 Superior Conveyor - Stacking 36X150TSFD
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR TELESTACKER
Inventory ID
E00066639
Serial
2156042
Machine Location
Details
- Inventory ID: E00066639
- Status: On Yard
- Make: Superior
- Model: 36X150TSFD
- Year: 2023
- Serial#: 2156042
Notes

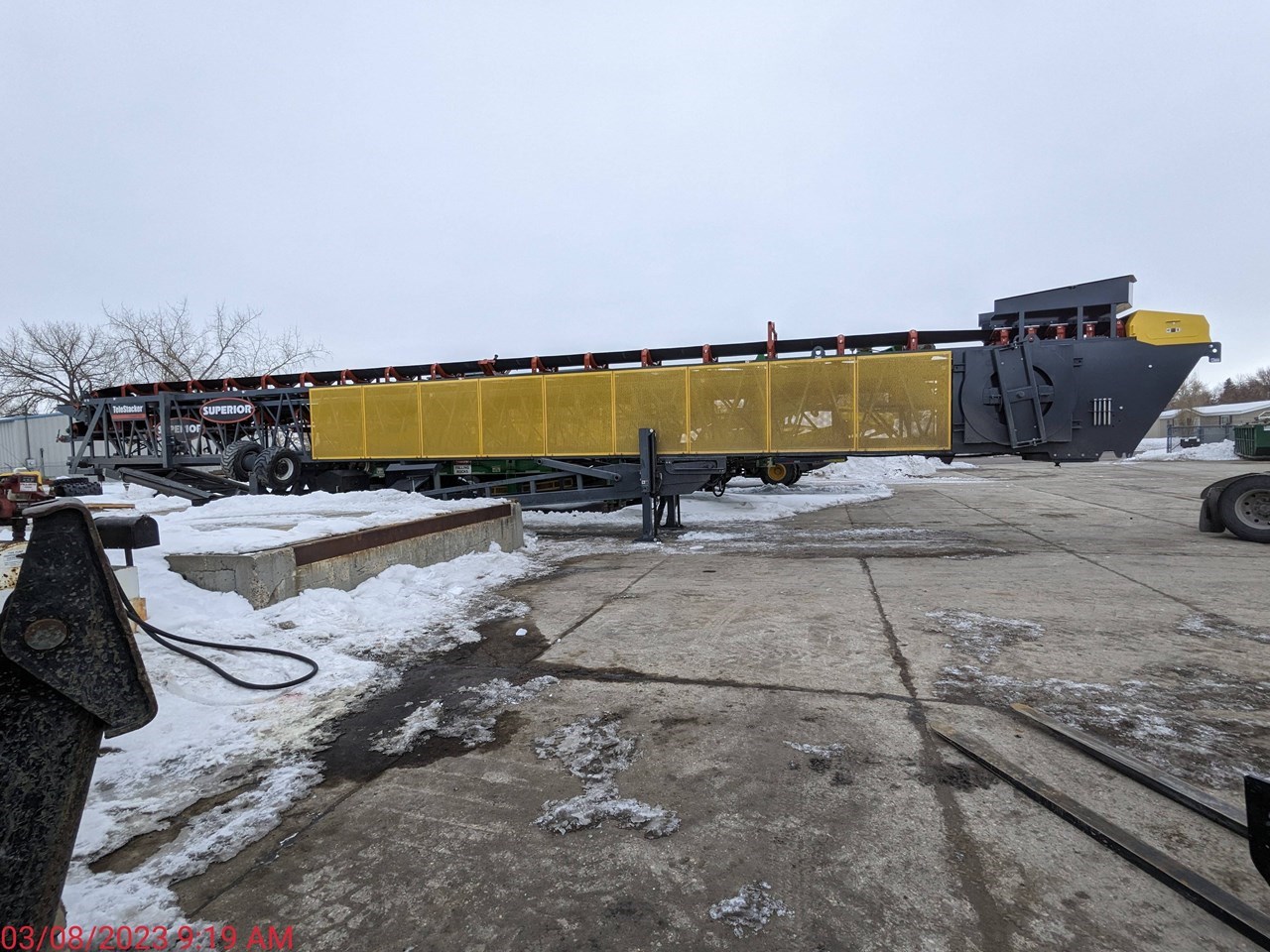

- SUPERIOR 36X150TSFD PORTABLE TELESTACKER CONVEYOR EQUIPPED AS PER THE BELOW:
- CONVEYOR FRAME:
- TRUSS DESIGN HEAVY-DUTY TRUSS DESIGNED FOR MAXIMUM STRENGTH / WEIGHT RATIO
MAIN CONVEYOR 80- LONG WITH 70" DEEP TRUSS
- STINGER CONVEYOR 80- LONG WITH 54" DEEP TRUSS
- EXTENSION CONVEYOR EXTENDS TO 150- LONG WITH HYDRAULIC CABLE WINCH
- SAFETY STOP MECHANICALLY STOPS RETRACTION IN THE EVENT OF CABLE FAILURE
DRIVE SPECIFICATIONS (MAIN / STINGER):
- DRIVE CLASS I HEADEND
- GEAR REDUCERS DODGE SHAFT MOUNT
- BACKSTOPS INSTALLED IN REDUCERS
- MOTORS 40/40 HP TEFC
- V-BELT DRIVE WITH DRIVE GUARD
- CAPACITY 1000 STPH OF 100 PCF MATERIAL 25 DEGREE SURCHARGE (90% FINES - 10%
SPHERICAL LUMPS 6›¼À MINUS)
- BELT SPEED 450/650 FPM
- SUPERIOR PULLEYS
- DRIVE PULLEYS 16›¼À DIAMETER 3/8›¼À HERRINGBONE LAGGED DRUM
- TAIL PULLEYS 14›¼À DIAMETER CEMA CHEVRON›¼® WING PULLEY
- SHAFTS TURNED AND POLISHED
- BEARINGS DODGE
- TAKEUPS SCREW TYPE - PORTABILITY:
- UNDERCARRIAGE PATENTED FB›¼® UNDERCARRIAGE WITH HYDRAULIC RAISE CYLINDERS 15
HP PUMPING UNIT AND COVERS
- AXLE TYPE FD 50 AXLE
- TRANSPORT AXLE (8) 11R-22.5 TIRES TANDEM WALKING BEAM. 11›¼À™11›¼À TRAVEL
WIDTH
- TAG AXLE NOT INCLUDED
- AXLE JACKS NOT APPLICABLE
- COMP. LINKAGE SLIP-JOINT FOR RAISING AND LOWERING OF CONVEYOR WITH WHEELS IN - RADIAL POSITION
- RADIAL AXLE (4) 385/65D-19.5 TIRES ON HYDRAULIC OUTRIGGERS. 18›¼À™5›¼À STACKING
WIDTH
- RADIAL TRAVEL 4-WD 2 HP PLANETARY DRIVE ON EACH WHEEL 4% GRADE
- FIFTH WHEEL INCLUDED
- ANCHOR PIVOT SECURES TAIL END DURING RADIAL TRAVEL
- BRAKES COMPLETE AIR BRAKE PACKAGE
- LIGHTS BRAKE AND DIRECTIONALSIGNALS
- MUD FLAPS INSTALLED BEHIND TRANSPORT WHEELS
- LANDING GEAR ONE SET CONTROL VALVE HONDA POWER UNIT
- TOWING EYE ADJUSTABLE FOR PIT TRANSPORT - CONVEYOR COMPONENTS:
- BELTING 3 PLY 3/16 X 1/16 330 PIW
- BELT SPLICE FACTORY VULCANIZED BELT SPLICE
- SCRAPERS SUPERIOR EXTERRA›¼® PRIMARY BELT SCRAPER ON MAIN AND STINGER
- SUPERIOR IDLERS CEMA C 5›¼À DIA. ROLLS SEALED FOR LIFE BALL BEARINGS
- IDLER SEAL STANDARD SPINGUARD›¼® SEAL
- LOAD AREA (MAIN)SUPERIOR SEAL SYSTEM WITH 10" CARTRIDGES AND STEEL ROLLERS
- TROUGH 35›¼° ON 4- SPACING
- RETURNS SELF-CLEANING SUPERIOR URATHON›¼® RETURN IDLERS ON STEEL CANS ON
8- SPACING
- SELF-ALIGNING STEEL CAN TROUGHING ALIGNER ON MAIN / SUPERIOR NAVIGATOR›¼®
TRAINER ON STINGER
- RADIAL HOPPER ROCK BOX STYLE
- GATHERING TROUGH 6›¼À™ LONG WITH ADJUSTABLE RUBBER FLASHING
- SPRAY BARS NOT INCLUDED
- ORANGE GUM RUBBER IN GATHERING TROUGH AND SKIRT BOARD
- (2) FLAG HOLDERS (1) ON EACH SIDE OF THE STINGER - CONTROLS:
- CONTROL SYSTEM PILEPRO›¼Â¢ V12 AUTOMATION - FD AXLE POWER TRAVEL CONVEYOR
RAISE AND STINGER EXTENSION CONTROLLED BY PLC PARAMETERS OR WITH PANEL
MOUNTED SWITCHES INCLUDES AUTO-LEVEL
- PANELVIEW›¼Â¢ 1000 NOT INCLUDED
- SLIDE-TRACK GALVANIZED C-RAIL AND STEEL WHEELS TO DELIVER HYDRAULIC HOSES AND
ELECTRICAL CORDS TO STINGER
- MATL. FLOW SWITCH SONICSCOUT›¼Â¢ ULTRASONIC SENSOR STOPS POWER TRAVEL WHEN BELT
IS EMPTY
- WIRELESS REMOTE OPERATES MANUAL HYDRAULIC FUNCTIONS FROM UP TO 1000- FEET AWAY
- ZERO SPEED SENSOR NOT INCLUDED
- VOLTAGE 480 V / 3 PH / 60 HZ
- ELECTRICAL ENCLOSURE WITH MAIN DISCONNECT CIRCUIT BREAKER AND STARTERS
WITH ON/OFF PUSH BUTTONS TO CONTROL EACH ELECTRIC MOTOR WITH 250- OF MAIN
POWER CORD - ADDITIONAL SPECIFICATIONS:
- STARTUP ON-SITE TRAINING NOT INCLUDED
- GUARDING FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED
- PAINT 1 COAT PRIMER 1 COAT FINISH ENAMEL GRAPHITE GRAY 12-00636
- GUARD PAINT
- IDLER PAINT POWDER COATED SUPERIOR ORANGE
- PATENTS UNITINCLUDES PATENTS
- SIGNPLATES GENERAL SIGNPLATES INCLUDED
- OWNER›¼À™S MANUAL (1) COPY IN ENGLISH INCLUDED FOR OPERATION AND MAINTENANCE
