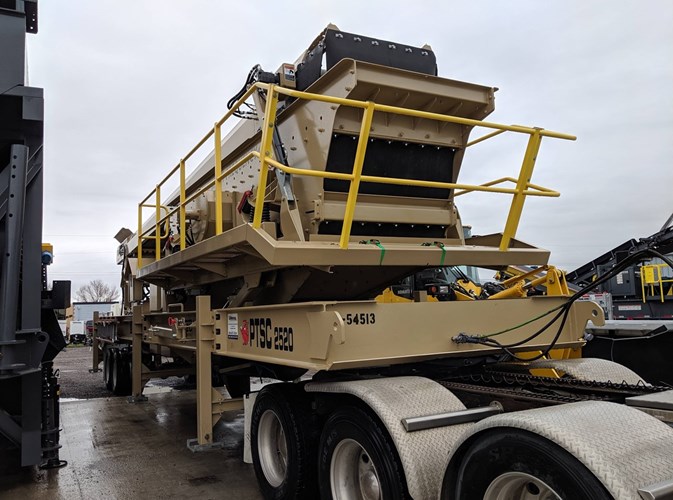

2019 ASTEC MOBILE SCREENS PTSC 2520A Screening Plant - Hydraulic For Sale

2019 ASTEC MOBILE SCREENS PTSC 2520A Screening Plant - Hydraulic For Sale
  • Price
  • $280,500 USD
  • Description
  • MULTI-FREQUENCY HYDRAULIC SCREEN PLANT
  • Inventory ID
  • E00054513
  • Serial
  • 194673
(800) 437-2924
Machine Location:
View Google Map
General Equipment & Supplies, Inc.
4300 Main Ave
Fargo, North Dakota 58103

Details

  • Inventory ID: E00054513
  • Status: On Yard
  • Make: ASTEC MOBILE SCREENS
  • Model: PTSC 2520A
  • Year: 2019
  • Serial#: 194673

Equipment Text

  • MODIFIED PTSC 2520A MULTI-FREQUENCY SCREEN:
  • SCREEN:
  • - ONE (1) 2520A DOUBLE DECK MULTI-FREQUENCY SCREEN: 5- X 20- TOP DECK 18- BOTTOM DECK
  • - SCREEN DRIVEN BY 950 RPM VIBRATING MECHANISM MOUNTED ON SCREEN; ADJUSTABLE AMPLITUDE WITH ADDON WEIGHTS; COIL SPRINGS
  • - HYDRAULIC CONTROLS FOR VARIABLE ANGLE OPERATION; FINES COLLECTING HOPPER; TOP AND BOTTOM DECK DISCHARGE CHUTES; AGGREGATE SPREADER; FIXED ACCESS LADDER WITH WRAP AROUND WALKWAY; HYDRAULIC SCREEN BOX LINKAGE TO RAISE DELIVERY CONVEYOR FOR SCREEN CLOTH CHANGES AND ADJUST FEED INTO FEED BOX
  • - BOTTOM DECK HAS SIX HYDRAULIC VIBRATING MOTORS TO INDUCE VIBRATION DIRECTLY INTO SCREEN MEDIA
  • - LESS SCREEN CLOTH (TOP DECK SIDE TENSION; BOTTOM DECK END TENSION)
  • FRAME:
  • - I-BEAM TYPE; W18 X 35#; KING PIN TYPE HITCH; MANUAL OPERATED SUPPORT LEGS; ADJUSTABLE HEIGHT; OUTRIGGERS FOR ADDITIONAL SUPPORT; TANDEM AXLE ASSEMBLY WITH EIGHT (8) 11R22.5 TIRES AND MUD FLAPS; LEAF SPRING TYPE SUSPENSION; AIR BRAKES; REAR TAIL LIGHTS AND SIDE MARKER LIGHTS
  • DELIVERY CONVEYOR:
  • - 38- X 36" CONVEYOR WITH VARIABLE SPEED HYDRAULIC DRIVE; 5- LONG RECEIVING HOPPER; 16- LOADING HEIGHT; FORMED SIDES; LOWERS FOR TRANSPORT; RUBBER LAGGED HEAD PULLEY ANDSELF-CLEANING WING PULLEY MOUNTED ON PILLOW BLOCK BEARINGS; SCREW TYPE TAKE-UPS; CEMA-C 20° CHANNEL MOUNT IDLERS ON 4- CENTERS AND 1- CENTERS IN LOADING AREA; CEMA-B RETURN IDLERS ON 10- CENTERS
  • - BELTING IS 220 PIW 1/8" X 1/16" COVER
  • POWER ELECTRICAL & HYDRAULIC:
  • - 120 GALLON ELECTRIC/HYDRAULIC POWER UNIT; 75 HP ELECTRIC MOTOR 480 VOLT 1750 RPM TEFC; DIRECT COUPLED HYDRAULIC PUMPS;
  • - LOW OIL LEVEL SHUT OFF SWITCH AND WARNING STROBE LIGHTS; NEMA-4 RATED INSTRUMENT PANEL TO OPERATE ALL ELECTRICAL FUNCTIONS OF PLANT; OFF PLANT POWER MUST BE PROVIDED BY CUSTOMER
  • - GUARDING - WE DO NOT WARRANT THAT OUR GUARDS WILL MEET ALL LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO
  • HAVE THE GUARDS CHECKED BY A LOCAL INSPECTOR.
  • - PAINT - ONE COAT PRIMER; ONE COAT BEIGE ACRYLIC PAINTED GRAPHITE GRAY WITH SAFETY YELLOW GUARDING
