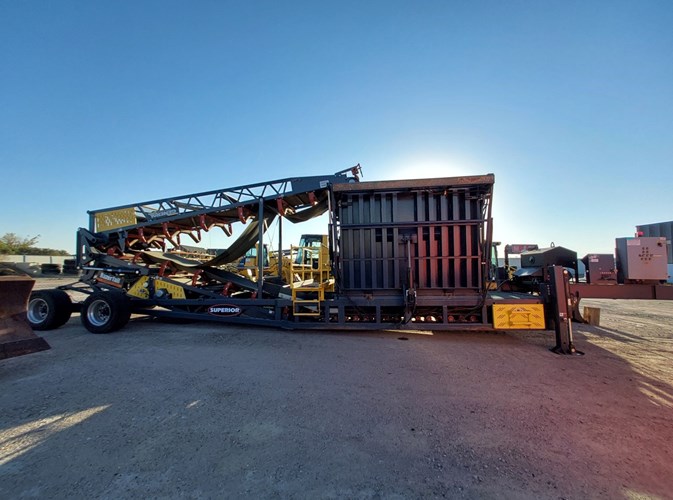

2020 Superior Truck Unloader 48RZTU
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR TRUCK UNLOADER
Inventory ID
E00072913
Serial
1762401
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00072913
- Status: On Rent
- Make: Superior
- Model: 48RZTU
- Year: 2020
- Serial#: 1762401
Notes
- USED SUPERIOR 48RZTU TRUCK UNLOADER EQUIPPED AS PER BELOW:
- LOAD AREA:
- GRATE: DIAGONAL WITH 10- X 5- OUTSIDE DIMENSION
- CONSTRUCTION: TUBULAR WITH 7" OPENINGS INCLUDES CENTER GRATE
- CONSTRUCTION: FLAT BAR WITH 5" OPENINGS
- SELF-CLEANING RAMP: HINGED ON EACH SIDE OF THE GRATE FOLD UP FOR CLEANING
CYCLE AFTER TRUCK IS OFF RAMP
- HYDRAULIC TRI-FOLD: TRI-FOLDING HYDRAULIC RAMP EXTENSIONS 4TH RAMP MANUALLY
FOLDED
- RAMP BULKHEAD: 10- WIDE BY 8-4" LONG FOLD HYDRAULICALLY FOR ROAD TRANSPORT
- EXTENDED RAMPS: FROM GRADE TO SELF-CLEANING RAMPS; HYDRAULIC FOLD INTO HOPPER
AREA FOR TRANSPORT
UNFOLDING CONVEYOR:
- SIZE: APPROX 48" X 63-
- DISCHARGE HEIGHT: ADJUSTABLE HEIGHT WITH LINK ARM
- FRAME: 30" DEEP TRUSS
- DRIVE: CLASS I SINGLE WRAP
- GEAR REDUCER: DODGE SHAFT MOUNT WITH BACKSTOP
- MOTOR: 50 HP 1800 RPM TEFC
- V-BELT DRIVE: WITH DRIVE GUARD
- CAPACITY: 1000 STPH OF 100 PCF MATERIAL 1.5" MINUS SPHERICAL LUMPS
- BELT SPEED: 210 FPM
-FLOW CONTROL: ADJUSTABLE SLIDE GATE
- DISCHARGE HOOD: NOT INCLUDED
- SUPERIOR IDLERS: CEMA C 5" DIA. ROLLS SEALED FOR LIFE BALL BEARINGS
- LOAD AREA: 5" DIAMETER FLAT STEEL IDLERS CLOSE SPACING
- TROUGH: 35 DEGREE EQUAL ON 4- SPACING
-RETURNS: STEEL ROLLS ON 10- SPACING
SUPERIOR PULLEYS CROWN FACED
- DRIVE PULLEY: 20" DIA. CERAMIC LAGGED DRUM
- SNUB PULLEY: 18" DIA. CEMA CHEVRON WING
- TAIL PULLEY: 12" DIA. MD CHEVRON WING
- HEAD PULLEY: 16: DIA. PLAIN STEEL DRUM
- SHAFTS: TURNED AND POLISHED
- BEARINGS: DODGE
- TAKE UPS: SCREW TYPE
- BELTING: 3 PLY 3/16 X 1/16 330 PIW
- BELT SPLICE: FACTORY VULCANIZED BELT SPLICE
- BELT SCRAPER: SUPERIROR EXTERRA PRIMARY
CHASSIS:
- CONSTRUCTION: WELDED STEEL TUBE
- AXLE: TANDEM WITH SINGLE 315/80RX22.5
- HITCH: FIFTH WHEEL
- BRAKES: COMPLETE AIR BRAKE PACKAGE
- LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
- MUD FLAPS: INCLUDED
- HYDRAULIC JACKS: HYDRAULIC LANDING LEGS WITH 12-VOLT PUMPING UNIT
HYDRAULICS:
- POWER UNIT: 20 HP ELECTRIC PUMPING UNIT
- RAMPS: RAISE AND LOWER
- CONVEYOR FOLD: 25- HEAD END FOLD HYDRAULIC
ADDITIONAL SPECIFICATIONS:
- POWER SUPPLY: 480V/3PH/60HZ
- ELECTRICAL: ENCLOSURE WITH MAIN DISCONNECT CIRCUIT BREAKER AND PUSH BUTTON
ON/OFF SWITCHES WITH RAMP AUTO-CYCLE PLC (IF APPLICABLE) MOUNTED TO THE
CHASSIS AND WIRED TO MOTORS - 100 FEET OF MAIN POWER CORD
- ELECTRICAL PANEL: LARGER ELECTRICAL PANEL MORE ROOM ON LEFT SIDE FOR EXTRA
AUXILIARY OUTLET
- REMOTE CONTROL: WIRELESS REMOTE CONTROLS BELT DRIVE HYDRAULIC UNIT AND RAMP
OPERATIONS
- OPERATOR PLATFORM: WALKWAY AND HANDRAILS OVER CONVEYOR ON BOTH SIDES OF HOPPER
AREA FOR OPERATOR WORKSTATION AND INSPECTION PLATFORM
- PAINTED GRAPHITE GREY WITH YELLOW GUARDING
- IDLER PAINT: POWDER COATED SUPERIOR ORANGE
- OWNERS MANUAL: (1) COPY INCLUDED FOR OPERATION MAINTENANCE AND PARTS
ADDED OPTIONS:
- FOLDING CONVEYOR: ALLOWS RAZERTAIL TO REACH 11- FEED HEIGHT FOR TELESTACKER.
INCLUDES HYDRAULIC FOLDING HEAD SECTION AND WRAP DRIVE
GUARDING:
- GUARDING: FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED.
