2022 Other Crusher - Jaw 3455
Fields with asterisks * are required.
Print This Page
Description
JAW CRUSHING PLANT
Inventory ID
E00062569
Serial
PC-34-55-438-22
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00062569
- Status: On Rent
- Make: Other
- Model: 3455
- Year: 2022
- Serial#: PC-34-55-438-22
Notes
- PORTABLE FABTEC/SUPERIOR 34›¼À X 55›¼À JAW PLANT WITH 60›¼À X 27›¼À™ UNDER JAW CONVEYOR AND 54" X 24- VGF EQUIPPED AS DESCRUBED BELOW:
- - 4 AXLE CARRIER 30" 99# WF BEAMS
- - HUTCH EQUALIZING 9700 SUSPENSION. (TANDEM/TANDEM)
- - 22 500# STANDARD FORGE AXLES
- - 11:00R X 24.5 TIRES
- - 4 GROUND SUPPORT STANDS WITH JACKING LEGS
- - FRONT HEAVY-DUTY FOLD-DOWN LEGS
- - AIR BRAKES LED BRAKE LIGHTS LED MARKER LIGHTS LED STROBE LIGHT REFLECTIVE
- TAPE AND MUD FLAPS
- - HEAVY DUTY REAR STRUCTURE FOR OPTIONAL BOOSTER ATTACHMENT
- 34›¼À X 55›¼À SUPERIOR LIBERTY JAW:
- - 200 HP MOTOR
- - 250 RPM
- - MINNIUM AND MAXIUM CSS 4" - 8"
- - HEAVY DUTY STEEL BOLTED MAIN FRAME
- - CAST STEEL PITMAN WITH REPLACEABLE TOE PROTECTION
- - PRECISION MACHINED LARGE DIAMETER SHAFT HIGH STRENGTH
- - DUCTILE IRON CAST FLYWHEELS 63" DIA
- - LOW MAINTENANCE LABYRINTH SEALS
- - HIGH LOAD CAPACITY INBOARD AND OUTBOARD SPHERICAL ROLLER BEARINGS
- - LUBRICATION GREASE PUMP ON TIMER TO AUTO GREASE BEARINGS (GREASE NOT INCLUDED)
- - LINERS ABRASION RESISTANT CHEEK PLATE LINERS AND BARREL PROTECTOR
- - JAW DIES STANDARD BROAD TOOTH 18% MANGANESE PITMAN AND STATIONARY JAW DIES
- WITHLIFTING EYES BUILT IN
- - HYDRAULIC WEDGE ADJUSTMENT WITH CONTROL PACKAGE. INCLUDES TANK CONTROLS FOR
- CSS SETTING ADJUSTMENT AND HYDRAULIC TENSION PRESSURE PRESSURE SENSOR AND
- ACCUMULATOR
- - AUTOMATIC HYDRAULIC OVER SPRINGTENSION SYSTEM
- - STANDARD PAINT - WINDOW GRAY ON JAW BODY. GRAPHITE GRAY ON FLYWHEEL AND
- GUARDING
- - DRIVE SPECIFICATIONS
- - V-BELT DRIVE 10 GROOVE 8V-BELT DRIVE
- - SINGLE PIECE COMPOSITE GUARD ON DRIVEN SIDE
- - SINGLEPIECE COMPOSITE FOR NON-DRIVE SIDE FLYWHEEL
- - FRAME MOUNTED MOTOR MOUNT WITH BELT TENSION SYSTEM

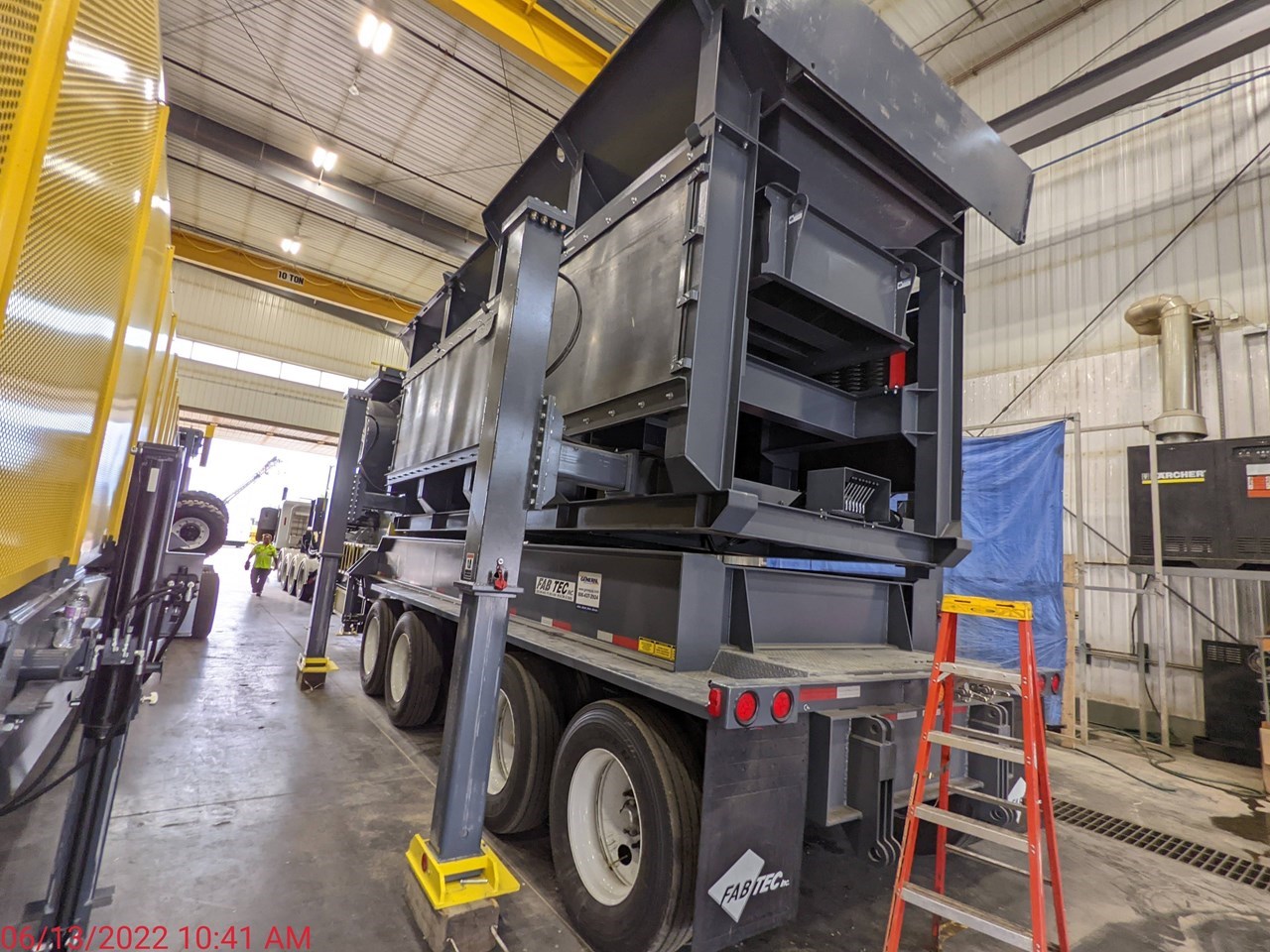

- - 54" X 24- SUPERIOR VIBRATING GRIZZLY FEEDER TOSHIBA 60 HP 1800 TEFC VGF
- MOTOR
- - FAB TEC HD PIVOT MOTOR MOUNT FOR VGF
- -OUTBOARD SPRING ARRANGEMENT
- - FEEDER MOUNTED HORIZONTALLY [0 DEGREES]
- - 1" THICK PAN SECTION WITH I-BEAM BASE FRAME SUPPORT
- - PAN LINER REPLACEABLE 1/2" THICK AR LINERS
- - 1/2" THICK SIDE PLATE CONSTRUCTION
- - PAINT SUPERIOR CLASS 1 - (1) COAT PRIMER; (1) TOP COAT ENAMEL GRAPHITE GRAY
- GRIZZLY SPECIFICATIONS:
- - 5 PERCENT SLOPED SINGLE 5- TAPERED BAR
- - 3" NOMINAL OPENING
- - RIGHT HAND DRIVE
- - 60 HP DRIVE MOTOR
- - BEARINGS 130 MM
- -AR LINED JAW DISCHARGE HOPPER WITH ADJUSTABLE WIPERS
- - 3/4" PLATE JAW FEED HOPPER 9- X 25-:
- - 1/2›¼À AR LINER.
- 14" WF SUPPORT BEAMS UNDER HOPPER WITH DIAGONAL BRACES:
- - BUILT IN SKID FASHION FOR REMOVAL.
- - HYDRAULIC LIFT FOR REMOVAL.
- - 3/8" PL BYPASS CHUTE UNDER GRIZZLY AREA TO UNDER JAW CONVEYOR WITH ADDED ROCK - CLEARANCE PROVISION FOR REJECT CONVEYOR
- - PLUG WELDED ›¼¼›¼À AR LINED

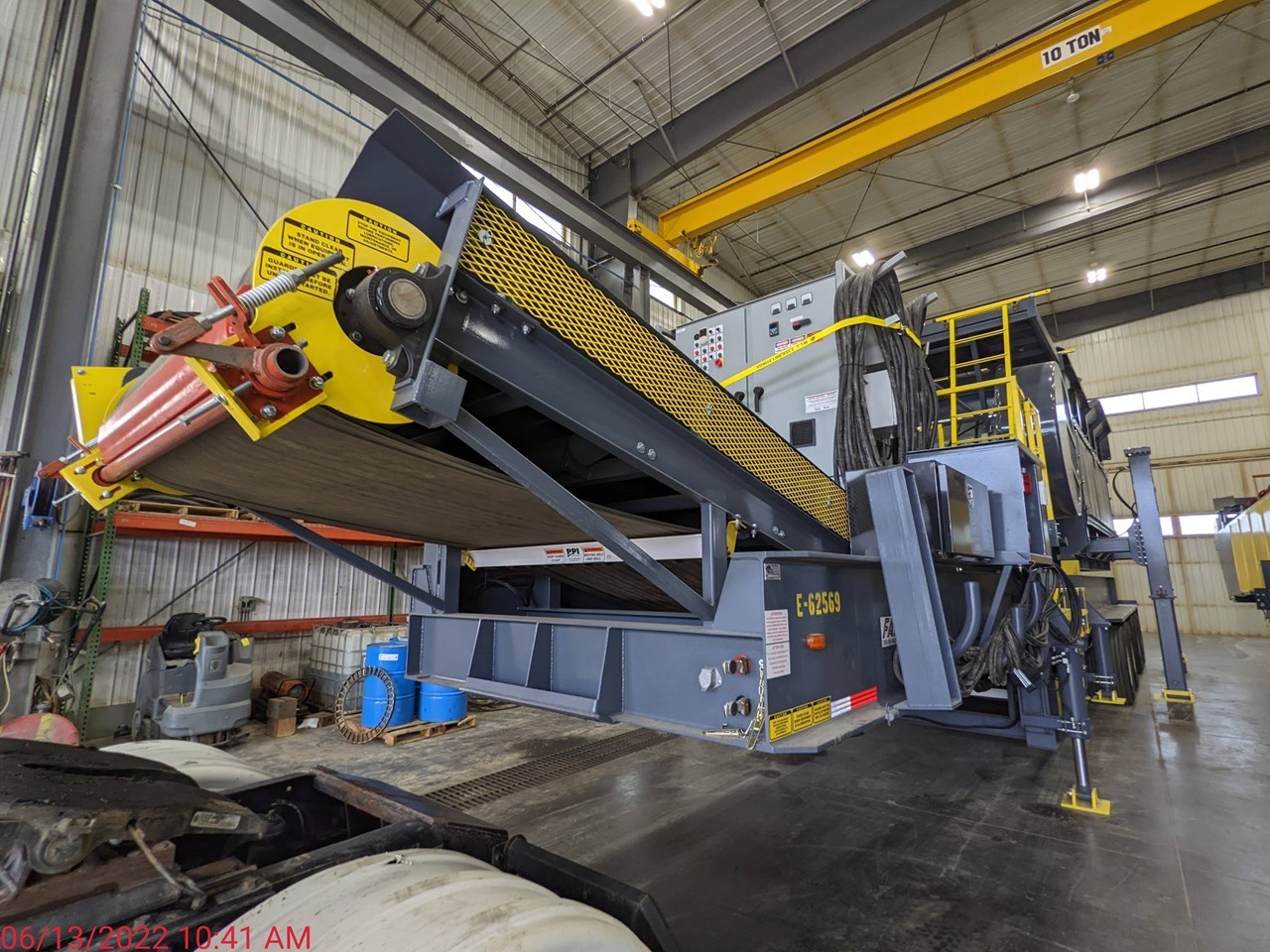

- 60" X 27- UNDER JAW CONVEYOR 20 HP TEFC TOSHIBA MOTOR:
- - MINE DUTY (HERRINGBONE STYLE) WING TAIL PULLEY ON 60›¼À UNDER JAW CONVEYOR
- - CERAMIC LAGGED HEAD PULLEY ON 60›¼À UNDER JAW CONVEYOR
- - IMPACT SLIDER BED UNDER JAW AREA THEN 36" SPACING ON CEMA C.
- - 60›¼À VIPER NON-TEAR BELT
- - 60›¼À SUPERIOR EXTERRA BELT SCRAPER
- - SUPER SCREW SPLICE ON 60›¼À BELT
- - TYPE ›¼ÀœE›¼À STYLE BEARINGS ON HEAD AND TAIL PULLEY›¼À™S
- - FAB TEC HEAVY DUTY TAKE-UPS.
- - INSPECTION/ CLEANOUT DOOR IN BACK OF HOPPER
- - ORANGE FLASHING
- - SELF CLOSING SAFETY GATE AT LADDER OPENING
- - FULL OBSERVATION STAND OVER JAW WITH DIAMOND PLATE FLOOR AND 42" HANDRAILS
- WITH ACCESS LADDERS MAINTENANCE PLATFORM ON LOWER DECK WITH TOOL BOX
- INCLUDED.
- - SAFETY GUARDS SANDBLASTED CHASSIS RUST INHIBITOR PRIMER AND TWO FINISH COATS
- OF PAINT INCLUDED
- - HYDRAULIC LIFTING LEGS ON VGF SECTION FOR SELF REMOVAL FROM CHASSIS
- - HYDRAULICS TO PUSH OUT 15›¼À FROM VGF FRAME
- - (4) 48›¼À STROKELIFTING CYLINDERS WITH SAFETY-LOK VALVES
- - CONSTRUCTED OF 8›¼À X 8›¼À X ›¼½›¼À SQUARE TUBE WITH TUBE IN TUBE DESIGN
- - SELF-CONTAINED HONDA POWER PACKAGE WITH ELECTRIC START
- - 8 BANK SPOOL VALVES
- - HEAVY DUTY FOOTPADS
- FAB TEC PLANT MOUNTED HYDRAULIC STABILIZING SYSTEM: (NON RUN-ON)
- - FAB TEC CYLINDERS 6›¼À X 18›¼À STROKE 70 000 LB. CAPACITY WITH SAFETY-LOK
- CIRCUIT
- - (1) SPOOL VALVE~ NUMBER OF BANKS TO MATCH LEG QUANTITY
- - 4CYLINDER MOUNTING HARDWARE
- - HEAVY DUTY FOOT PADS
- - 6 LEG SYSTEM
- - SELF CONTAINED HONDA 8 HP HYD. POWER PACKAGE
- - ELECTRIC START
- - 12 GALLON HYDRAULIC RESERVOIR WITH FILTER PROTECTION
- - 2 1/2 GPM PUMP
- REMOVABLE 2 PLY RUBBER CURTAINS WITH CHANNEL AND FLAT BAR FRAME ON BOTH SIDES OF VGF:
- - REMOVABLE
- - 1/2›¼À X 4›¼À FLAT BAR HANGERS
- - 6›¼À CHANNEL WEIGHTS WITH SIDE CLAMPS
- 1/2›¼À AR LINED VGF HOPPER:
- - 30›¼À UP FROM BOTTOM
- - 10›¼À™ FORWARD
- - PLUG WELDED
- -1/2›¼À AR LINERS ON BOTTOM VERTICALS OF HOPPER:
- - PLUG WELDED
- - FULL LENGTH OF VERTICALS
- REAR BOOSTER ATTACHMENT FOR PEERLESS OR TRAIL-KING BOOSTER WITH ELECTRICAL AND AIR CONNECTIONS:
- - PROVISIONS ONLY DOES NOT INCLUDED BOOSTER
- - RUBBER RETURN ROLLERS
- MANUAL FOLDING HOPPER EXTENSIONS ON 3 SIDES:
- - MANUAL FOLDING WITH LIFTING EYE FOR SETUP
- - TO PIN IN PLACE
- - 10›¼À™ FORWARD AND BACK TO BE 13›¼À™-6›¼À WIDE WHEN ASSEMBLED AND 12›¼À™ WIDE FOLDED DOWN - FOR SHIPPING
- - 3/4›¼À PLATE WITH 3/4›¼À X 4›¼À FLAT BAR STIFFENERS
- AES ELECTRICAL SWITCHGEAR FOR 3455B JAW PLANT:
- - 60 X 60 ENCLOSURE WITH CUSTOM CORD CAGE LEG KIT AND 400 AMP MAIN WITH
- - OPERATOR-UPPER RH
- - CORD CAGE
- - NEMA RATED FVNR STARTERS WITH CIRCUIT BREAKERS
- - SQUARE D 8536 SERIES NEMA RATED STARTERS WITH MELTING-ALLOY THERMAL OVERLOADS
- WITH CIRCUIT BREAKERS
- - 20 HP JAW DISCHARGE
- - 20 HP SPARE 1 WITH 60 AMP RECEPTACLE
- - 20 HPSPARE 2 WITH 60 AMP RECEPTACLE
- - 3 HP JAW ADJUST 2 POSITION SWITCH IN PANEL DOOR
- - 200HP ABB SOFT START
- - 60 HP ABB VFD
- - 5 KVA TRANSFORMER WITH 20A 110V SERVICE OUTLET
- - 2 KVA CONSTANT VOLTAGE TRANSFORMER FOR CONSTANT VOLTAGE TOCONTROL CIRCUIT
- - ALL BUTTONS IN DOOR WITH WIRELESS PENDENT REMOTE CONTROL FOR VFD START/STOP
- SPEEDUP/DOWN ESTOP SAFETY STARTUP HORN (MANUAL) E-STOP
- - 150- OF POWER CORD SWITCHGEAR PANEL TO SET OFF PLANT 30-
- GUARDING- WE DO NOT WARRANT THAT MANUFACTURERS›¼À™ GUARDING WILL MEET ALL LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE GUARDING CHECKED BY A LOCAL INSPECTOR PRIOR TO STARTUP OF EQUIPMENT OPERATIONS CORRECTIVE ACTIONS AND ASSOCIATED EXPENSE ARE THE RESPONSIBILITY OF THE END USER.
