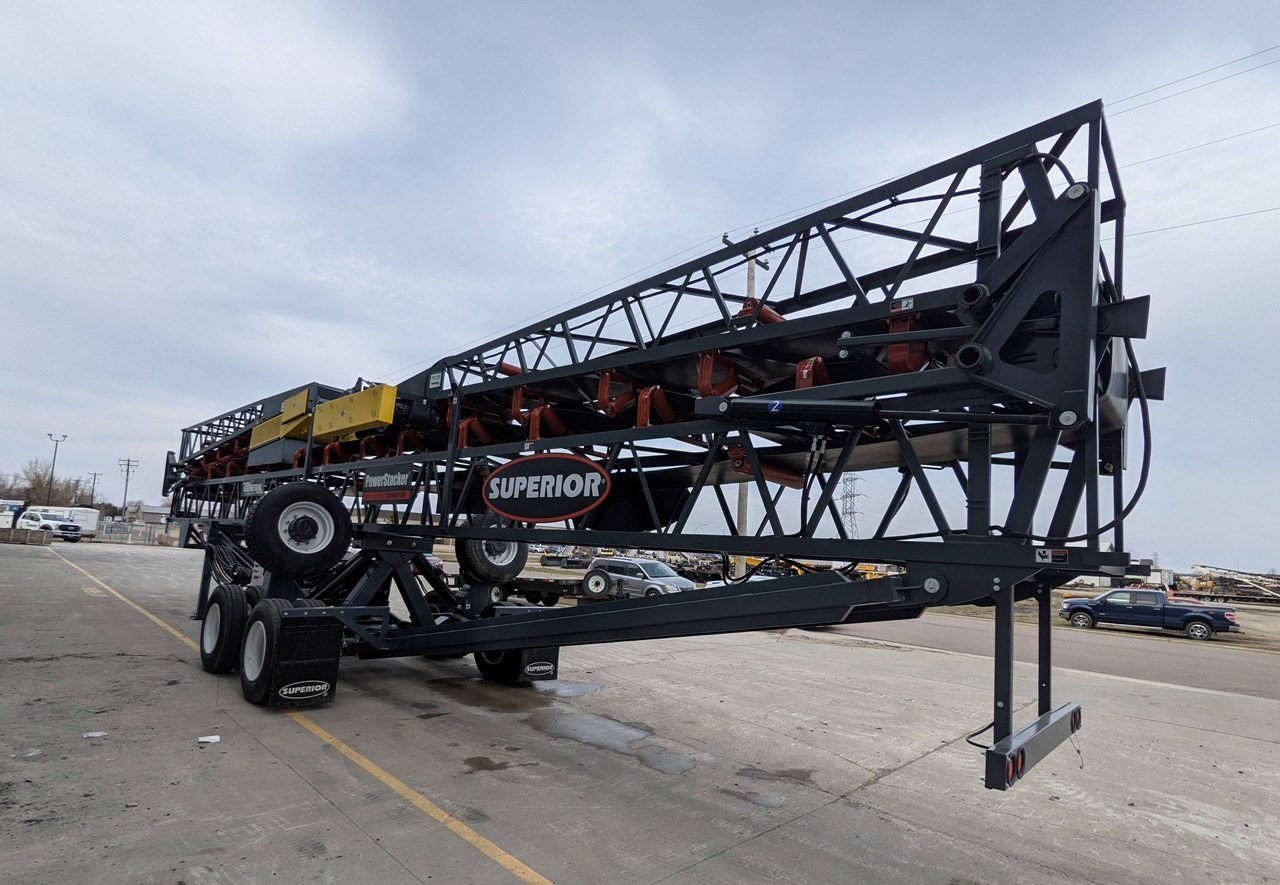

2022 Superior Conveyor - Stacking 30X110PS
Fields with asterisks * are required.
Print This Page
Description
POWERSTACKER CONVEYOR
Inventory ID
E00062989
Serial
2075715
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00062989
- Status: On Rent
- Make: Superior
- Model: 30X110PS
- Year: 2022
- Serial#: 2075715
Notes
- SUPERIOR 30X110 POWERSTACKER EQUIPPED AS PER BELOW:
- CONVEYOR FRAME:
- - MAIN FRAME: 36" DEEP TRUSS
- - CHORD ANGLES: 4" X 3" X 1/4"
- - LATTICE MEMBERS: 1 3/4" X 1 3/4" X 3/16"
- - EXTRA CHORD ANGLE: FULL LENGTH FROM TAIL END TO HEADEND UNDERCARRIAGE
- PINNING POINT
- DRIVE SPECIFICATIONS:
- - DRIVE: CLASS II HEAD END
- - GEAR REDUCER: DODGE SHAFT MOUNT
- - BACKSTOP: INSTALLED IN REDUCER
- - MOTOR: 25 HP 1800 RPM TEFC
- - V-BELT DRIVE: WITH DRIVE GUARD
- - CAPACITY: 500 STPH OF 100 PCF MATERIAL 25 DEGREE SURCHARGE (90% FINES 10%
- SPHERICAL LUMPS 6" MINUS)
- - BELT SPEED: 400 FPM
- - SUPERIOR PULLEYS CROWN FACED
- - DRIVE PULLEY: 18" DIAMETER 3/8" HERRINGBONE LAGGED DRUM
- - TAIL PULLEY: 16" DIAMETER MD CHEVRON›¼® PULLEY
- - SNUB PULLEY: NOT INCLUDED
- - HEAD PULLEY: NOT APPLICABLE
- - SHAFTS: TURNED AND POLISHED
- - BEARINGS: DODGE
- - TAKE UPS: SCREW TYPE
- PORTABILITY:
- - CONVEYOR SPLICE: HYDRAULIC TOP FOLDING HEAD AND TAIL WITH INTEGRAL BELT FOLD
- KEEPER
- - UNDERCARRIAGE: HYDRAULIC RAISE WITH 7.5 HP ELECTRIC PUMPING UNIT
- - AXLE TYPE: SUPERIOR-S PATENTED FD20 SERIES AXLE
- - TRANSPORT AXLE: EIGHT 11R-22.5 TIRES ON WALKING BEAM
- - RADIAL AXLE: TWO 385/65R-22.5 TIRES MOUNTED ON HYDRAULIC OUTRIGGERS.
- - RADIAL TRAVEL: (2) 2 HP PLANETARY DRIVE (2-WD)
- - FIFTH WHEEL: FOR ROAD TRAVEL BOLT ON DESIGN
- - ANCHOR PIVOT: MAINTAINS TAIL END DURING RADIAL TRAVEL
- - BRAKES: INCLUDEDWITH FD AXLE
- - LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
- - MUD FLAPS: INCLUDED WITH FD AXLE
- - LANDING GEAR: MANUAL PIN ADJUSTMENT
- - TOWING EYE: PINTLE TYPE HITCH
- CONVEYOR COMPONENTS:
- - BELTING: 3 PLY 3/16 X 1/16 330 PIW
- - BELTSPLICE: FACTORY VULCANIZED SPLICE
- - BELT RETAINER: RETAINS BELT WHEN FOLDING CONVEYOR
- - SCRAPER: SUPERIOR EXTERRA›¼® PRIMARY BELT SCRAPER
- - SUPERIOR IDLERS: CEMA C 5" DIA. ROLLS SEALED FOR LIFE BALL BEARINGS
- - LOAD AREA: 20›¼° TROUGH 16" SPACING
- - TROUGH: 35›¼° ON 4- SPACING
- - RETURNS: STEEL CANS ON 10- SPACING
- - RADIAL HOPPER: SLOPED 5- LONG BOLT ON DESIGN
- - GATHERING TROUGH: 5- LONG WITH ADJUSTABLE RUBBER FLASHING
- ADDITIONAL SPECIFICATIONS:
- -GUARDING: FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
- MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
- INSPECTED.
- - VOLTAGE: 480 V / 3 PH / 60 HZ
- - PANEL BRACKETS: FOR CUSTOMER INSTALLED ELECTRICAL PANEL ENCLOSURE
- - CORD HOLDERS: (1) SET BENT PIPE TYPE
- - ELECTRICAL SWITCHGEAR WITH 200- OF MAIN POWER CORD
- - PAINT: 1 COAT PRIMER 1 COAT FINISH ENAMEL GRAPHITE GRAY W/YELLOW GUARDING
- - IDLER PAINT: POWDER COATEDSUPERIOR ORANGE
- - PATENTS: UNIT INCLUDES PATENTS
- - OWNER-S MANUAL: (1) COPY IN ENGLISH INCLUDED FOR OPERATION AND MAINTENANCE
