2022 Superior Washing Equipment 36" AGGRE-DRY WASHER
Fields with asterisks * are required.
Print This Page
Description

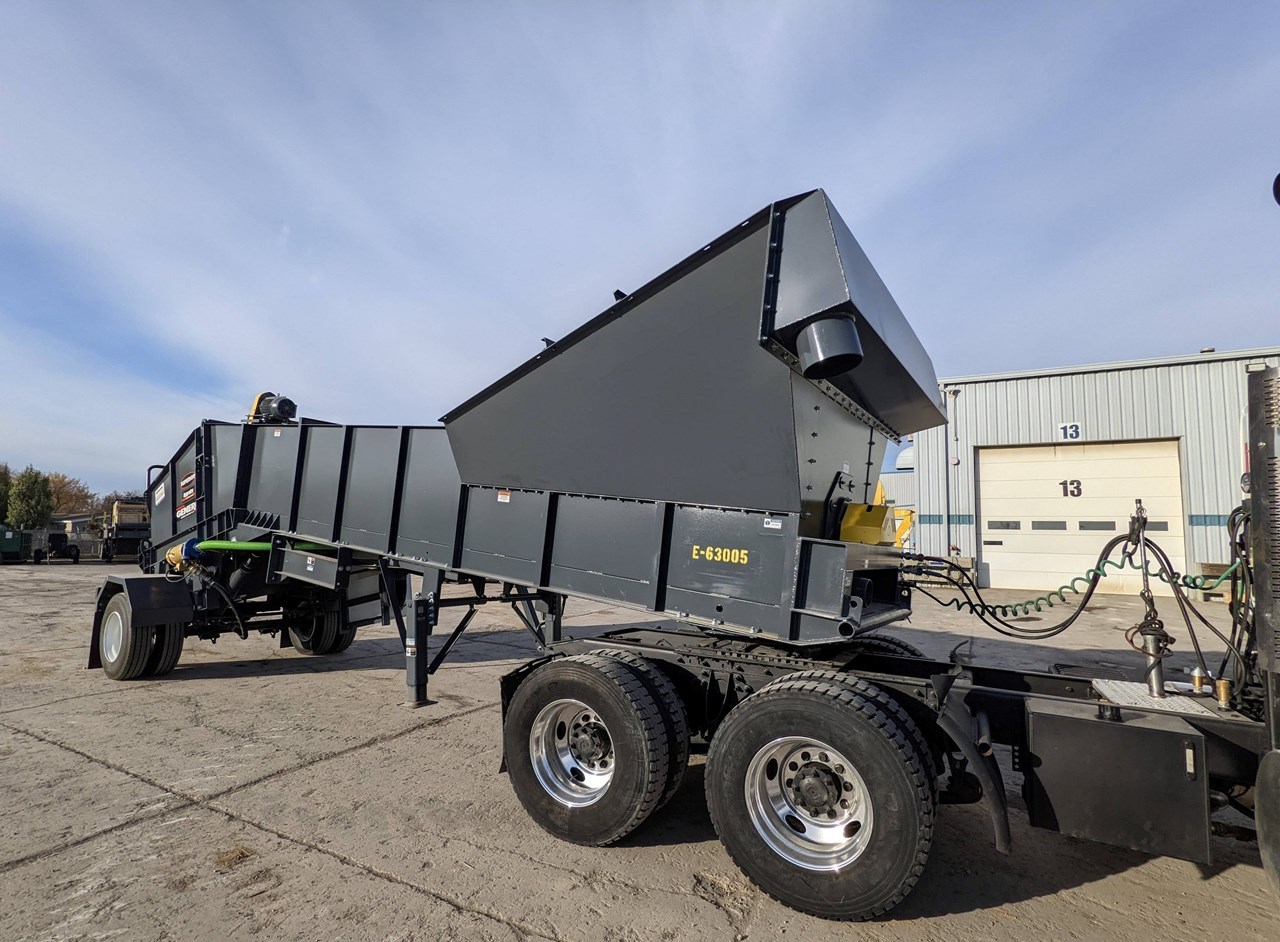

36" PORTABLE AGGRE-DRY WASHER
Inventory ID
E00063005
Serial
2156049
Machine Location
Details
- Inventory ID: E00063005
- Status: On Yard
- Make: Superior
- Model: 36" AGGRE-DRY WASHER
- Year: 2022
- Serial#: 2156049
Notes
- SUPERIOR 36" AGGREDRY DEWATERING WASHER EQUIPPED AS PER BELOW:
- WASHER SPECIFICATIONS:
- - SIZE: 36"
- - SCREW SPEED %: 100
- - SCREW RPM: 20 RPM
- - CAPACITY: 100 STPH (90 MTPH)
- - CONSTRUCTION: 1/4" (6.35MM) ASTM A36STEEL
- - BEARINGS: OUTBOARD PILLOW BLOCK
- - WEAR SHOES: CAST
- - SUPPORTS: FRONT END SUPPORTS
- - FLUME: OVER-FLOW FLUME WITH ADJUSTABLE WEIR
- - DISCHARGE CHUTE: MATERIAL DISCHARGE CHUTE
- - SAFETY COVER: NOT INCLUDED
- - SHAFT: SPIRAL TYPE HALF PITCH FLIGHTED FOR HIGH CAPACITY WITH ADJUSTABLE
- MOUNTS
- - ALSO INCLUDES: FEED HOPPER AND TUB BAFFLE
- DRIVE SPECIFICATIONS:
- - WASHER MOTOR: 15 HP
- - SCREEN MOTOR: (2) 7 HP
- - VOLTAGE: 230/480V/3PH/60HZ
- - V-BELT: DRIVE GUARD
- - GEAR BOX: DODGE SHAFT MOUNT
- SCREEN DECK SPECIFICATIONS:
- - SIZE: 4- X 8-
- - SCREEN CONSTRUCTION: SINGLE-MEMBER WELDMENT UTILIZING HEAVY PIPE CROSS MEMBERS
- FOR A BASE WHICH SUPPORTS REINFORCED STEEL U-CHANNELS
- - FRAME CONSTRUCTION: 1/4" ASTM A36 STEEL
- - SPRINGS: HEAVY STEEL COMPRESSION SPRINGS
- - SCREEN: 1- X 2- REPLACEABLE URETHANE .3MM APERTURE SNAP-DECK
- - SIDE LINER MEDIA: 2- REPLACEABLE MAGNETIC INJECTION MODLED LINERS WITH .5MM
- APERTURES
- - RECIRCULATING-TROUGH: SUPERIOR PATENTED FINES RECOVER RETURN SYSTEM
- - BOOSTER PUMP: 10 HP BOOSTER PUMP INCLUDING 2" BALL VALVE TO INCREASE AND
- CONTROL FINES JET DISCHARGE PRESSURE
- OPTIONS INCLUDED:
- - WEAR SHOES: CAST
- - BOOSTER PUMP:SUPERIOR SUPPLIED AND INSTALLED BOOSTER PUMP FOR FINES RECOVERY
- DISCHARGE PRESSURE
- - TRANSPORT WHEELS: PORTABLE TRANSPORT WHEELS INCLUDES BRAKES LIGHTS 5TH
- WHEEL. TO BE TRANSPORTED LONG DISTANCES USE OF TRAILER RECOMMENDED.
- - LANDING GEAR: MANUAL CRANK-DOWN
- - PAINTED SUPERIOR GRAPHITE GREY WITH YELLOW GUARDING
- ELECTRICAL SWITCHGEAR - TRAVELS ON PLANT.
- - AES ELECTRICAL SWITCHGEAR EQUIPPED AS PER BELOW:
- - 48X36 BACK PANEL AND ENCLOSURE
- - 70 AMPMAIN BREAKER WITH OPERATOR
- - BUTTONS LOCATED IN PANEL DOOR
- - E-STOP
- - SAFETY HORN
- - 400 WATT PANEL HEATER
- - 15 HP SCREW
- - 40 AMP BREAKER
- - ACS850 VFD
- - 8 HP SCREEN MOTOR #1
- - 25 AMP BREAKER
- - SIZE 1 MOTOR STARTER
- - 8 HP SCREEN MOTOR #2
- - 25 AMP BREAKER
- - SIZE 1 MOTOR STARTER
- - 7.5 HP BOOST PUMP
- - 20 AMP BREAKER
- - SIZE 1 MOTOR STARTER
- - 1 KVA TRANSFORMER
- - 2 AMP FUSES FOR PRIMARY
- - 8 AMP FUSES FOR SECONDARY
- - 100- OF MAIN POWER CORD
- - GUARDING - WE DO NOT WARRANT THAT OUR GUARDS WILL MEET ALL
- LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE THEM
- CHECKED BY A LOCAL INSPECTOR
