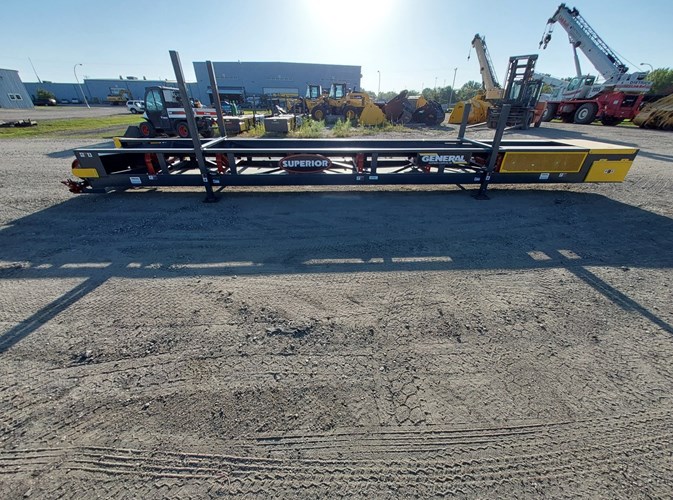

2022 Superior Conveyor - Transfer 36X30CFC
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR CONVEYOR
Inventory ID
E00064838
Serial
2275367
Machine Location
Details
- Inventory ID: E00064838
- Status: On Yard
- Make: Superior
- Model: 36X30CFC
- Year: 2022
- Serial#: 2275367
Notes
- -SUPERIOR 36 X 30 CHANNEL FRAME CONVEYOR EQUIPPED PER THE BELOW:
- -FRAME :
-MAIN FRAME - STRUCTURAL CHANNEL
-CROSS MEMBERS - WELD IN
-CONTAINERIZED - NOT INCLUDED
-DRIVE SPECIFICATIONS -
-DRIVE ›¼À“ CLASS 1 DRIVE HEAD
-GEAR REDUCER - DODGE SHAFT MOUNT
-BACKSTOP - NOT INCLUDED
-MOTOR - 15 HP TEFC
-V-BELT DRIVE - WITH DRIVE GUARD
-CAPACITY - 750 STPH OF 100 PCF MATERIAL 25 DEGREE SURCHARGE (90% FINES 10%
SPHERICAL LUMPS 7" MINUS) **›¼° LIFT.
-BELT SPEED -400 FPM
-DRIVE PULLEY - 14" DIAMETER 3/8" HERRINGBONE LAGGED DRUM
-TAIL PULLEY - 12" DIAMETER CEMA CHEVRON›¼® WING PULLEY
-SHAFTS - TURNED AND POLISHED
-BEARINGS - DODGE
-TAKE UPS - SCREW TYPE - -STATIONARY :
-CONVEYOR SPLICE - ONE PIECE FRAME
-EXTRA FRAME - UPPER FRAME PIECES
-TAIL STANDS - FRAME SUPPORT WITH PINS AND 5- UPRIGHT
-HEAD STANDS - FRAME SUPPORT WITH PINS AND 7" UPRIGHT
-LIFITING EYES - 2 CROSS SUPPORT WITH LIFITING EYE - -CONVEYOR COMPONENTS:
-BELTING - 3-PLY 3/16" X 1/16" 330PIW
-BELT SPLICE - FACTORY VULCANIZED BELT SPLICE
-BELT SCRAPER - SUPERIOR EXTERRA›¼® PRIMARY
-V PLOW - NOT INCLUDED
-SUPERIOR IDLERS - CEMA C 5" DIA. STEEL ROLLS SEALED FOR LIFE BALL BEARINGS
-IDLERBOLTS - 4-BOLTS PER TROUGHING IDLER
-IDLER SEAL - SUPERIOR STANDARD SPINGUARD›¼® SEAL
-LOAD AREA - 20›¼° TROUGH 12-16" SPACING
-TROUGH - 35›¼° ON 4- SPACING
-RETURNS - STEEL ROLLS ROLLS ON 10- SPACING
-SELF-ALIGNERS - NOT INCLUDED
-RECEIVING HOPPER - NOT INCLUDED
-RADIAL HOPPER - LINER
-GATHERING TROUGH - 5- LONG WITH ADJUSTABLE RUBBER FLASHING
-DISCHARGE HOOD - NOT INCLUDED - -ADDITIONAL SPECIFICATIONS:
-VOLTAGE - 480 V / 3 PH / 60 HZ CONTROL VOLTAGE 24 VDC
-ELECTRICAL: NO ELECTRICAL SWITCHGEAR - APPROXIMATELY 150- OF MAIN POWER CORD
ONLY
-PAINT - (1) COAT PRIMER (1) COAT ENAMEL: GRAPHITE GRAY
-GUARD PAINT - SAFETY YELLOW
-IDLER PAINT - POWDER COATED SUPERIOR ORANGE
-OWNER-S MANUAL -(1) COPY IN ENGLISH INCLUDED FOR OPERATION AND MAINTENANCE
-SIGN PLATE ›¼À“ GENERAL SIGN PLATE INCLUDED - -GUARDING - FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED
