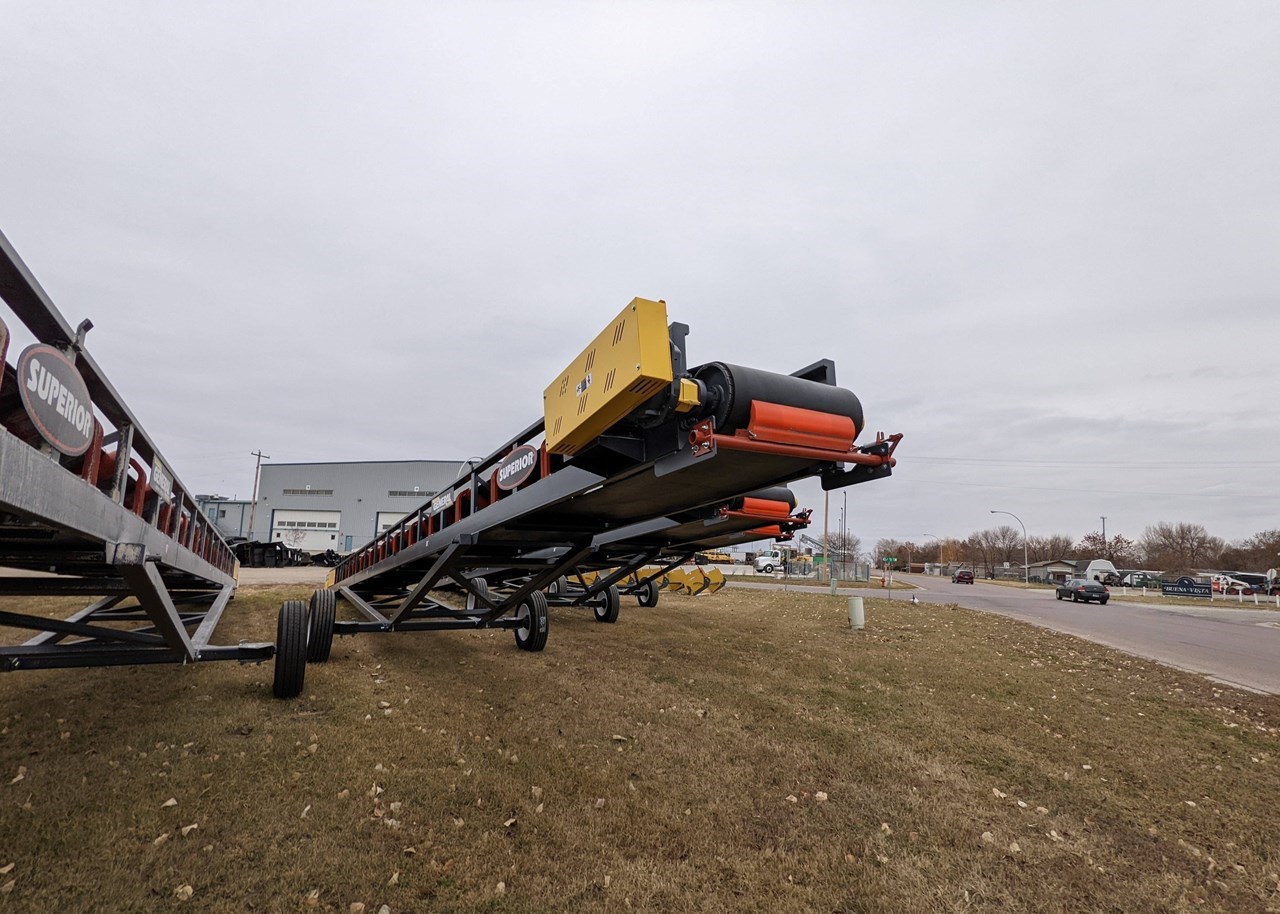

2022 Superior Conveyor - Stacking 36X60STKP
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR CONVEYOR
Inventory ID
E00063025
Serial
2075712
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00063025
- Status: On Rent
- Make: Superior
- Model: 36X60STKP
- Year: 2022
- Serial#: 2075712
Notes
- SUPERIOR 36" X 60- STACKABLE PLUS CONVEYOR:
- CONVEYOR FRAME:
- MAIN FRAME: 8" CHANNEL
- UPRIGHTS: 4" CHANNEL
- TOP CHORD: 4" X 2" TUBING
DRIVE SPECIFICATIONS:
- DRIVE: CLASS I HEAD END
- GEAR REDUCER: DODGE SHAFT MOUNT
- BACKSTOP:INSTALLED IN REDUCER
- MOTOR: 20 HP 1800 RPM TEFC
- V-BELT DRIVE: WITH DRIVE GUARD
- CAPACITY: 850 STPH OF 100 PCF MATERIAL 25 DEGREE SURCHARGE (90% FINES 10% SPHERICAL LUMPS 6" MINUS) 8- OF LIFT
- BELT SPEED: 400 FPM
SUPERIOR PULLEYS:
- DRIVE PULLEY: 14" DIAMETER 3/8" HERRINGBONE LAGGED DRUM
- TAIL PULLEY: 12" DIAMETER CEMA CHEVRON WING PULLEY
- SHAFTS: TURNED AND POLISHED
- BEARINGS: DODGE
- TAKE-UPS: SCREW TYPE
PORTABILITY:
- CONVEYOR SPLICE: ONE PIECE FRAME
- SUPPORT: NOT INCLUDED
- TAIL SUPPORT: NOT INCLUDED
- STACKABLE PLUS: INCLUDED
- UNDERCARRIAGE: MANUAL RAISE WITH PIN LOCK HEIGHT ADJUSTMENT 102" AXLE 11-
22.5 -TIRES AND SWIVELING WHEELS
- MOUNTING TABS: BOLT-ON OR WELD-ON (CHOOSE ONE)
- ANCHOR PIVOT: NOT INCLUDED
- BEND OPTION: NOT INCLUDED
- TOW EYE: PINTLE TYPE HITCH
- AXLE JACKS: NOT INCLUDED
CONVEYOR COMPONENTS:
- BELTING: 3-PLY 3/16 X 1/16 330 PIW
- BELT SPLICE: FACTORY VULCANIZED BELT SPLICE
-SCRAPER: SUPERIOR EXTERRA PRIMARY BELT SCRAPER
- SUPERIOR IDLERS: CEMA C 5" DIA. ROLLS SEALED FOR LIFE BALL BEARINGS
- IDLER SEAL: TITANIUM SPINGUARD SEAL
- LOAD AREA: 20›¼° TROUGH 12-16" SPACING
- TROUGH: 35›¼° ON 4- SPACING
- RETURNS: 4" STEEL ROLLS ON 10- SPACING
- RADIAL HOPPER: NOT INCLUDED
- GATHERING TROUGH: 5- LONG WITH ADJUSTABLE RUBBER FLASHING
ADDITIONAL SPECIFICATIONS:
- VOLTAGE: 480 V / 3 PH / 60 HZ
- ELECTRICAL PANEL: ELECTRICAL SWITCHGEAR WITH 200- OF MAIN POWER CORD
- PAINT: GRAPHITE GRAY (12-00636) W/ YELLOW GUARDING
- GUARD PAINT: SAFETY YELLOW
- SIGNPLATES: GENERAL SIGN PLATES INCLUDED
- IDLER PAINT: POWDER COATED SUPERIOR ORANGE
- OWNER-S MANUAL: (1) COPY IN ENGLISH INCLUDED FOR OPERATION AND MAINTENENACE
OPTIONS INCLUDED IN PRICE:
- FOLD DOWN HOPPER: 5- LONG 10" HIGH HINGED WITH 1" ROUND BAR FOR MATERIAL
SHELF
- FIFTH WHEEL: FOR ROAD TRAVEL BOLT-ON DESIGN
- WHEELS: HEAVY DUTY DOT RIMS WITH WELDIN 8-HOLE CENTER (VOIDS DOT RATING) - - GUARDING: FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED.
