Description
SUPERIOR SLIDE-PAC CONVEYOR
Inventory ID
E00061828
Serial
1964441
  • Email a friend

    Send to a Friend

    Fields with asterisks * are required
  • Loan Calculator

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Details

  • Inventory ID: E00061828
  • Status: On Yard
  • Make: Superior
  • Model: 36X70STSP-TRL
  • Year: 2022
  • Serial#: 1964441

Notes

  • SUPERIOR 36" X 70- SLIDE-PAC SYSTEM EQUIPPED AS PER BELOW:
  • CONVEYOR FRAME: - NO TOP CROSS LATTICES
    TRAILER UNIT:
    - MAIN FRAME: 30" DEEP TRUSS
    - CHORD ANGLES: 4" X 4" X 5/16"
    - LATTICE MEMBERS: 2" X 2" X 3/16"
    MIDDLE AND TOP UNIT:
    -MAIN FRAME: 30" DEEP TRUSS
    - CHORD ANGLES 4" X 4" X 1/4"
    - LATTICE MEMBERS: 2" X 2" X 3/16"
    - ROLLER ASSEMBLY: SINGLE SET ON HEAD END FOR EASY LOADING AND UNLOADING
  • DRIVE SPECIFICATIONS:
    - DRIVES: CLASS II HEAD END
    - GEAR REDUCERS:DODGE SHAFT MOUNT
    - MOTORS: 20 HP 1800 RPM TEFC
    - V-BELT DRIVE: WITH DRIVE GUARD
    - CAPACITY: 750 STPH OF 100 PCF MATERIAL 25 DEGREE SURCHARGE (90% FINES 10%
    SPHERICAL LUMPS 7" MINUS
    - BELT SPEED: 350FPM
    SUPERIOR PULLEYS; CROWN FACED:
    - DRIVE PULLEYS: 16" DIAMETER 3/8" HERRINGBONE LAGGED DRUM
    - TAIL PULLEYS: 14" DIAMETER CEMA CHEVRON PULLEY
    - SHAFTS: TURNED AND POLISHED
    - BEARINGS: DODGE
    - TAKE UPS: SCREW TYPE
  • PORTABILITY:
    - CONVEYOR SPLICE: ONE PIECE TRUSS FRAME
    - TOWING EYE: PINTLE TYPE HITCH

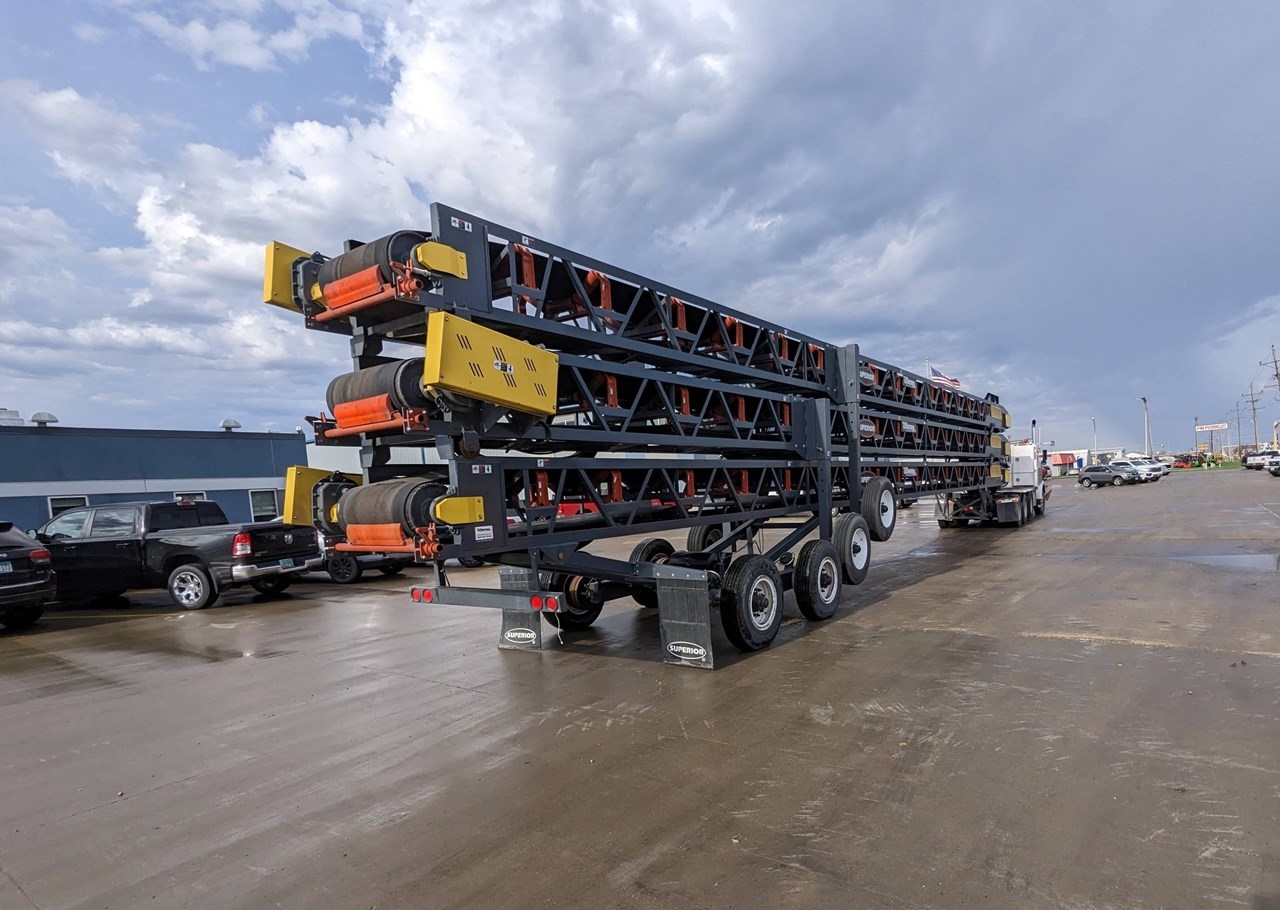

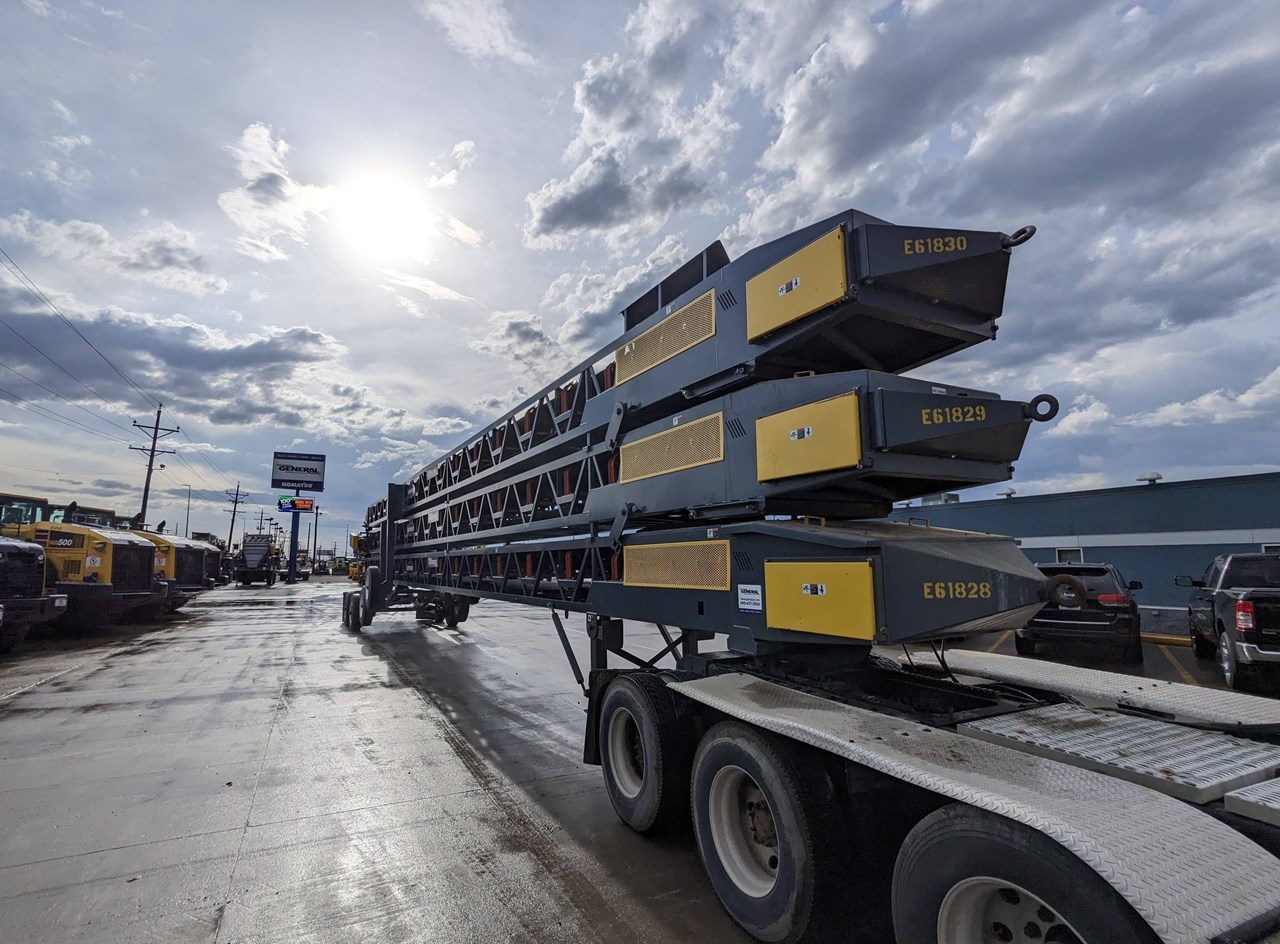

    TRAILER UNIT:
    - V-TYPE AXLE: 7-4" FIXED DISCHARGE HEIGHT WALKING BEAM AXLES NON-SWIVELING
    11R-22.5 WHEELS AND TIRES
    - SUPPORT LEGS: ADJUSTABLE HEIGHT FOLDING LEGS
    - FIFTH WHEEL: ON TRAILER UNIT
    - BRAKES: COMPLETE AIR SYSTEM
    - LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
    - MUD FLAPS: INCLUDED
    - TOW EYE: PINTLE TYPE HITCH
    MIDDLE UNIT:
    - STRUT AXLE: 10-6" ADJUSTABLE DISCHARGE HEIGHT NON-SWIVELING SINGLE 11-22.5 AG
    WHEELS AND TIRES
    TOP UNIT:
    - STRUT AXLE: 12-3" ADJUSTABLE DISCHARGE HEIGHT NON-SWIVELING SINGLE 11-22.5 AG
    WHEELS AND TIRES
    - FOLD DOWN LEGS: FIXED HEIGH FOR TOP AND MIDDLE UNITS
    - TRAILER ADJUSTABLE: GIVES TRAILER UNIT 10-6" DISCHARGE HEIGHT
  • CONVEYOR COMPONENTS:
    - BELTING: 3 PLY 3/16 X 1/16 330 PIW
    - BELT SPLICE: FACTORY VULCANIZED SPLICES
    - BELT SCRAPER: SUPERIOR EXTERRA PRIMARY
    - SUPERIOR IDLERS: CEMA C 5" DIA. ROLLS SEALED FOR LIFE BALL BEARINGS
    - MOUNTING: RECESSED INSIDE FRAME
    - LOAD AREA: 20 DEGREE RUBBER IMPACTS 16" SPACING
    - TROUGH: 35 DEGREE ON 4- SPACING
    - RETURNS: URETHANE RETURN ROLLERS
    - SKIRTING EXTENSION: 5- LONG 10" HIGH HINGED WITH 1" ROUND BAR FOR MATERIAL
    SHELF
    - GATHERING TROUGH: 5- LONG WITH ADJUSTABLE RUBBER FLASHING
  • ADDITIONAL SPECIFICATIONS:
    - POWER SUPPLY: 480V/3PH/60HZ
    - PAINT: GRAPHITE GRAY WITH YELLOW GUARDING
    - SIGNPLATES: GES SIGN PLATES
    - IDLER PAINT: POWDER COATED SUPERIOR ORANGE
    - OWNERS MANUAL: 1 COPY INCLUDED FOR OPERATION MAINTENANCE AND PARTS

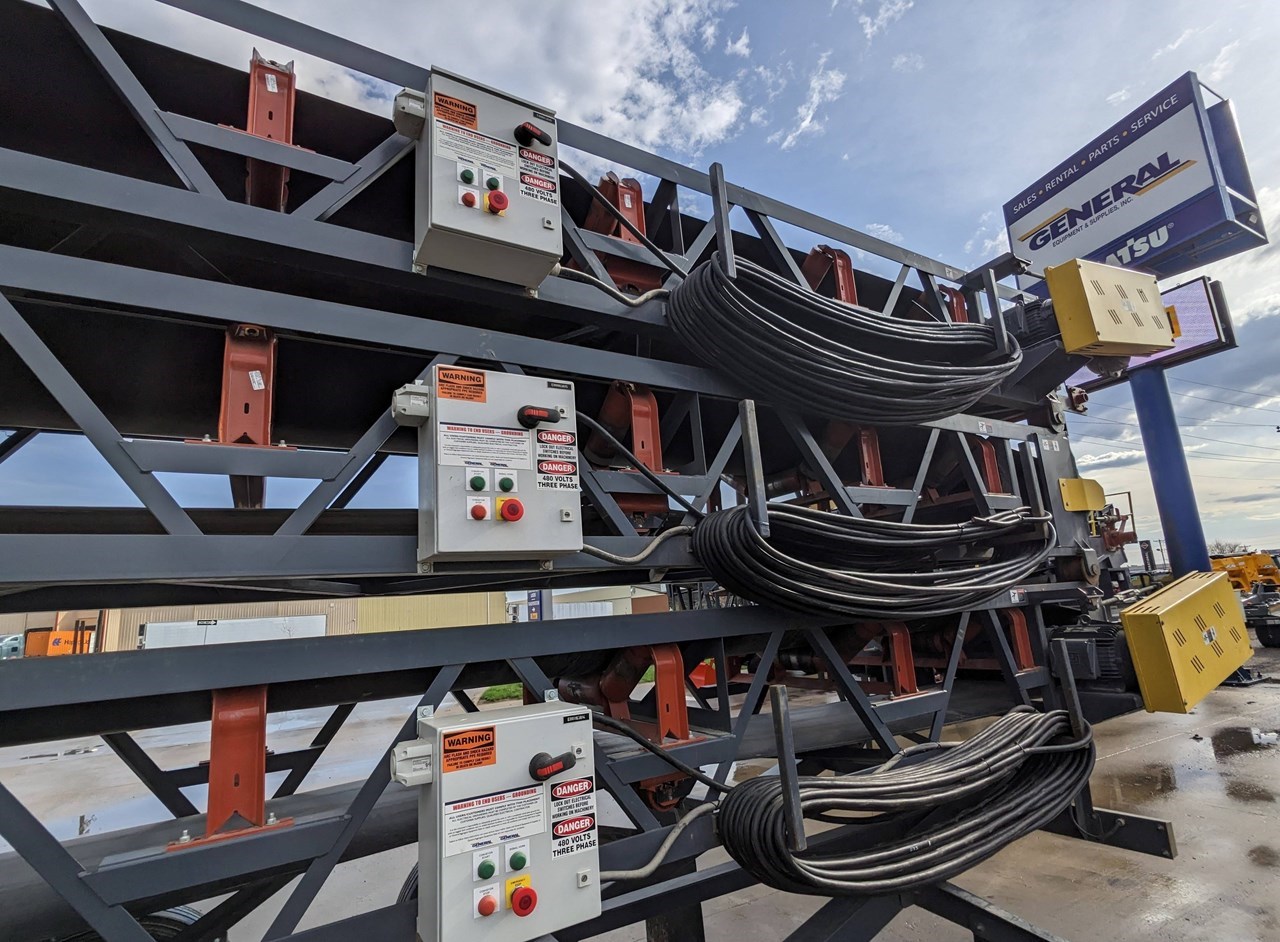

    - ELECTRICAL: ELECTRICAL SWITCHGEAR ON EACH CONVEYOR WITH 333- OF MAIN POWER
    CORD ON EACH CONVEYOR
    - GUARDING: FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
    MAY NOT MEET ALL LOCAL CODES CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
    INSPECTED.
