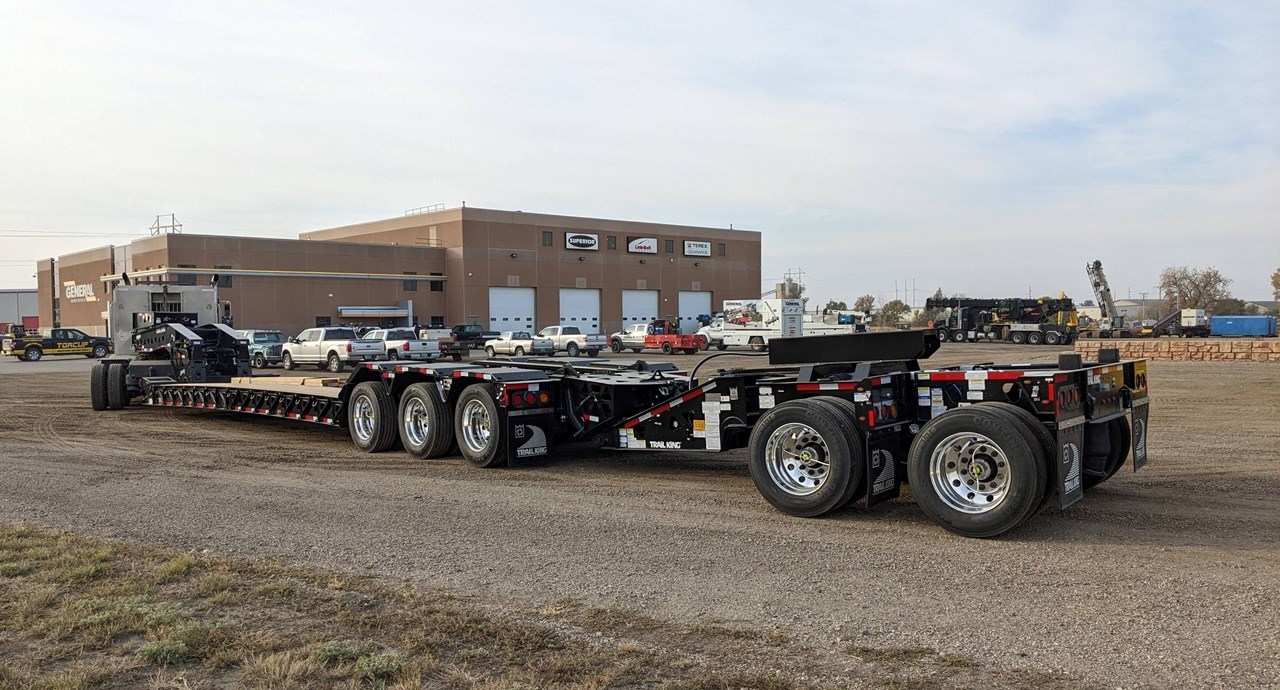

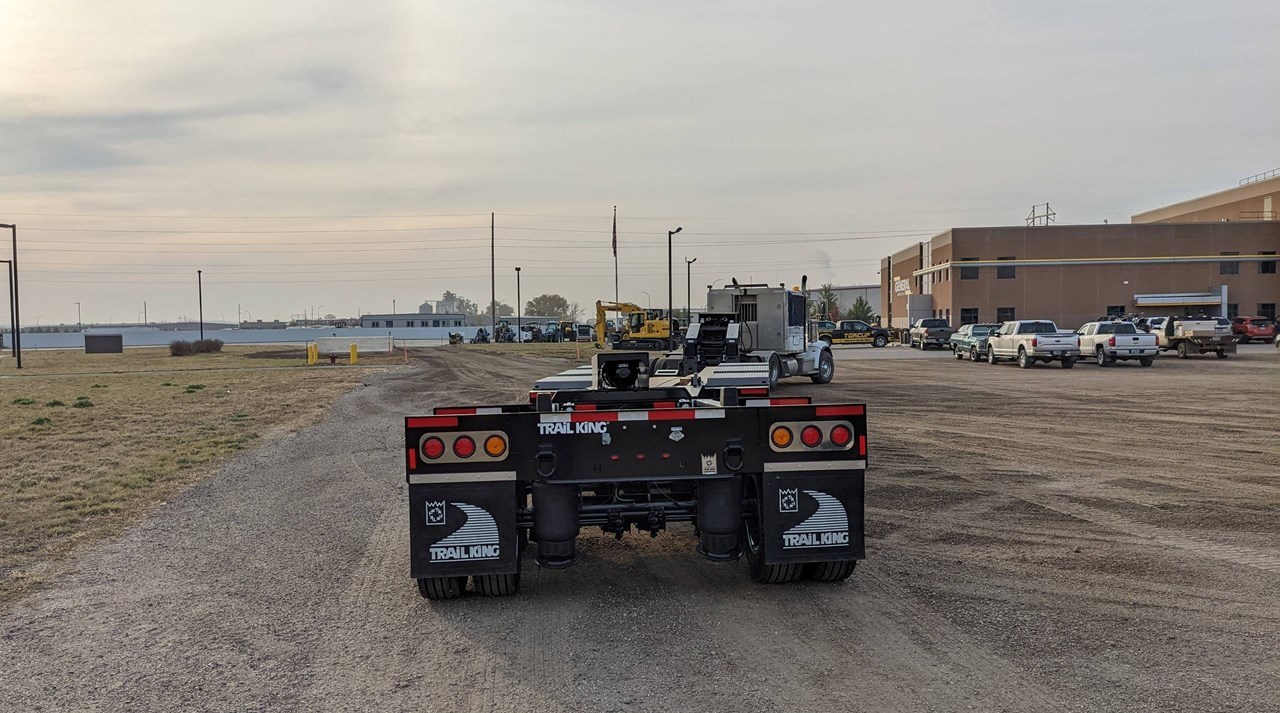

2023 Trail King Trailer - Equipment TK120HDG
Fields with asterisks * are required.
Print This Page
Description
TRAIL KING TRAILER
Inventory ID
E00059969
Serial
1TKJ05736PM091756
Machine Location
Details
- Inventory ID: E00059969
- Status: On Yard Available Immediately
- Make: Trail King
- Model: TK120HDG
- Year: 2023
- Serial#: 1TKJ05736PM091756
Notes
- TK120HDG ADVANTAGE PLUS HYDRAULIC DETACHABLE EQUIPPED PER THE BELOW:
- - 120 000 LBS IN 16 FEET
- GOOSENECK ARCHED FOR INCREASED TRUCK FENDER CLEARANCE
- HYDRAULIC SELF-LIFTING DETACHABLE GOOSENECK
-(CAN LIFT ABOVE OR BELOW TRANSPORT POSITIONS)
- GOOSENECK DOESN-T REQUIRE GROUND BEARING PADS"
- RUBBER MOUNTED SEALED LIGHTS AND HARNESS SYSTEM
- ELECTRICAL SYSTEM PER DOT REGULATIONS
- RED & WHITE CONSPICUITY MARKINGS
- BLASTED PRIOR TO PAINT" - - TK120HDG ADVANTAGE PLUS HYDRAULIC DETACHABLE 120 000 LBS IN 16 FEET
PTO HYDRAULICS
- 7-POSITION GOOSENECK HEIGHT ADJUSTMENT +3"/-7" (N/A ON PAVER STYLE)
- HYDRAULIC GOOSENECK SUPPORT ARM
- AIR-ACTIVATED POSITIVE SELF-LOCKING PIN
- 24" LOADED DECK HEIGHT 8" GROUND CLEARANCE
- CONC. IN 16- - 28- 0" DECK LENGTH (TANDEM AXLE BOOSTER REINFORCEMENT)
- 108" DECK WIDTH DECK AND WHEEL AREA
- FULL-WIDTH DECK - 4 BEAM MAIN FRAME CONSTRUCTION
- I-BEAM CROSSMEMBERS ON 24" CENTERS
- 4STUBS BETWEEN CROSSMEMBERS IN OUTER BAYS FOR 12" CENTERS IN OUTER BAYS
- TRIANGLE CUT-OUTS ON DECK BEAMS AND BOLSTER
- KNUCKLE TROUGH AT REAR OF DECK - 72" LONG COVERED WITH 1/4" STEEL
- FIXED WHEEL AREA - INCLUDES FRONT HALF BOLSTER
-LOAD-BEARING REMOVABLE TAPERED WHEEL COVERS
- LOWERED CROSSMEMBERS IN WHEEL AREA
- FULL DEPTH BOOM TROUGH IN WHEEL AREA
- BRACKETS AIR AND ELECTRICAL FOR ADDITIONAL AXLES
- 1 3/4 APITONG DECKING (RAISED)
- ADDITIONAL BENT D-RINGS TOFILL OUT DECK
- 2 STRAIGHT D-RINGS MOUNTED AT REAR OF WA ON TOP FLANGE
- SWINGOUT OUTRIGGERS WITH PULLOUT HD OUTRIGGER AT FRONT DOUBLE SWINGOUTS AT
CENTER AND 4- STORAGE PAN
- OUTRIGGER PLANKS LOOSE
- FRONT RAMPS (31" STD DECK 42" TAPERED DECK N/A ON RAIL DECK)
- AIR SUSPENSION CONTROL PANEL IN END OF BOLSTER AHEAD OF REAR AXLE
- 27 000-LB. (3/4" WALL) AXLES
- AIR RIDE SUSPENSION
- 3RD AXLE AIR LIFT WITH DUAL RIDE HEIGHT CONTROL
- RAISING/LOWERING AIR CONTROL PANEL (INCLUDES LIQUID FILLED AIR GAUGE)
- ONE-PIECE OIL SEALS
- CONC. IN 16- - 55" AXLE SPACING (TANDEM AXLE BOOSTER REINFORCEMENT)
- NO ABS WITH SPRING BRAKES (1ST AND 2ND AXLES)
- 16.5" X 7" AIR BRAKES
- AUTOMATIC SLACK ADJUSTERS
- STEEL HUB-PILOTED - CAST DRUM - TAPERED SPINDLE (PER COMPLETE AXLE)
- 8.25 X 22.5 10-HOLE MACHINED (SP) ALUMINUM WHEEL (PER WHEEL) ACCURIDE ILO STD
8.25 X 22.5 10-HOLE STEEL DISC WHEEL
- 8.25 X 22.5 10-HOLE POLISHED (XP) ALUMINUMWHEEL (PER WHEEL) ACCURIDE ILO STD
8.25 X 22.5 10-HOLE STEEL DISC WHEEL
- NO SPARE WHEEL
- CONTINENTAL 275/70R22.5 HSR2 - 18 PLY
- NO SPARE TIRE
- MUDFLAPS
- ONE PAIR OF 4" ROUND QUAD FLASH AMBER STROBES AT REAR W/ SWITCH MOUNTED ON
DRIVERS SIDE REAR BOLSTER ILO 3RD TAIL LIGHT PACKAGE
- LED LIGHTS
- 7-POLE ELECTRICAL CONNECTOR
- EXTRA CLEARANCE LIGHT PACKAGE CUT INTO WEB O-X-O-X-O
- FLAGHOLDERS FRONT OF DECK AND REAR OF TRAILER
- FOLDING ALUM WIDE LOAD SIGNBRACKETS ONLY
- S7203 BLACK WITH WHITE DECALS
- ZINC-RICH PRIMER - ADDITIONAL OPTIONS:
- "201327 TK120HDG+ - 20- GOOSENECK WITH 15-0"" BASE NECK AND 60"" FLIP
EXTENSION IN LIEU OF STD 13- ADV+ GOOSENECK. BASE NECK WILL INCLUDE 16"" &
40"" KP SETTINGS - FLIP NECK WILL HAVE 16"" KP SETTING
- "200214 TK110HDG+ - 52"" FIFTH WHEEL HEIGHT ILO STD 50"". USE FOR ALL DECK
HEIGHTS AND ALL GN LENGTHS.
(CUSTOMER TO VERIFY ACCURACY)"
- "200646 HDG+ - HYDRAULIC ASSIST FOR GOOSENECK FLIP - OPERATED BY EXISTING GN
HYDRAULICS WHICH INCLUDES HYDRAULIC CONNECTIONS ON THE SIDE AS WELL AS THE
STANDARD LOCATION. PLUMBED BEFORE PAINT.
- "201198 TK120HDG - GN FLIP AND BASE TO BE HYDRAULICALLY HARDLINED USING RUN
TEES FOR THE PTO QUICK -DISCONNECT CONNECTIONS. REFERENCE 77352.DWG
- "201197 HDG+ - FRONT TRANSITION BOOM PLATE TO BE 1/2"" THICK AND REMOVABLE
WITH CHAIN SLOTS FOR LIFTING ILO STD 10 GUAGE (MIDDLE AND REAR BOOM PLATES TO
BE STD)
- ADD UPPER BRACKETS FOR HYDRAULIC BOOSTER
- SPRING ASSIST OPTION FOR FRONT RAMPS
- PSI TIRE INFLATION SYSTEM (PER AXLE GROUP)
- QUICKMOUNT FLAG HOLDERS (2 FOR FRONT OF TRAILER AND 2 FOR REAR OF TRAILER)
- 4-POLE SOCKET WIRED TO CLEARANCE LIGHT
- 1 PR STRAIGHT D-RINGS ON REAR FLANGE OF GOOSENECK RISER SECTION
- 2 PR BENT D-RINGS IN KNUCKLE TROUGH
- REMOTE FLASHER W/ BATTERY BACK-UP WITH SWITCH MOUNTED ON DRIVERS SIDE REAR
BOLSTER
- STAINLESS INSERTS AROUND LIGHTS IN TAIL CHANNEL
- 2 PR BENT D-RINGS IN WHEEL AREA TRANSITION
- 1 PR STRAIGHT D-RINGS LOCATED ABOVE EACH CROSSMEMBER IN WHEEL AREA
- "200564 HDG - DELETE ALL STANDARD FLAG HOLDERS
- "200893 TKHDG - 8- KNUCKLE TROUGH ILO6- WITH 16"" BEAM.
- DOT INSPECTION
- BENT D-RINGS - PER PAIR - 1 PAIR UNDER TOP FLANGE INNER BEAMS FOR CROSS TYING - BAY BEHIND STORAGE PAN 2 MIDDLE OF DECK AND BAY AHEAD OF KNUCKLE TROUGH
