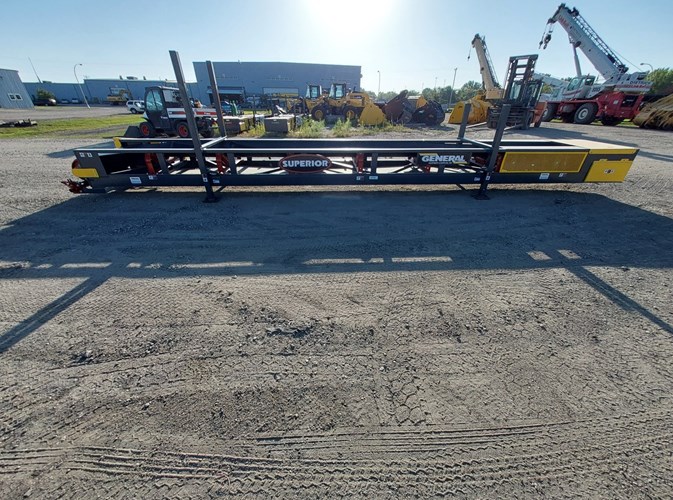

2024 Superior Conveyor - Transfer 36X30CFC
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR CONVEYOR
Inventory ID
E00068256
Serial
2417394
Machine Location
Details
- Inventory ID: E00068256
- Status: On Yard
- Make: Superior
- Model: 36X30CFC
- Year: 2024
- Serial#: 2417394
Notes
- SUPERIOR 36 X 30 CHANNEL FRAME CONVEYOR EQUIPPED AS PER BELOW:
- FRAME :
- MAIN FRAME - STRUCTURAL CHANNEL
- CROSS MEMBERS - WELD IN
- CONTAINERIZED - NOT INCLUDED - DRIVE SPECIFICATIONS:
- DRIVE ›¼À“ CLASS 1 DRIVE HEAD
- GEAR REDUCER - DODGE SHAFT MOUNT
- BACKSTOP - NOT INCLUDED
- MOTOR - 15 HP TEFC
- V-BELT DRIVE - WITH DRIVE GUARD
- CAPACITY - 750 STPH OF 100 PCF MATERIAL 25 DEGREE SURCHARGE (90% FINES 10%
SPHERICAL LUMPS 7" MINUS) **›¼° LIFT.
- BELT SPEED - 400 FPM
- DRIVE PULLEY - 14" DIAMETER 3/8" HERRINGBONE LAGGED DRUM
- TAIL PULLEY - 12" DIAMETER CEMA CHEVRON›¼® WING PULLEY
- SHAFTS - TURNED AND POLISHED
- BEARINGS - DODGE
- TAKE UPS - SCREW TYPE - STATIONARY :
- CONVEYORSPLICE - ONE PIECE FRAME
- EXTRA FRAME - UPPER FRAME PIECES
- TAIL STANDS - FRAME SUPPORT WITH PINS AND 5- UPRIGHT
- HEAD STANDS - FRAME SUPPORT WITH PINS AND 7" UPRIGHT
- LIFITING EYES - 2 CROSS SUPPORT WITH LIFITING EYE - CONVEYOR COMPONENTS:
- BELTING - 3-PLY 3/16" X 1/16" 330PIW
- BELT SPLICE - FACTORY VULCANIZED BELT SPLICE
- BELT SCRAPER - SUPERIOR EXTERRA›¼® PRIMARY
- V PLOW - NOT INCLUDED
- SUPERIOR IDLERS - CEMA C 5" DIA. STEEL ROLLS SEALED FOR LIFE BALL BEARINGS
- IDLER BOLTS - 4-BOLTS PER TROUGHING IDLER
- IDLER SEAL - SUPERIOR STANDARD SPINGUARD›¼® SEAL
- LOAD AREA - 20›¼° TROUGH 12-16" SPACING
- TROUGH - 35›¼° ON 4- SPACING
- RETURNS - STEEL ROLLS ROLLS ON 10- SPACING
- SELF-ALIGNERS - NOT INCLUDED
- RECEIVING HOPPER - NOT INCLUDED
- RADIAL HOPPER - LINER
- GATHERING TROUGH - 5- LONG WITH ADJUSTABLE RUBBER FLASHING
- DISCHARGE HOOD - NOT INCLUDED - ADDITIONAL SPECIFICATIONS:
- VOLTAGE - 480 V / 3 PH /60 HZ CONTROL VOLTAGE 24 VDC
- ELECTRICAL SWITCHGEAR WITH 150- OF MAIN POWER CORD
- PAINT - (1) COAT PRIMER (1) COAT ENAMEL: GRAPHITE GRAY
- GUARD PAINT - SAFETY YELLOW
- IDLER PAINT - POWDER COATED SUPERIOR ORANGE
- OWNER-S MANUAL -(1) COPY IN ENGLISH INCLUDED FOR OPERATION AND MAINTENANCE
- SIGN PLATE ›¼À“ GENERAL SIGN PLATE INCLUDED
- GUARDING - FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED
