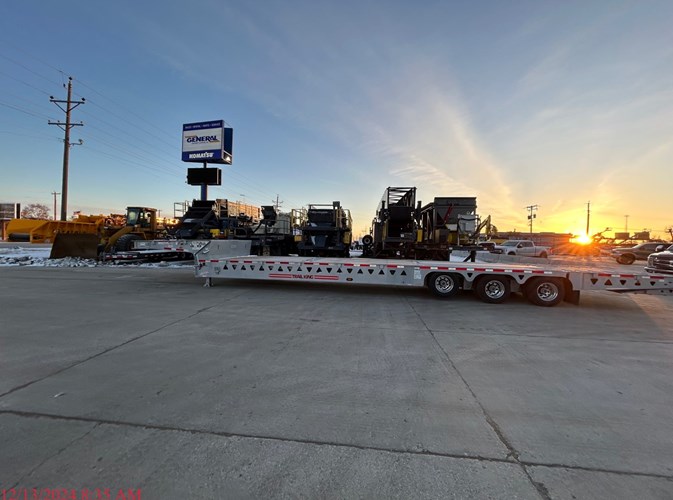

2025 Trail King Trailer - Equipment TK110HT
Fields with asterisks * are required.
Print This Page
Description
TRAIL KING TRAILER
Inventory ID
E00070998
Serial
1TKA05132SM096695
Machine Location
Details
- Inventory ID: E00070998
- Status: On Yard Available Immediately
- Make: Trail King
- Model: TK110HT
- Year: 2025
- Serial#: 1TKA05132SM096695
Notes
- TRAIL KING TK110HT HYDRAULIC TAIL TRAILER
- - 47- 11" OVERALL LENGTH
- 102" OVERALL WIDTH
- ZINC-RICH PRIMER
- S7265 DARK GREY METALLIC WITH WHITE DECALS
- RED & WHITE CONSPICUITY MARKINGS
- ADD 3RD AXLE TO FRONT OF TANDEM GROUP ON TK80HT
- INCLUDES STANDARD TIRES AND WHEELS
- ADD AIR LIFT TO FRONT ACLE OF THE 3 AXLE TRAILER - GOOSENECK
- 49" LOADED 5TH WHEEL HEIGHT
- 9-0" STRAIGHT DROP UPPER DECK (14" KINGPIN SETTING WITH 88" SWING CLEARANCE)
- NO HEADBOARD
- 2 SIDE ACCESS TOOL BOXES AT FRONT OF UPPER DECK
- 10-GA. FLOOR PLATE DECKING ON UPPER DECK
- 20 000 LB. HYDRAULIC WINCH WITH LEVEL WIND (MOUNTED ABOVE KING PIN) - INCLUDES
9/16" X 80- CABLE
- WINCH GUARD
- WINCH CABLE SKID PLATE AT REAR OF UPPER DECK
- PTO HYDRAULICS
- PUSH - PULL STYLE HYDRAULIC VALVE CONTROLS W/FULL- FUNCTION WIRELESS REMOTE
CONTROLS ( DUAL SIDE CONTROLS)
- INTERNAL 2-WAY KEY SLOTS ALTERNATING WITH EXTERNAL STAKE POCKETS IN OUTER
BEAMS ON UPPER DECK FOR TIEDOWNS APPROXIMATELY 24" OC
- 2-SPEED PARK STANDARDS ( CRANK ROAD SIDE) - DECK
- 10- HYD. RECESSED UPPER DECK RAMP W/ RAMP LOCKS
- SINGLE DROP DECK
- 8- AND 10" CROSSMEMBERS ON 12" CENTERS
- STAINLESS STEEL HINGE PINS ON MAIN TAIL AND FOLD-UNDER
- 1 3/8" APITONG DECK RAISED ( DECK AND UPPER DECK RAMP)
- 1/4 " FLOOR PLATE OVER WHEELS W/ LAST 2- STAR TRACTION OVER 1/4" SMOOTH STEEL
(WOOD IN CENTER BAY)
- STAR TRACTION OVER 10GA TAIL
- STAR TRACTION OVER 10GA SMOOTH STEEL FOLDING UNDER
- TAIL RAISES TO 58" DOCK HEIGHT AND LOWERS TO GROUND
- AIR OPERATED TAIL LOCK W/ INTEGRATED FOLD UNDER LOCK
- INTERNAL 2-WAY KEY SLOTS ALTERNATING WITH EXTERNAL STAKE POCKETS IN OUTER
BEAMS ON MAIN DECK AND MAIN TAIL FORTIE DOWNS APPROXIMATELY 24" OC ( INTERNAL
2-WAY KEY SLOTS IN WA)
- TRIANGLE CUT-OUTS
- FOLD-DOWN STEP AND HANDLE ROAD SIDE - SUSPENSION
- AIR RIDE SUSPENSION
- WHEEL END LUBE TYPE - OIL
- AIR RIDE RAISE AND LOWERING WITH CONTROLS & LIQUID FILLED AIR GAUGE ON DRIVERS
SIDE OF UPPER DECK
- 25 000 LC. CAPACITY FULL WIDTH AXLES
- 49" AXLE SPACING
- 12.25 X 7.5 DRUM BRAKES FOR 17.5 WHEELS
- 4S2M ABS BRAKES
- STEEL HUB PILOTED CAST DRUM TAPERED (D) SPINDLE (PER COMPLETE AXLE)
- FOR 36" DECK HEIGHT SELECT 17.5 WHEELS AND TIRES
- 6.75 X 17.5 8- HOLE MACHINED (SP) ALUMINUM WHEEL (PER WHEEL) ILO STD 6.75 X
17.5 8-HOLE STEEL DISC WHEEL (6)
- 6.75 X 17.5 8-HOLE POLISHED (XP) ALUMINUM WHEEL (PER WHEEL) ILO STD 6.75 X
17.5 8-HOLE STEEL DISC WHEEL (6)
- NO SPARE WHEEL
- CONTINENTAL 245/70R17.5 HTL2 - 18PLY
- MUDFLAPS - ELECTRICAL
- GROTE LET LIGHTS
- SINGLE MID-TURN SIGNAL W/ CLEARANCE LIGHTS X-O-X (WHOLE TRAILER)
- 3RD TAIL LIGHT PACKAGE
- GROTE SEALED ELECTRICAL HARNESS SYSTEM
- FLAG HOLDERS AT REAR OF TRAILER
- DOT INSPECTION - ***FET INCLUDED IN PRICE***
