2026 FABTEC Feeder 3616SBF
Fields with asterisks * are required.
Print This Page
Description

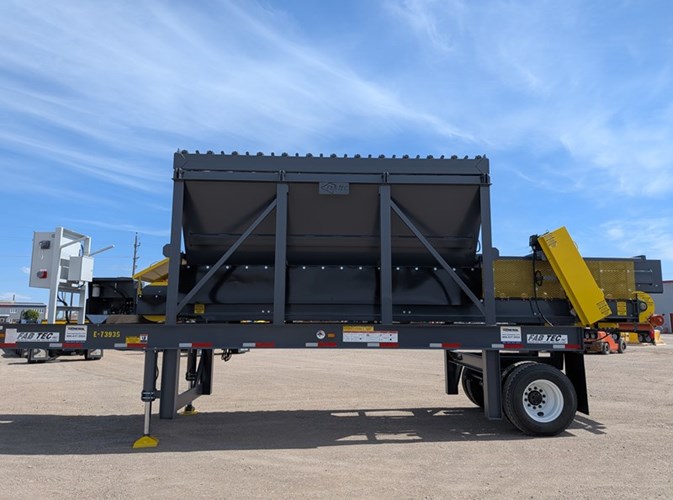

FABTEC BELT FEEDER
Inventory ID
E00073935
Serial
BF-36-16-440-26
Machine Location
Details
- Inventory ID: E00073935
- Status: On Yard
- Make: FABTEC
- Model: 3616SBF
- Year: 2026
- Serial#: BF-36-16-440-26
Notes
- FAB TEC PORTABLE 36" X 16- BELT FEEDER:
- 36" X 22- BELT FEEDER:
- TOSHIBA 20 HP TEFC MOTOR.
- 5215 FALK SHAFT MOUNT REDUCER AND ›¼Â–120 SPROCKETS.
- 2 15/16" SHAFTS AND DODGE SCM BEARINGS.
- 16" VULCANIZED LAGGED HEAD PULLEY AND 16" SELF-CLEANING WING TAIL PULLEY.
- CLOSE SPACING ON CEMA C5 FRD RUBBER DISC CARRIER ROLLERS.
- 3 PLY BELT 1/4 COVER VULCANIZED SPLICE.
- DISCHARGE CLEARANCE HEIGHT OF 5- 9".
- CANOE LINER FLASHING IN HOPPER AND ON CONVEYOR.
- RUBBER DISC RETURNS
- SUPERIOR XTERRA CLICK WIPER - 8- X 16- 3/8" PLATE HOPPER WITH REINFORCEMENT CHANNEL.
- STANDARD REVERSIBLE SELF RELIEVING HYDRAULIC DUMP GRIZZLY:
- GRIZZLY BARS 3/4" X 7" FB AND 2" ROUND BAR. (5.5" CLEAR SPACING)
- SELF-RELIEVINGGRIZZLY BARS: EVERY OTHER GRIZZLY BAR HINGES TO RELIEVE STUCK
MATERIAL DURING DUMP CYCLE.
- 10 HP TEFC VICKERS V20 PUMP WITH SPOOL VALVE.
- 4" BORE 36" STROKE CYLINDERS.
- HYDRAULIC TANK WITH FILTER PROTECTION. - HOPPER LOAD RELIEF SHELF.
- FEED GATE WITH WEIGHTS.
- SINGLE AXLE CARRIER 14" WF 30# BEAMS:
- HUTCH LEAF SPRING SUSPENSION.
- 22 500# AXLE 11:00RX22.5 DUAL TIRES.
- AIR BRAKES LED TAIL AND BRAKE LIGHTS LED MARKER LIGHTS LED STROBE LIGHT REFLECTIVE TAPE AND MUD FLAPS. - SAFETY GUARDS SAND BLASTED CHASSIS RUST INHIBITOR PRIMER AND TWO FINISH COATS OF PAINT INCLUDED.
- OPTIONS:
- 2-LEG FAB TEC PLANT MOUNTED HYDRAULIC STABILIZING SYSTEM: (NON RUN-ON)
- FAB TEC CYLINDERS 6" X 18" STROKE 70 000 LB. CAPACITY WITH SAFETY-LOK CIRCUIT.
- DELTA HPX-200 12-VOLT POWER UNIT
- (1) SPOOL VALVE~ NUMBER OF BANKS TO MATCH LEG QUANTITY.
- CYLINDER MOUNTING HARDWARE.
- HEAVY DUTY FOOT PADS. - GUARDING - WE DO NOT WARRANT THAT MANUFACTURERS- GUARDING WILL MEET ALL LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE GUARDING CHECKED BY A LOCAL INSPECTOR PRIOR TO STARTUP OF EQUIPMENT OPERATIONS CORRECTIVE ACTIONS AND ASSOCIATED EXPENSE ARE THE RESPONSIBILITY OF THEEND USER.
