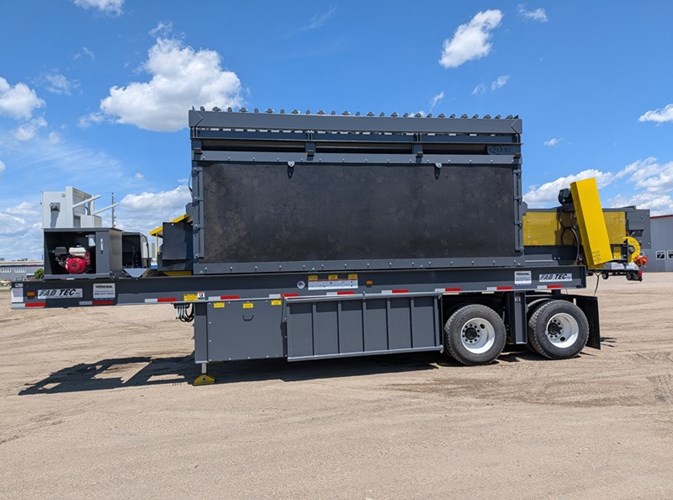

2026 FABTEC Feeder 3618SBF
Fields with asterisks * are required.
Print This Page
Description
FABTEC BELT FEEDER
Inventory ID
E00074014
Serial
BF-36-18-442-26
Machine Location
Details
- Inventory ID: E00074014
- Status: On Yard
- Make: FABTEC
- Model: 3618SBF
- Year: 2026
- Serial#: BF-36-18-442-26
Notes
- FABTEC PORTABLE 36" X 18- HEAVY DUTY BELT FEEDER WITH 9- X 18- HOPPER:
- 36" X 28- BELT FEEDER; TOSHIBA 20 HP TEFC MOTOR:
- DOUBLE REDUCTION DRIVE FALK 5215 25 TO 1 REDUCER AND ›¼Â–140 CHAIN DRIVE.
- 2 15/16" HEAD TAIL AND JACK SHAFT WITH DODGE SCM BEARINGS.
- FRD FLAT RUBBER DISC IDLERS ON CLOSE SPACING ON 5" SPACING WITH HEAVY DUTY BRACKETS.
- 16" VULCANIZED LAGGED HEAD PULLEY AND 16" SELF-CLEANING WING TAIL PULLEY.
- ADJUSTABLE HEIGHT FOR CONVEYOR TO HOPPER.
- NEWLY DESIGNED HOPPER WITH VERTICAL ENDS WITH CANOE LINER FLASHING.
- MOUNTED ON SLIDERS FOR MAINTENANCE.
- RUBBER DISC RETURNS
- 3-PLY ›¼¼ COVER BELTING WITH VULCANIZED SPLICE
- XTERRA CLICK WIPER - 9- X 18- 16.5 C.Y. FEED HOPPER: 3/8" PLATE 6" X 6" X 1/2" ANGLE IRON AND 8" WF SUPPORTS:
- HEAVY DUTY RELIEF SHELF.
- WEIGHTED DISCHARGE GATE - SELF-RELIEVING REVERSIBLE HYDRAULIC DUMP GRIZZLY:
- 2 ›¼½" C1045 ROUND BAR IN RELIEF AREAS AND HOT ROLLED ON THE FIXED BARS.
-10 HP ELECTRIC OVER HYDRAULIC POWER PACKAGE.
- 4" BORE 36" STROKE 2.5" SHAFT.
- HYDRAULIC TANK WITH FILTER PROTECTION.
- HEAVY DUTY FRAME.
- SELF-RELIEVING GRIZZLY BARS. (EVERY OTHER BAR)
- 5 ›¼½" TO 6 ›¼½" CLEAR SPACING. - TANDEM AXLE CARRIER 16" WF BEAMS:
- 9700 HUTCH SUSPENSION.
- 11:00X22.5 TIRES 22 500 AXLES TEN HOLE PILOTED HUB WHEELS.
- GROUND SUPPORT LEGS WITH JACKING LEGS.
- AIR BRAKES LED BRAKE LIGHTS LED MARKER LIGHTS LED STROBE LIGHT REFLECTIVE TAPE AND MUD FLAPS. - BOLT ON 3/16" PLATE SIDE PANELS TO COVER AREA UNDER BELT FEEDER BETWEEN LEGS (BOTH SIDES) GES STYLE.
- REMOVABLE 2 PLY RUBBER CURTAINS BOTH SIDES OF HOPPER:
- SAFETY GUARDS SANDBLASTED CHASSIS RUST INHIBITOR PRIMER AND TWO FINISH COATS OF PAINT INCLUDED.
- INCLUDED OPTIONS:
- 3/16" FOLD DOWN SIDE PANELS TO COVER TIRES:
- (4) LEG FAB TEC PLANT MOUNTED HYDRAULIC STABILIZING SYSTEM: (NON RUN-ON)
- FAB TEC CYLINDERS 6" X 18" STROKE 70 000 LB. CAPACITY WITH SAFETY-LOK CIRCUIT.
- DELTA HPX-200 12-VOLT POWER UNIT (THIS IS THE PREFERRED POWER)
- (1) SPOOL VALVE~ NUMBER OF BANKS TO MATCH LEG QUANTITY.
- CYLINDER MOUNTING HARDWARE.
- HEAVY DUTY FOOT PADS. - SELF CONTAINED HONDA 8 HP HYD.POWER PACKAGE ~VS~ HPX 200 12V:
- ELECTRIC START.
- 12 GALLON HYDRAULIC RESERVOIR WITH FILTER PROTECTION.
- 2 1/2 GPM PUMP. - GUARDING - WE DO NOT WARRANT THAT MANUFACTURERS- GUARDING WILL MEET ALL LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE GUARDING CHECKED BY A LOCAL INSPECTOR PRIOR TO STARTUP OF EQUIPMENT OPERATIONS CORRECTIVE ACTIONS AND ASSOCIATED EXPENSE ARE THE RESPONSIBILITY OF THE END USER.
