Photo Count: 4-
Price:
$240,000 USD -
Location:
Rapid City, South Dakota - (800) 437-2924
Interested in this machine? Send us a message
PriceWatch
Subscribe to be notified of price changes on this item.

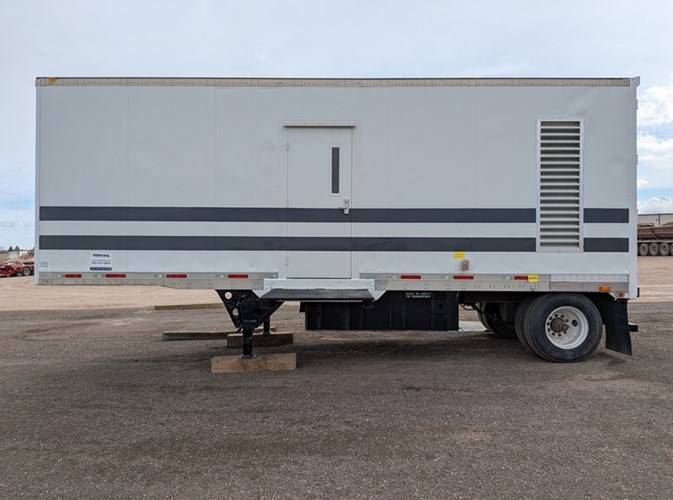

2022 AES Power Van PWRVAN
Fields with asterisks * are required.
Print This Page
Description
380 KW PUP VAN
Inventory ID
E00065652
Serial
65652-4528
Machine Location
Details
- Inventory ID: E00065652
- Status: On Yard
- Make: AES
- Model: PWRVAN
- Year: 2022
- Serial#: 65652-4528
Notes
- VOLVO 380KW POWER PUP VAN EQUIPPED PER THE BELOW:
- - DRY STYLE RECONDITIONED 28- X 102" VAN WITH REAR SWING DOORS
- - ROAD READY WITH MINIMUM 50% BRAKES AND GOOD WORKING LIGHTS
- FED DOT
- - PLATFORM STYLE STEPS WITH HANDRAILS AND MOUNTING BRACKETS
- INSTALLED SIDE DOOR
- - INTERIOR WIRING WITH 100 AMP QO LOAD CENTER (1) 240V 50 AMP
- RECEPTACLE (2) 120V GFI RECEPTACLES (1) LED 4FT INTERIOR LIGHT
- - 15 KVA TRANSFORMER AND DISCONNECT SWITCH HIGH EFFICIENCY RATED
- - FIRE EXTINGUISHER AND BRACKET
- - POLYURETHANE FLOOR PAINT (GRAY) WITH NO-SLIP SAND ADDITIVE
- VOLVO 380 KW PORTABLE GENERATOR SET EQUIPPED WITH:
- - VOLVO PENTA MODEL TAD1641VE 16 LITER INLINE 6 ENGINE TURBOCHARGED AND
- AFTERCOOLED RATED AT 5XX BHP WITH RACOR TURBINE STYLE PREFILTER #900FH30
- - ENGINE INCLUDES RADIATOR FUEL HOSES PUSHER FAN RAD GUARD BELT GUARD
- MUFFLER ASSEMBLY
- - TIER 4 FINAL
- - PLUMBED FOR ENGINE HEATER WITH WEBASTO DIESEL FIRED ENGINE HEATER
- - DEEP SEA ENGINE/GENERATOR CONTROLLER
- - TWO-STAGE HEAVY DUTY AIR CLEANER
- - NEWAGE GENERATOR HEAD MODEL S4L1D4F1 WITH MX-321 VOLTAGE REGULATOR
- - DEEP SEA 7310 ELECTRONIC CONTROL PACKAGE WITH IDLE/RUN AND E-STOP
- - HEAVY DUTY SKID MOUNTED GENERATOR - RUBBER ISOLATION MOUNTS
- - 600 AMP NEMA RATED CIRCUIT BREAKER REAR MOUNTED WITH
- INTEGRAL BUSS
- - CONFIGURABLE SKID FOR FUEL PREFILTER LOCATION BATTERY LOCATION
- DIESEL FIRED PREHEATER MOUNTING
- -GENERATOR INSTALLATION WITH REAR DOOR FALL PROTECTION BOTH
- SIDE OF RADIATOR
- - 550 GALLON USA/CSA SPEC DOUBLE WALLED FUEL TANK- ELECTRONIC
- FUEL MONITORING
- - (1) 2 X 6 SIDE AIR VENTS - POWDER COAT (BLUE) WITH MANUALLY
- CLOSEABLE LOUVERS
- - GENERATOR FLOOR VENT
- - GROUNDING PADS
- - VALVES AND PLUMBING FOR FUEL SYSTEM
- - MUFFLER AND EXHAUST SYSTEM INSTALLATION
- - BATTERY BOX AND BATTERIES
- - RAIN CAP WITH TRAILER PASS THROUGH AND RAIN COLLAR
- - 24 VOLT SERVICE LIGHTS AND WALL SWITCH
- - SIEMENS PANELBOARD WITH 800 AMP MAIN LUG RATING
- - FEED BREAKERS AS LISTED BELOW EACH WITH PADLOCK DEVICE
- - (1) 30 AMP WIRED TO 30 AMP HUBBELL RECEPTACLE
- - (3) 60 AMP WIRED TO (3)60 AMP HUBBELL RECEPTACLES
- - (2) 100 AMP WIRED TO (2)100 AMP HUBBELL RECEPTACLE
- - (1) 200 AMP WIRED TO 200 AMP HUBBELL RECEPTACLE
- - (1) 250 AMP WIRED TO 250 AMP HUBBELL RECEPTACLE
- - (1) 300 AMP WIRED TO 400A SINGLE CONDUCTOR CAM LOCK CONNECTORS
- - (1)400 AMP WIRED TO 690A PWR/400A GND SINGLE CONDUCTOR CAM LOCK
- CONNECTORS
- *****ALL MATING PLUGS SHIPPED LOOSE WITH VAN*****
- ENCLOSURE WITH FRONT FACE ACCESS FOR LOCKOUT OF INDIVIDUAL BREAKERS.
- - GUARDING - WE DO NOT WARRANTTHAT OUR GUARDS WILL MEET ALL
- LOCAL CODES.IT IS THE RESPONSIBILITY OF THE END USER TO HAVE THEM
- CHECKED BY A LOCAL INSPECTOR
