2020 Other Crusher - Cone K400RD
Fields with asterisks * are required.
Print This Page
Description
K400 REAR DISCHARGE
Inventory ID
E00058323
Serial
PC-3-501-20
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00058323
- Status: On Rent
- Make: Other
- Model: K400RD
- Year: 2020
- Serial#: PC-3-501-20
Notes

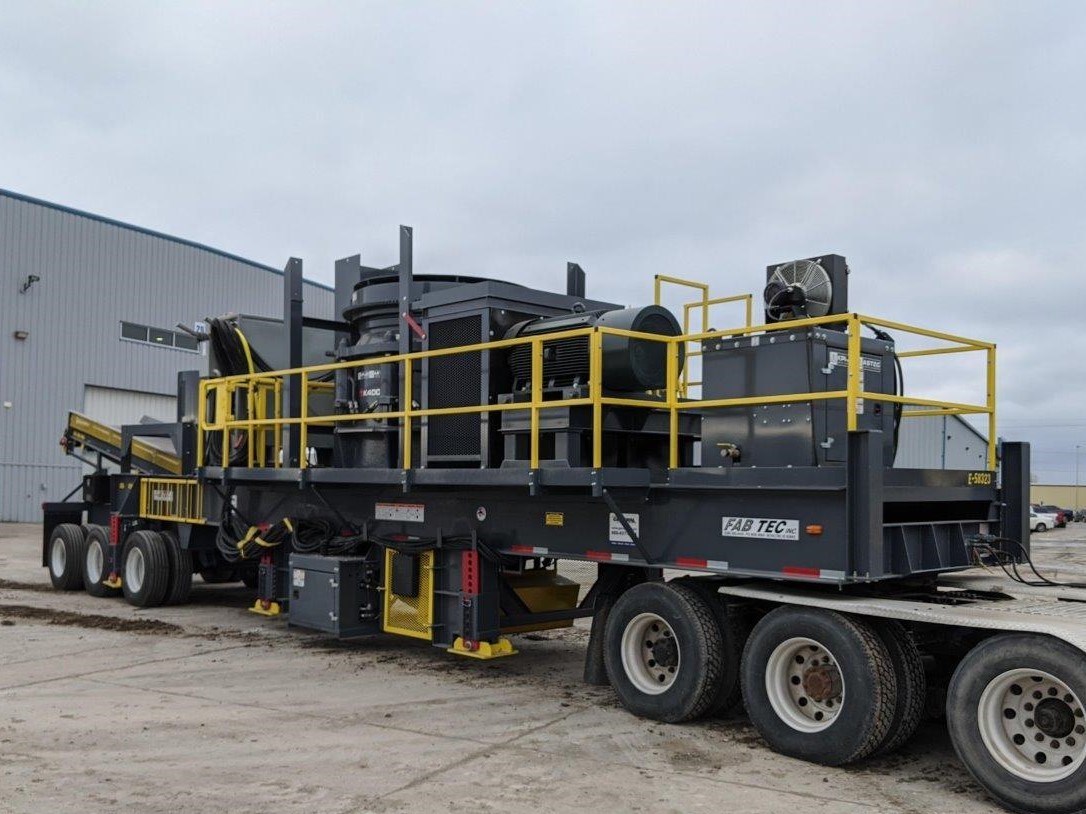

- FABTEC/JCI PORTABLE K400+ KODIAK CONE PLANT W/ 48" UNDER CONE CONVEYOR:
- JCI K400+ CONE CRUSHER EQUIPPED AS PER BELOW:
- - AGGRESSIVE STROKE MAXIMUM PRODUCTION CONE CRUSHER WITH
- PATENTED TRAMP IRON RELIEF SYSTEM WITH PRESSURE RELIEF VALVES FOR
- RELIEVING CRUSHER DURING TRAMP IRON EVENTS
- - LARGE BORE HEAVY-DUTY RELIEF CYLINDERS REQUIRE LOWER PRESSURE
- WITH HIGH HOLD DOWN FORCE
- - HYDRAULIC THREAD ADJUSTMENT FOR QUICK EASY SETTING CHANGES AND
- EVENBOWL LINER WEAR
- - HYDRAULIC CHAMBER CLEARING AND PATENTED HYDRAULIC THREAD
- LOCKING RING
- - INTERCHANGEABLE CHAMBER CONFIGURATIONS CONE HEAD ANTI-SPIN
- BRAKE
- - BASEFRAME WEAR LINERS V-SEAT BRASS WEAR LINERS
- - SKID MOUNTED REMOTE ADJUST HYDRAULIC PACKAGE INCLUDES
- EXTERNALLY MOUNTED LUBE PUMP AND RESERVOIR WITH 3 HP ELECTRIC
- MOTOR OIL HEATER KCS PLC AND ELECTRICAL JUNCTION BOX
- CONTROL PANEL WITH 50- CORD MANGANESE (INSTALLED) CRUSHER
- SHEAVE CRUSHER TOOLS
- ADDED OPTIONS INCLUDED IN PRICE:
- - REMOTE PANEL CABLES 100-
- - HYDRAULIC CONE BRAKE
- - MEDIUM CONFIGURATION
- 400 HP 1200 RPM TEFC TECO MOTOR.
- - JCI COGGED BELT DRIVE.
- - OPTIONAL JACK SHAFT DRIVE.
- HEAVY DUTY CONE MOUNT AND AR LINED UNDER CONE DISCHARGE HOPPER WITH 1/2"X6"
- ADJUSTABLE WIPERS.
- STANDARD CONE FEED RING WITH EXPANDED METAL WINDOWS.
- PLANT MOUNTED HYRAULIC ADJUST SYSTEM.
- WALKWAYS AROUND CONE WITH DIAMOND PLATE FLOOR WITH TOE BOARDS 42" TUBESTEEL
- HANDRAILS AND ACCESS LADDER.
- 48" UNDER CONE CONVEYOR DISCHARGING OVER THE REAR OF CARRIER:
- SEW 15 HP RIGHT ANGLE DRIVE
- VULCANIZED LAGGED HEAD PULLEY SELF-CLEANING WING TAIL PULLEY.
- DODGE SCM BEARINGSON 2 15/16 ALLOY SHAFTS.
- 3 PLY BELT 1/4" COVER OPTIONAL VULCANIZED SPLICED BELT.
- CLOSE SETTING ON CEMA C IDLERS UNDER CONE THEN 36" SPACING.
- -FUSION FLASHING
- 3 AXLE CARRIER 24" WF 68# BEAMS:
- 9700 HUTCH SUSPENSION.
- 22 500#AXLES AND 11:00RX22.5 TIRES.
- AIR BRAKES BRAKE LIGHTS MARKER LIGHTS REFLECTIVE TAPE AND MUD FLAPS.
- FOUR GROUND SUPPORT STANDS WITH JACKING LEGS.
- FRONT FOLD-DOWN LEGS.
- SAFETY GUARDS SANDBLASTED CHASSIS RUST INHIBITOR PRIMER AND TWO FINISH COATS
- INCLUDED.
- INCLUDED OPTIONS:
- OVER FLOW CHUTE WITH SELF SUPPORTING FEED RING:
- REQUIRES FEED RING HOLD DOWNS.
- SELF CONTAINED HONDA 8 HP HYD. POWER UNIT ~VS~ HPX 200 12V:
- ELECTRIC START
- 12 GALLON HYDRAULIC RESERVOIR WITH FILTER PROTECTION
- 2 1/2 GPM PUMP
- VULCANIZE SPLICE UNDER CONE CONVEYOR BELT
- 48" XTERRA WIPER ON CONVEYOR
- TOOL BOX MOUNTED ON CARRIER:
- PLATFORM IN FRONT OF CHASSIS WITH HANDRAILS:
- DIAMOND PLATE DECK.
- OBSERVATION STAND INCORPORATED INTO WALK-IN DRIVE GUARD:
- FOR EASY CONE DRIVE MAINTENANCE AND CONE FEED OBSERVATION.
- SPECIAL JACK SHAFT DRIVE FOR 400 HP:
- DODGE PX200 ELASTOMERIC COUPLING
- (2) 3 15/16 TYPE -E- BEARINGS
- 3 15/16" ALLOY SHAFT
- ADDED STEEL FOR LOWER BEARING/ SHEAVE MOUNT
- ADDED GUARDING.
- OBSERVATION DECK INCORPORATED INTO GUARDING
- (6) LEG FAB TEC PLANT MOUNTED RUN-ON SYSTEM:
- 12V HYDRAULIC PACKAGE AND SPOOL VALVE~ NUMBER OF BANKSTO MATCH LEG QUANTITY.
- 5 X 24" CYLINDERS 48 000 LB CAPACITY (AT 2500 PSI) WITH SAFETY-LOK CIRCUIT.
- HEAVY DUTY FOOT PADS
- CORD HANGERS
- RUBBER DISC RETURNS
- HINGED UNDER CRUSHER CONVEYOR FOR MAINTENANCE ACCESS WITH HYDRAULICRAISE AND LOWER.
- ELECTRICAL SWITCHGEAR FOR K400 CONE PLANT EQUIPPED AS PER BELOW:
- - 60X60 NEMA 3R/4 ENCLOSURE AND COMPONENT PANEL
- - CUSTOM CORD CAGE AND LEG KIT SETS OFF PLANT FOR OPERATION
- - REINFORCED LIFTING EYES
- - MANAUALLY OPERATED SAFETY START UP SIGNAL HORN
- - ILLUMINATED EMERGENCY STOP PANIC BUTTON STYLE
- - ALL MOTOR CONTROL TO BE INSTALLED IN ENCLOSURE DOOR
- 400 HP CONE
- - ABB PSTB REDUCED VOLTAGE SOFT STARTER
- - AMMETER
- - HOUR METER
- - INTEGRATED TO KCS CONTROL SYSTEM
- - WINDOW KIT FOR SAFE VIEWING OF MOTOR AMPS AND STARTER CODES
- (4) SIZE 2 MOTOR STARTERS TO CONTROL:
- - 15 HP HYDRAULIC PUMP - NO CONTROL BUTTONS CONTROLLED BY MILO
- SYSTEM
- - 30 HP CONE FEED CONVEYOR -CONTROL BUTTONS IN DOOR -100 AMP RECEPTACLE-FOR
- CONVEYOR INTERLOCKED TO:
- - 15 HP CONE DISCHARGE CONVEYOR - VIA MOTOR STARTER INTERLOCK
- - CONE LUBRICATION - VIA KCS CONTROL CONE UP TO SPEED - VIA KCS
- CONTROL
- - 20 HP CONE TO SCREEN CONVEYOR - CONTROL BUTTONS IN THE DOOR-60 AMP RECEPTACLE
- FOR CONVEYOR
- (1) SIZE 0 MOTOR STARTER:
- - 3 HP CONE LUBE PUMP - NO BUTTONS - KCS CONTROLLED - 20 AMP
- RECEPTACLE
- (1) SIZE 00 MOTOR STARTER
- - 1 HP CONE LUBE COOLING FAN - NO BUTTONS - KCS CONTROLLED
- 10 KVA AUXILLIARY TRANSFORMER:
- - INSTALLED TO CORD CAGE
- - (2) 120 VAC 20 AMP WEATHERPROOF GFCI RECEPTACLES
- 24 PIN PHOENIX CONNECTOR TO PROVIDE QUICK CONNECT/DISCONNECT OF KCS CONTROL
- SYSTEM
- - 100FT PARALLEL SINGLE CONDUCTOR POWER CORDS
- GUARDING - WE DO NOT WARRANT THAT MANUFACTURERS›¼À™ GUARDING WILL MEET ALL LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE GUARDING CHECKED BY A LOCAL INSPECTOR PRIORTO STARTUP OF EQUIPMENT OPERATIONS CORRECTIVE ACTIONS AND ASSOCIATED EXPENSE ARE THE RESPONSIBILITY OF THE END USER.
