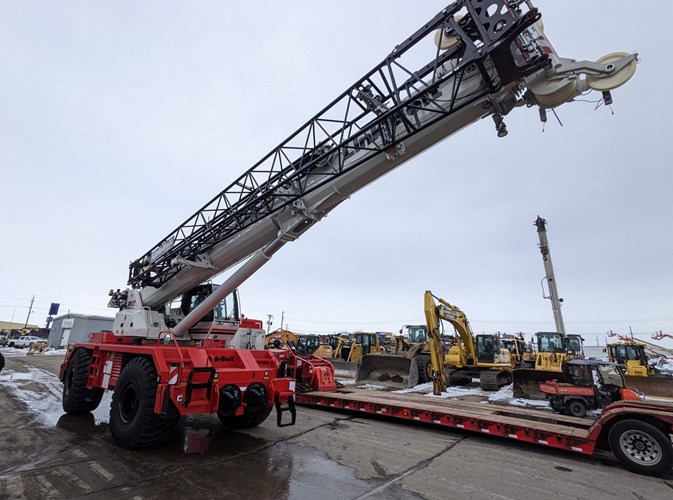

2023 Link Belt Crane 90RT
Fields with asterisks * are required.
Print This Page
Description
90 TON ROUGH TERRAIN CRANE
Inventory ID
E00066154
Serial
T9L3-7314
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00066154
- Status: On Rent
- Make: Link Belt
- Year: 2023
- Model: 90RT
- Serial#: T9L3-7314
- Est Hours: 1761.1
Notes
- LINK-BELT 90RT 90 TON TELESCOPIC BOOM ROUGH TERRAIN CRANE
- LOWER STRUCTURE:
- CHASSIS:
- 4X4X4 DRIVE/STEERING WITH REAR STEER INDICATION ALL WELDED BOX FRAME DESIGN
WITH TOOL STORAGE COMPARTMENT COMPLETE TRAVEL LIGHT PACKAGE WITH BACK UP
ALARM FULL DECK FENDERS WITH MUD FLAPS THREE (3) LOCKABLE STORAGE BOXES
LIFTING AND TIE DOWN LOCATIONS AND FRONT TOWING SHACKLES.
- OUTRIGGERS:
- FOUR SINGLE STAGE BEAMS WITH VARIABLE CONFINED AREA LIFTING CAPACITIES
(V-CALC ) PROVIDE A MULTITUDE OF SELECTABLE OUTRIGGER POSITIONS. ELECTRONIC
OVER HYDRAULIC CONTROLLED FROM THE OPERATOR-S CAB WITH INTEGRAL CHECK VALVES
AND QUICK RELEASE 24 (60.96CM) DIAMETER STEEL PONTOONS AND FOUR OUTRIGGER
LED LIGHTS.
- TRAVEL SYSTEM:
- TWO PLANETARY AXLES WITH TWO AND FOUR DRIVE MODES.
- SUSPENSION:
- REAR FULLY INDEPENDENT GREASELESS 4-LINK WITH AUTOMATIC AXLE OSCILLATION
LOCKOUT.
- BRAKES:
- FOUR WHEELFULL HYDRAULIC DISC BRAKES.
- TIRES:
- FOUR 29.5X 25-34 PLY RATING EARTHMOVING TYPE TIRES ON STEEL DISC WHEELS.
- ENGINE:
- DIESEL AND 24 VOLT START / 24 VOLT CHARGING. [NOTE: BRAND DISPLACEMENT
HORSEPOWER BLOCK HEATER AND EMISSION COMPLIANCE LISTED IN BASE ITEM
DESCRIPTION.]
- TRANSMISSION:
- POWERSHIFT - THREE SPEED WITH HIGH/LOW RANGE FOR 6 FORWARD AND 6 REVERSE
GEARS.
- PUMPS AND HYDRAULICS:
- TWO VARIABLE DISPLACEMENT LOAD SENSE PISTON PUMPS WITH ANTI-STALL FOR THE
BOOM HOIST BOOM EXTEND FRONT AND REAR WINCHES.
- STANDARD OIL LUBE AND ANTI-FREEZE:
- RECOMMENDED FOR AMBIENT TEMPERATURES BETWEEN 10›¼°F (-12›¼°C) AND 120›¼°F (49›¼°C)
STANDARDFOR STAGE V/TIER 4F AND TIER 3/STAGE IIIA EMISSIONS. STANDARD
HYDRAULIC OIL: GRADE 68.
- GENERAL LOWER ITEMS:
- RIGHT SIDE MIRROR 75 GALLON (284L) FUEL TANK WITH FUEL/WATER SEPARATOR AND
10 GALLON (38L) DEF TANK. - REVOLVING UPPERSTRUCTURE:
- UPPER FRAME:
- ALL WELDED HIGH STRENGTH STEEL FRAME WITH PRECISION-MACHINED SURFACES FOR
ALL COMPONENTS.
- MAIN AND AUXILIARY WINCHES:
- TWO SPEED POWER UP / POWER DOWN WINCH PACKAGE INCLUDES INDEPENDENT
HYDRAULIC CONTROLLED / PILOT OPERATED AXIAL PISTON TYPE MOTOR WITH
DISABLE SWITCH PLANETARY GEAR REDUCTION UNIT AUTOMATIC CONTROLLED SPRING
APPLIED / HYDRAULIC RELEASED MULTIPLE DISC BRAKE VIEWING CAMERA AND
ELECTRONIC DRUM ROTATION INDICATOR. DRUM INCLUDES GROOVED LAGGINGS AND ARE
MOUNTED ON ANTI-FRICTION BEARINGS. HOIST DRUM CABLE FOLLOWERS (ROLLERS) AND
1ST LAYER INDICATOR AND 3RD WRAP FUNCTION KICK-OUT.
- WIRE ROPE:
- MAIN WINCH: 850FT (259M) OF .75 IN (19MM) 37X7 ROTATION RESISTANT (TYPE KC)
ROPE. AUXILIARY WINCH: 600 FT (182.8M) OF .75 IN (19MM) 37X7 ROTATION
RESISTANT (TYPE KC) ROPE.
- SWING:
- INCLUDES INDEPENDENT HYDRAULIC CONTROLLED / PILOT OPERATED FIXED
DISPLACEMENT MOTOR PLANETARY GEAR REDUCTION UNIT SPRING APPLIED HYDRAULIC
RELEASED 360 DEGREE MULTI-PLATE PARK BRAKE AUDIO SWING ALARM RIGHT SIDE
VIEWING CAMERA TWO POSITION POSITIVE HOUSE LOCK AND FREE SWING MODE
- COUNTERWEIGHT:
- 28 800 LBS. (13.2MT) OF TOTAL COUNTERWEIGHT CONSISTING OF THREE
HYDRAULICALLY REMOVABLE COUNTERWEIGHTS WITH CAPACITIES FOR 0 LBS. (0MT)
9 600 LBS. (4.4MT) 19 200 LBS. (8.8MT) AND 28 800 LBS. (13.2MT)
COUNTERWEIGHT CONFIGURATIONS.
- OPERATOR-S CAB:
- SINGLE OCCUPANCY 0›¼° - 20›¼° TILTING CAB OF E-COATED POWDER PAINTED STEEL
CONSTRUCTION. INCLUDES FULLY ENCLOSED MODULAR SEALED COMPARTMENT WITH
PRESSURE FORMED PLASTIC TRIM TINTED SAFETY GLASS FOR FULL VISION VAN STYLE
POP OUT OPERATOR-S DOOR SLIDING RIGHT SIDE WINDOW VENTED REAR WINDOW
SWING UP ROOF WINDOW WITH WIPER AND WASHER FRONT WINDOW WIPER AND WASHER
SIX WAY ADJUSTABLE SEAT SEAT BELT FIRE EXTINGUISHER LINK-BELT PULSE 2.0
OPERATING SYSTEM INCLUDING RATED CAPACITY LIMITER (ANTI-TWO BLOCK WITH
FUNCTION KICK-OUT) WITH INTERNAL LIGHT BAR FOOT THROTTLE ARM CHAIR DUAL
AXIS (JOYSTICK) ELECTRONIC CONTROLLERS AND HAND HELD OUTRIGGER CONTROL CAB
MOUNTED WORK LIGHTS AM/FM RADIO WITH BLUETOOTH AUTOMATIC TEMPERATURE
CONTROLLED AIR CONDITIONING AND DIESEL FIRED WARM-WATER HEATER WITH
DEFROSTER.
- GENERAL UPPERSTRUCTUREITEMS:
- LEFT SIDE FOLDING GUARDRAILS FINE METERING AMBER STROBE LIGHTS AND REAR
VIEW CAMERA. - TELESCOPIC BOOM:
- BOOM:
- 40.6 TO 155 FT (12.3 TO 47.2M) FIVE SECTION FULL POWER BOOM WITH QUICK REEVE
HEAD MACHINERY ANDSELECTABLE EXTENSION MODES FIVE NYLON HEAD SHEAVES
DEFLECTOR PADS AUXILIARY LIFTING SHEAVE MECHANICAL BOOM ANGLE INDICATOR
WIND SPEED INDICATOR AND DUAL BOOM FLOOD LIGHTS.
- BOOM HOIST SYSTEM:
- ONE DOUBLE ACTING CYLINDER WITH INTEGRAL HOLDING VALVE. - WARRANTY:
- 12 MONTH UNLIMITED HOUR MATERIAL AND WORKMANSHIP FIVE (5) YEAR STRUCTURAL - "SEE LINK-NETPRO FOR DETAILS" - INCLUDED SPEC EQUIPMENT:
- 3D LIFT PLANNING - CREATE SAVE VIEW AND PRINT THREEDIMENSIONAL LIFT PLANS
FROM ANYWHERE YOU HAVE AN INTERNET CONNECTION. THERE ARE NO SPECIAL SOFTWARE
DOWNLOADS AND THIS SERVICE IS FREE TO LINK-BELT CRANE OWNERS. CREATE YOUR OWN
USER SECURE ACCOUNT AT WWW.3DLIFTPLAN.COM.
- 90RTBASIC MACHINE 90 U.S.TON. CUMMINS QSB 6.7 LITER 232 BRAKE
HORSEPOWER (173 KW) ENGINE WITH 120V BLOCK HEATER AND STAGEV/TIER 4F OFF-
HIGHWAY EMISSIONS. (NOTE: CAN ONLY BE SOLD AND/OR OPERATED WHERE STAGE V/TIER
4F IV OFF-HIGHWAY EMISSIONS STANDARDS ARE ACCEPTED.)
- ICRANETRAX LITE - A FREE 12-MONTH SUBSCRIPTION TO LINK-BELTS TELEMATICS
NETWORK. THE NETWORK DELIVERS REAL-TIME AND HISTORICAL DATA FROM ANYWHERE YOU
HAVE AN INTERNET CONNECTION AND THERES NO OBLIGATION TO SHARE YOUR DATA WITH
THE DEALER OR THE FACTORY. SETUP YOUR SECURE ACCOUNT AT
WWW.ICRANETRAX.COM/LBCE. NOTE: INTERNATIONAL DATA DEPENDENT ON CELLULAR
SERVICE.
- LINK-BELT PREFERRED - A FREE COMPREHENSIVE LIBRARY OF ON-LINE MANUALS
SCHEMATICS AND BULLETINS FOR NEW AND OLDER LINK-BELT CRANES. THERE ARE ALSO
CALCULATORS FOR GROUND BEARING AND OPERATING COSTS. SIGN UP AND START TAKING
ADVANTAGE OF THIS AND MORE AT WWW.LINKBELT.COM.
- COLD WEATHER PACKAGE (-20F/-29C) - SNAP ON WINTER FRONT FOR GRILL ARTIC LUBE
FOR: ENGINE
TRANSMISSION AXLE HUB WINCH DRUMS SWING REDUCER AND BEARING GREASE IN PLACE
OF STANDARD LUBES.
- BOOM FLOOD LIGHT - REMOTE CONTROLLED HIGH INTENSITY
- 35- - 58- (10.67 - 17.68 M) SMARTFLY MANUALLY OFFSETTABLE TWO-PIECE BIFOLD
LATTICE FLY - FEATURES LINK-BELT POWER PINNING WITH ASSIST TOOLS AND HAND
CRANK.
- 10-TON SWIVELING HOOK AND BALL [WEIGHT: 550 LBS (249KG)]
- 60 TON 3 SHEAVE QUICK REEVE HOOK BLOCK WITH SAFETY LATCH
[WEIGHT 1 109 LBS)
- 24 MONTH - WARRANTY PLUS COVERAGE - WARRANTY PLUS COVERAGE FOR 24 ADDITIONAL
MONTHS BEYOND EXPIRATION OF THE BASE MACHINE WARRANTY UNLIMITED HOURS.
WARRANTY PLUS IS LIMITED EXTENDED WARRANTY COVERAGE INDEPENDENT OF THE BASE
MACHINE WARRANTY.
