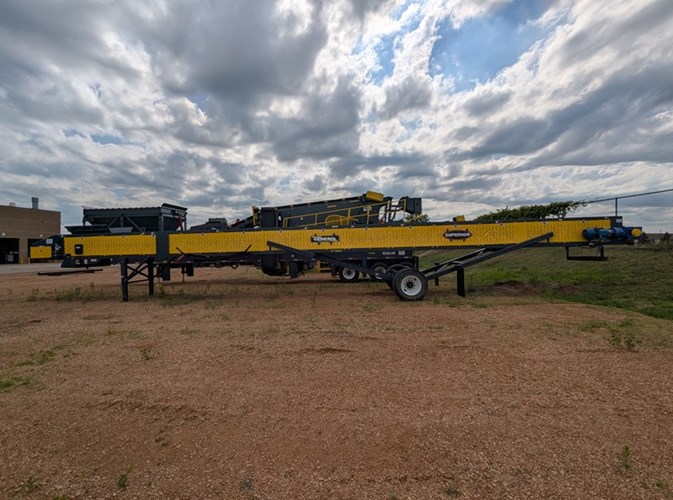

2025 Superior Conveyor - Stacking 48X65PRSC
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR CONVEYOR
Inventory ID
E00071664
Serial
2693265
Machine Location
Details
- Inventory ID: E00071664
- Status: On Yard
- Make: Superior
- Model: 48X65PRSC
- Year: 2025
- Serial#: 2693265
Notes
- SUPERIOR 48" X 65- PORTABLE RADIAL STACKING CONVEYOR EQUIPPED AS PER BELOW:
- CONVEYOR FRAME:
- MAIN FRAME: 36" DEEP TRUSS
- TOP CHORD ANGLES: 3" X 3" X 5/16"
- BOTTOM CHORD ANGLES: 5" X 3" X 1/2"
- LATTICE MEMBERS: 2" X 2" X 3/16"
- FULL IDLER RAIL BW+16" RECESSED IDLER DESIGN - DRIVE SPECIFICATIONS:
- DRIVE: CLASS I HEAD DRIVE
- GEAR REDUCER: SHAFT MOUNT RIGHT ANGLE SUMITOMO GEAR REDUCER
- BACKSTOP: INSTALLED IN REDUCER
- MOTOR: 30 HP TEFC
- CAPACITY: 700 STPH OF 100 PCF RIPRAP MATERIAL (12"MATERIAL DROPPING 3- ONTO
CONVEYOR)
- BELT SPEED: 220 FPM
- DRIVE PULLEY: 18" DIAMETER 3/8" HERRINGBONE LAGGED DRUM
- TAIL PULLEY: 16" DIAMETER CEMA CHEVRON›¼® WING
- SHAFTS: TURNED AND POLISHED
- BEARINGS: INCLUDED
- TAKE-UP: SCREW TYPE (LIKE SLIDE STAC) - PORTABILITY:
- CONVEYOR SPLICE: ONE PIECE FRAME
- UNDERCARRIAGE: MANUAL RAISE WITH PIN LOCK ADJUSTMENT
- AXLE TYPE: TELESCOPING AXLE ROAD PORTABLE
- TRANSPORT AXLE: DUAL (4) 11R-22.5 TIRES AND WHEELS
- RADIAL AXLE: MANUAL SWIVEL BOXES
- RADIAL TRAVEL: MANUAL
- FIFTH WHEEL: FOR ROAD TRAVEL BOLT ON DESIGN
- ANCHOR PIVOT: MAINTAINS TAIL END DURING RADIAL TRAVEL FOR 5TH WHEEL
- BRAKES: COMPLETE AIR BRAKE PACKAGE
- LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
- MUD FLAPS: INSTALLED BEHIND TRANSPORT WHEELS
- AXLE JACKS: NOT INCLUDED
- LANDING GEAR: MANUAL PIN ADJUSTMENT
- TOWING EYE: PINTLE HITCH TYPE
- CORD HOLDERS: INCLUDED
- LIFTING EYES: LIFTING EYES AT HEAD TAIL AND MIDPOINT
- SUPPORT LEGS: ADJUSTABLE HEIGHT FOLDING LEGS AT TAIL - CONVEYOR COMPONENTS:
- BELTING: MAXX TUFF 3-PLY 3/8 X 1/8 600PIW HAR
- BELT SPLICE: FACTORY VULCANIZED BELT SPLICE
- SCRAPERS: SUPERIOR CLICK TENSIONING EXTERRA›¼® PRIMARY BELT SCRAPER
- IDLERS: CEMA D 5" DIA. SEALED FOR LIFE BALL BEARINGS
- IDLER SEAL: SUPERIOR STANDARD SPINGUARD SEAL
- LOAD AREA: 20 DEGREE TROUGH SUPERIOR 5- IMPACT BED MEDIUM DUTY
- TROUGH: 20 DEGREE TROUGH STEEL ROLLS ON 3- SPACING
- RETURNS: FLAT RUBBER DISC ROLLS ON 10- SPACING
- RADIAL RECEIVING HOPPER: SLOPED 5- LONG BOLT ON DESIGN BUIT WITH 1" A36
REINFORCED PLATE WORK
- GATHERING TORUGH: 1" THICK CANOE LINERS SLOPED TOP STYLE IN HOPPER AREA
FULL LENGTH 1/4" STEELROCK GUARDS (NO RUBBER FLASHING) BOLT ON 36" WIDE - ADDITIONAL SPECIFICATIONS:
- IDLER NIP GUARD: FULL LENGTH NIP GUARDS
- SIDE GUARDS: FULL LENGTH SIDE GUARDING
- SAFETY HANDRAIL: NOT INCLUDED
- VOLTAGE: 480 V / 3 PH / 60 HZ - 1800RPM
- CONTROL PANEL PLATE: INCLUDED
- PAINT: SUPERIOR CLASS I - 1 COAT PRIMER 1 COAT FINISH ENAMEL GRAPHITE GRAY
- GUARD PAINT: YELLOW - - NO ELECTRICAL SWITCHGEAR PANEL ONLY 150- OF MAIN POWER CORD WITH HUBBELL PLUG
- - GUARDING: FOR DRIVE ANDTAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING INSPECTED
