Photo Count: 10-
Price:
$585,750 USD -
Location:
Shakopee, Minnesota - (800) 437-2924
Interested in this machine? Send us a message
PriceWatch
Subscribe to be notified of price changes on this item.

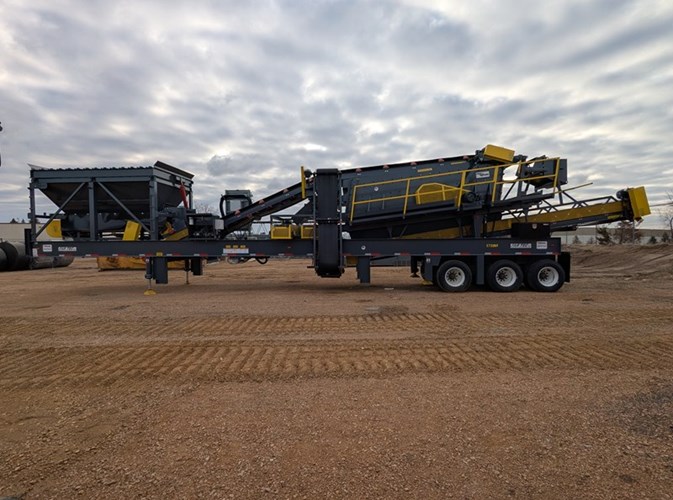

2026 FABTEC Screening Plant 5163
Fields with asterisks * are required.
Print This Page
Description
FEEDER SCREEN PLANT
Inventory ID
E00073360
Serial
5-16-3-232-26
Machine Location
Details
- Inventory ID: E00073360
- Status: On Yard
- Make: FABTEC
- Model: 5163
- Year: 2026
- Serial#: 5-16-3-232-26
Notes
- FABTEC 5" X 16- - 3 DECK CONTRACTOR SCREENING PLANT EQUIPPED AS PER BELOW:
- THREE AXLE CARRIER 21" WF 57# BEAMS:
- HUTCH 9700 EQUALIZING SUSPENSION
- 11:00R X 22.5 TIRES TEN HOLE PILOTED WHEEL HUBS
- STANDARD FORGE 22 500 AXLES AIR BRAKES LED BRAKE LIGHTS LED MARKER LIGHTS
LED STROBE LIGHT AND MUD FLAPS
- SIX GROUND SUPPORT STANDS WITH JACKING LEGS - 5- X 16- PRO INCLINE SCREEN - 3 DECK 20 HP TEFC:
- HUCK BOLTED SCREEN BOX 3/8" PLATE SIDE WALLS
- 100 MM TORRINGTON SPHERICAL BEARINGS 4150 STRESS PROOF SHAFT STEEL MACHINED
CARTRIDGE TYPE BEARING HOUSINGS WITH 1 1/4" WALL THICKNESS
- ADJUSTABLE THROW
- SIDE TENSION ALL DECKS
- SCREEN SN 5-16-3-514-25 - 10 CUBIC YARD FEED HOPPER:
- 8- X 14- 3/8" PLATE SELF-RELIEVED HOPPER
- ROCK RELIEF SHELF ABOVE BELT
- OPTIONAL GRIZZLY PACKAGE
- CANOE LINER FLASHING - 30" BELT FEEDER 15 HP TEFC:
- BELT SPEED 47 FPM WEIGHTED FEED GATE
- BELT DRIVE HAS DOUBLE REDUCTION FOR PROPER SPEED AND HIGH TORQUE
- VULCANIZED LAGGED HEAD PULLEY SELF-CLEANING WING TAIL PULLEY
- DODGE SCM BEARINGS
- 3 PLY 1/4" COVER
- CLOSE SPACING ON CEMA C FULL RUBBER DISC IDLERS
- CANOE LINER FLASHING - 30" FEED CONVEYOR:
- 3 PLY BELT 36" SPACING ON 35 DEGREE IDLERS
- VULCANIZED LAGGED DRIVE PULLEY SELF-CLEANING WING TAIL PULLEY
- DODGE SCM BEARINGS
- 15 HP TOSHIBA DRIVE MOTOR WITH 5203 FALK REDUCER - 42" UNDER SCREEN CONVEYOR:
- 36" SPACING ON CEMA B SEALDED IDLERS
- 2 PLY BELT 3/16" COVER
- VULCANIZED LAGGED HEAD PULLEY SELF-CLEANING WING TAIL PULLEY
- DODGE SCM BEARINGS
- 15 HP TOSHIBA DRIVE MOTOR WITH 5203 FALK REDUCER - BOLT IN AR LINED PRODUCT DISCHARGE CHUTES OPTIONAL BLENDING CAPABILITES
- 1/4" PLATE UNDER SCREEN HOPPER WITH WEAR STRIPS AND ADJUSTABLE 1/2" X 6" WIPERS
- 18" WALKWAYS WITH SKYWALK FLOOR AND TOE BOARDS BOTH SIDES AND BACK OF SCREEN WITH 42" TUBESTEEL RAILS WITH ACCESS LADDER
- SELF-CLOSING SAFETY GATE AT LADDER OPENINGS
- SAFETY GUARDS SANDBLASTEDCHASSIS RUST INHIBITOR PRIMER AND (2) FINISH COATS - PAINTED GRAPHITE GRAY WITH SAFETY YELLOW GUARDING
- OPTIONS INCLUDED:
- 4 LEG FAB TEC PLANT MOUNTED HYRDAULIC STABILIZING SYSTEM (NON RUN-ON)
- FABTEC CYLINDERS 6" X 18" STROKE 70 000 LBCAPACITY WITH SAFETY-LOK CIRCUIT
- DELTA HPX-200 12-VOLT POWER UNIT
- (1) SPOOL VALVE FOR NUMBER OF BANKS TO MATCH LEG QUANTITY
- CYLINDER MOUNTING HARDWARE
- HEAVY DUTY FOOT PADS - HYDRAULIC LIFT FOR FEED CONVEYOR HOOD AND SCREEN
- 1/3-2/3PANEL STYLE BLEND GATES FOR 1ST TO 2ND & 2ND TO 3RD DECKS
- TOOL BOX MOUNTED ON CHASSIS
- (1) 24" X 17- FOLDING CROSS CONVEYOR FOR 3RD DECK (1) 18" X 12- AND (1) 18" X
10- CROSS CONVEYORS FOR 1ST AND 2ND DECKS
- 5 HP TOSHIBA DRIVE MOTORS
-CHANNEL INSET IDLERS
- VULCANIZED LAGGED HEAD PULLEY AND SELF-CLEANING WING TAIL PULLEY
- DODGE BEARINGS ON HEAD PULLEYS DODGE SCM BEARINGS ON TAIL PULLEYS
- FULL SKIRT BOARD WITH WIPER
- MOUNTED ON SLIPERS WITH HOLD-DOWN BRACKETS - VULCANIZED SPLICE ALL BELTS
- 30" FEED CONVEYOR
- 30" BELT FEEDER
- 42" UNDER SCREEN CONVEYOR
- (1) 24" CROSS CONVEYOR
- (2) 18" CROSS CONVEYORS - (2) 30" SUPERIOR CLICK EXTERRA BELT SCRAPERS
- (1) 42" SUPERIOR CLICK EXTERRA BELT SCRAPER
- RUBBER DISC RETURN ROLLERS FOR ALL CONVEYORS:
- INCLUDES CROSS CONVEYORS - ORANGE 1/2" X 6" FLASHING ON ALL CONVEYORS
- FEED CONVEYOR AND CROSS CONVEYORS ONLY - TIE OFF CABLES INSTALLED ON SCREEN SUBFRAME
- REMOVABLE WITH 3/8" CABLES
- FABTEC IS NOTRESPONSIBLE IF TIE OFFS DONT MEET MSHA OR LOCAL CODES - HEAVY DUTY SELF RELIEVEING REVERSIBLE HYDRAULIC DUMP GRIZZLY:
- GRIZZLY BARS 3/4" X 7" FB AND 2" O ROUND BAR
- 10 HP TEFC VICKERS V20 PUMP WITH SPOOL VALVE
- 4" BORE 36" STROKE CYLINDERS
- HYDRAULIC TANK WITH FILTER PROTECTION
- 5" CLEAR SPACING - CERAMIC LAGGED DRIVE PULLEY ON OH FEED CONVEYOR VS STANDARD VULCANIZED LAGGED DRIVE
- - GUARDING FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED
