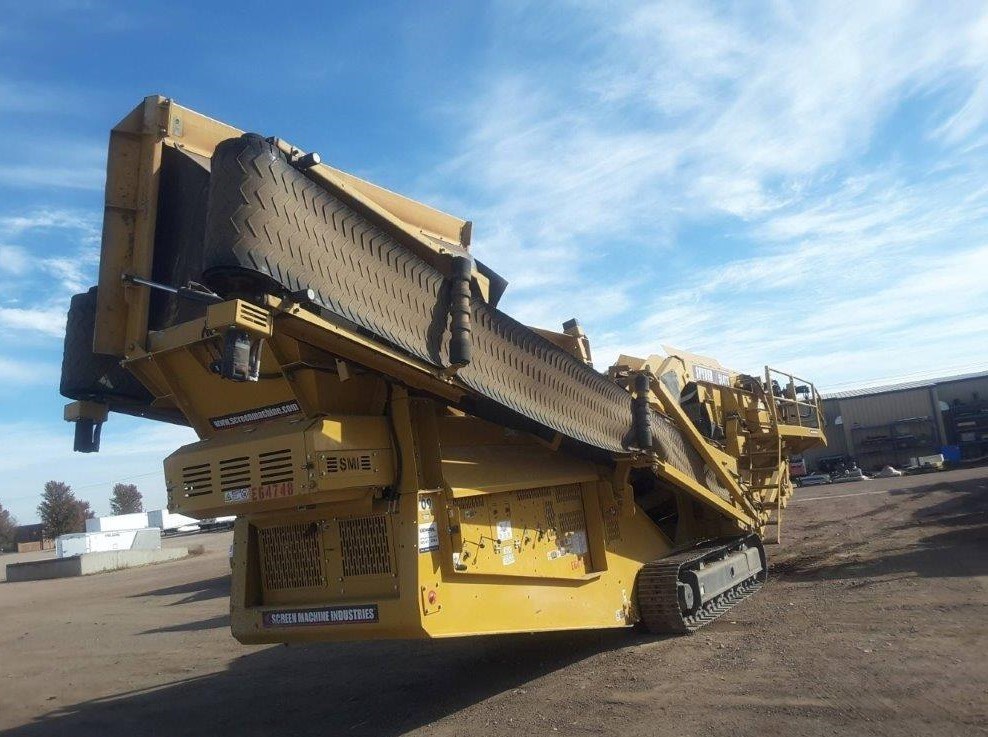

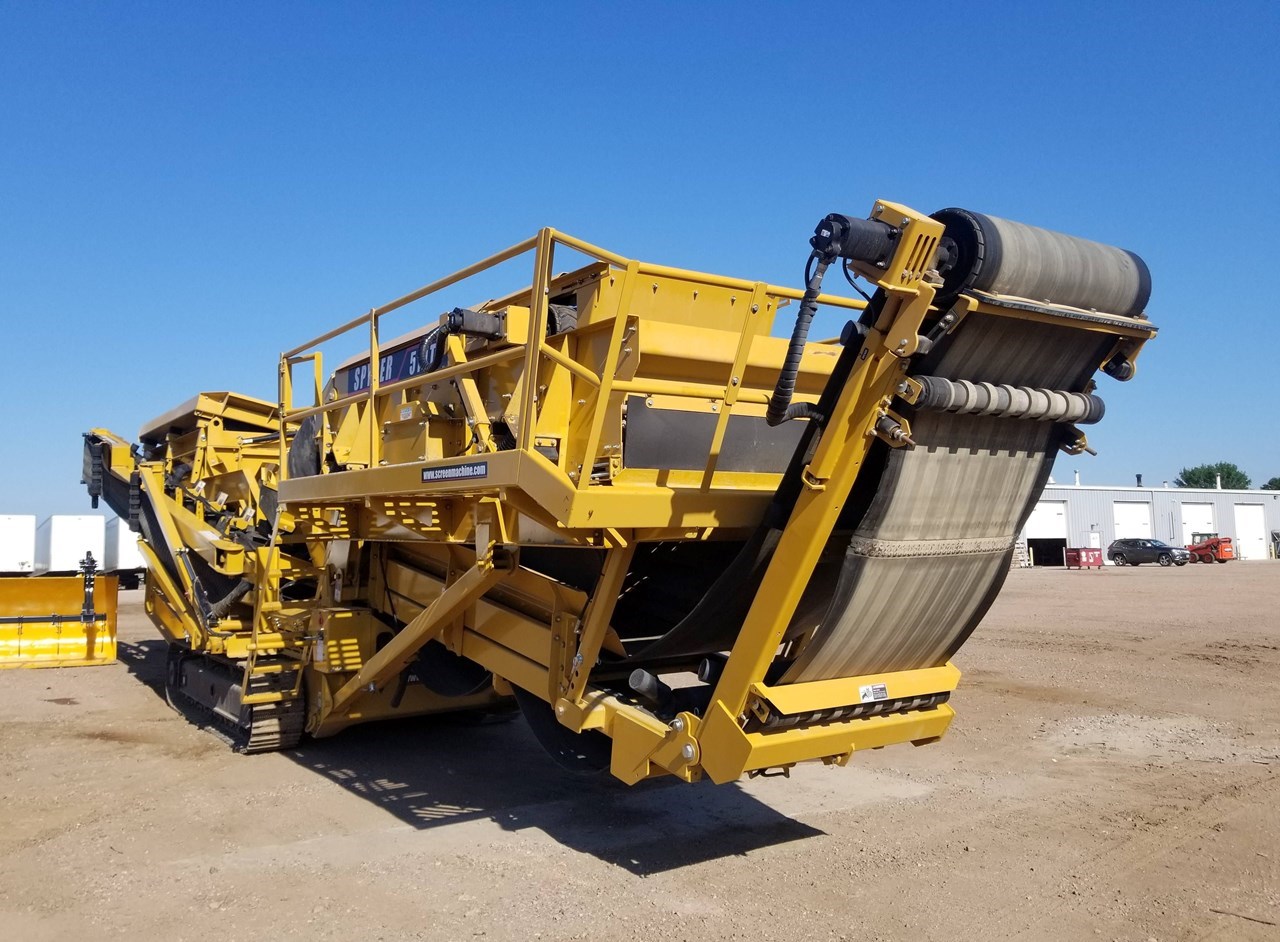

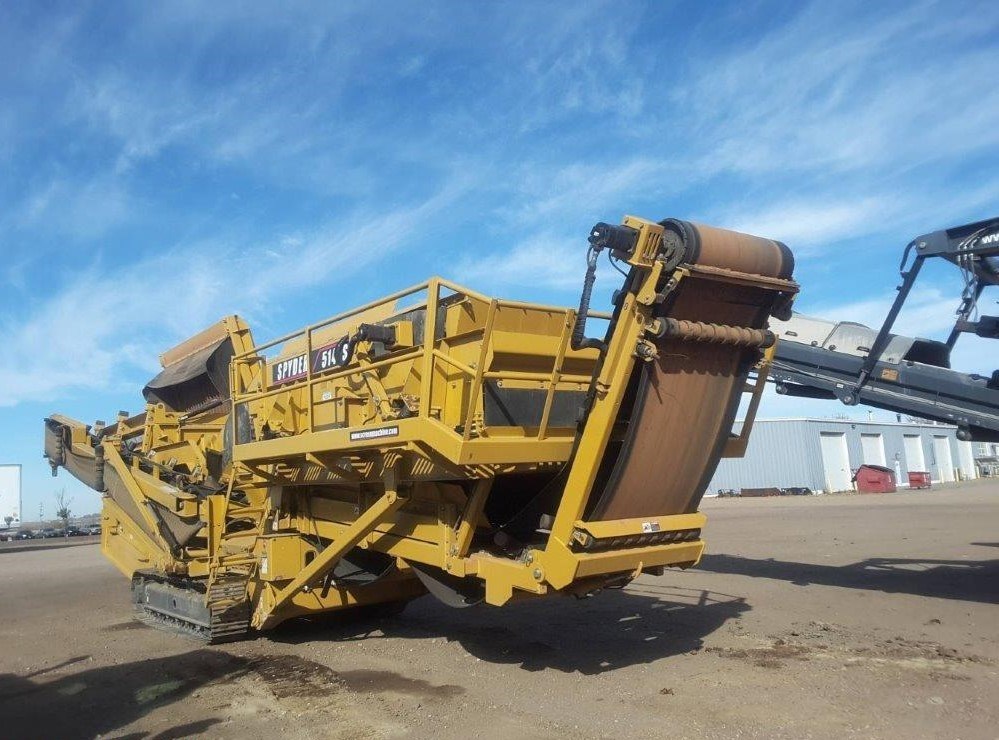

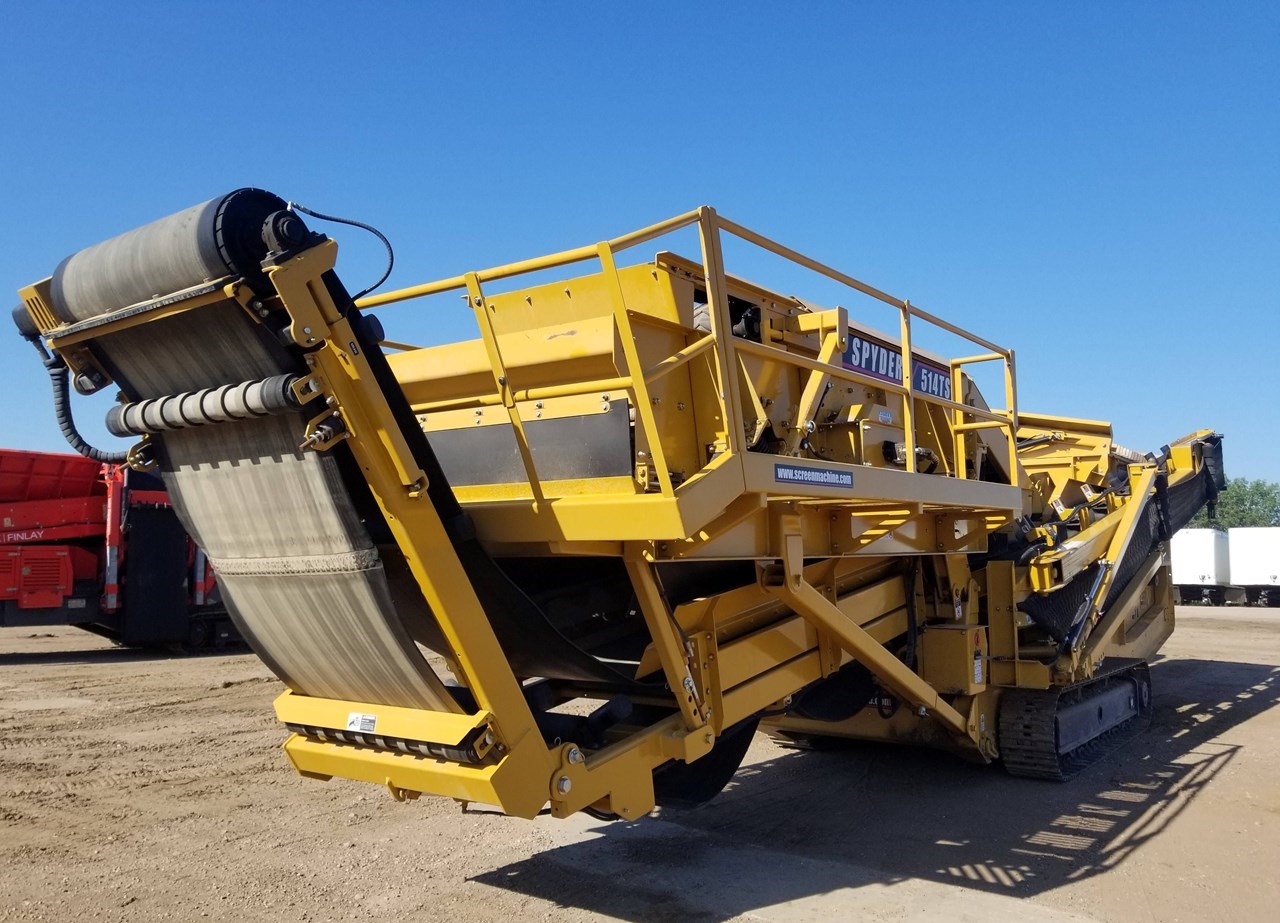

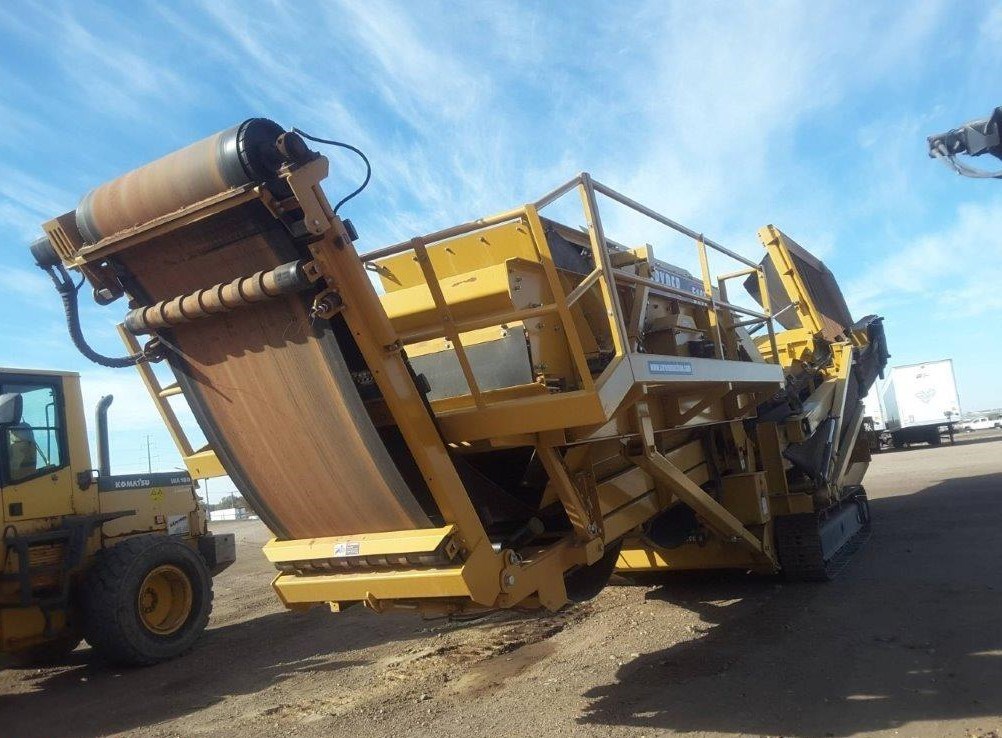

2021 Screen Machine 514TS Screening Plant - Hydraulic For Sale Stock E00064748

Interested in this machine? Send us a message

Fields with asterisks * are required

PriceWatch

Subscribe to be notified of price changes on this item.

2021 Screen Machine Screening Plant - Hydraulic 514TS

Fields with asterisks * are required.
Print This Page
Description
TRACK SCREEN PLANT
Inventory ID
E00064748
Serial
514TS-1032
Machine Status
  • Email a friend

    Send to a Friend

    Fields with asterisks * are required
  • Loan Calculator

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Details

  • Inventory ID: E00064748
  • Status: On Rent
  • Make: Screen Machine
  • Model: 514TS
  • Year: 2021
  • Serial#: 514TS-1032

Notes

  • USED RENTAL SPYDER 514TS SCREEN MACHINE EQUIPPED PER THE BELOW:
  • SCREENS:
    - 5" X 14- TOP DECK
    - 5- X 12- BOTTOM DECK
    - DOUBLE DECK TWO BEARING SCREEN
    - DOUBLE DECK ADJUSTABLE SCREEN ANGLE (4) OPERATING POSITIONS
    - 1/4" US MADE GRADE 80 STEEL SCREEN BOX WALLS
    - PATENTED SMOOTH SMART TECHNOLOGY
    - FINES CONVEYOR SPLITS FROM SCREEN BOX FOR EASE OF MAINTENANCE
    - TOP DECK SIDE TENSION WIRE SCREEN CLOTH
    - BOTTOM DECK END TENSION
  • POWER SYSTEMS AND CONTROLS:
    - YANMAR74 HP (55KW) TIER IV FINAL DIESEL ENGINE
    - 75 GALLON FUEL TANK
    - 125 GALLON BAFFLED HYDRAULIC TANK
    - OILAIR HYDRAULIC OIL COOLER
    - FOUR (4) EMERGENCY STOPS PLUS (1) STOP BUTTON ON REMOTE
    - WIRELESS REMOT CONTROL OPERATION AND TRAVEL
  • UNDERCARRIAGE:
    - HEAVY-DUTY TRACKS WITH 8" GROUND CLEARANCE
    - 15.7" SHOE WIDTH W/OUTSIDE TRACK DIMENSION OF 8--2"
    - SEALED AND LUBRICATED PINS AND BUSHINGS
  • HOPPER/FEEDER:
    - 1/4" THICK STEEL SIDE WALLS
    - 9 7/8" CENTER-TO-CENTER SPACING ON IDLERS
    - 5" DIAMETER CENTER IDLER CANS
    - 42" WIDE 3 PLY 330 PIW BELT
    - HYDRAULIC MOTOR DRIVE WITH 12" LAGGED HEAD PULLEY
    - LOW FEED HEIGHT - 9- 4" WITHOUT GRIZZLY
    - FEED HEIGHT OF 12- 10" AT HIGH SIDE OF GRIZZLY (3 HEIGHT SETTINGS)
    - 8 CU. YARD HOPPER CAPACITY
    - FEED OPENING 13- X 5- WITHOUT GRIZZLY
    - FEED OPENING 14- X 5- WITH GRIZZLY
    - VARIABLE SPEED FEEDER BELT
    - FEED MATCH 3-4 YD3 LOADER OR 1-3 YD3 EXCAVATOR

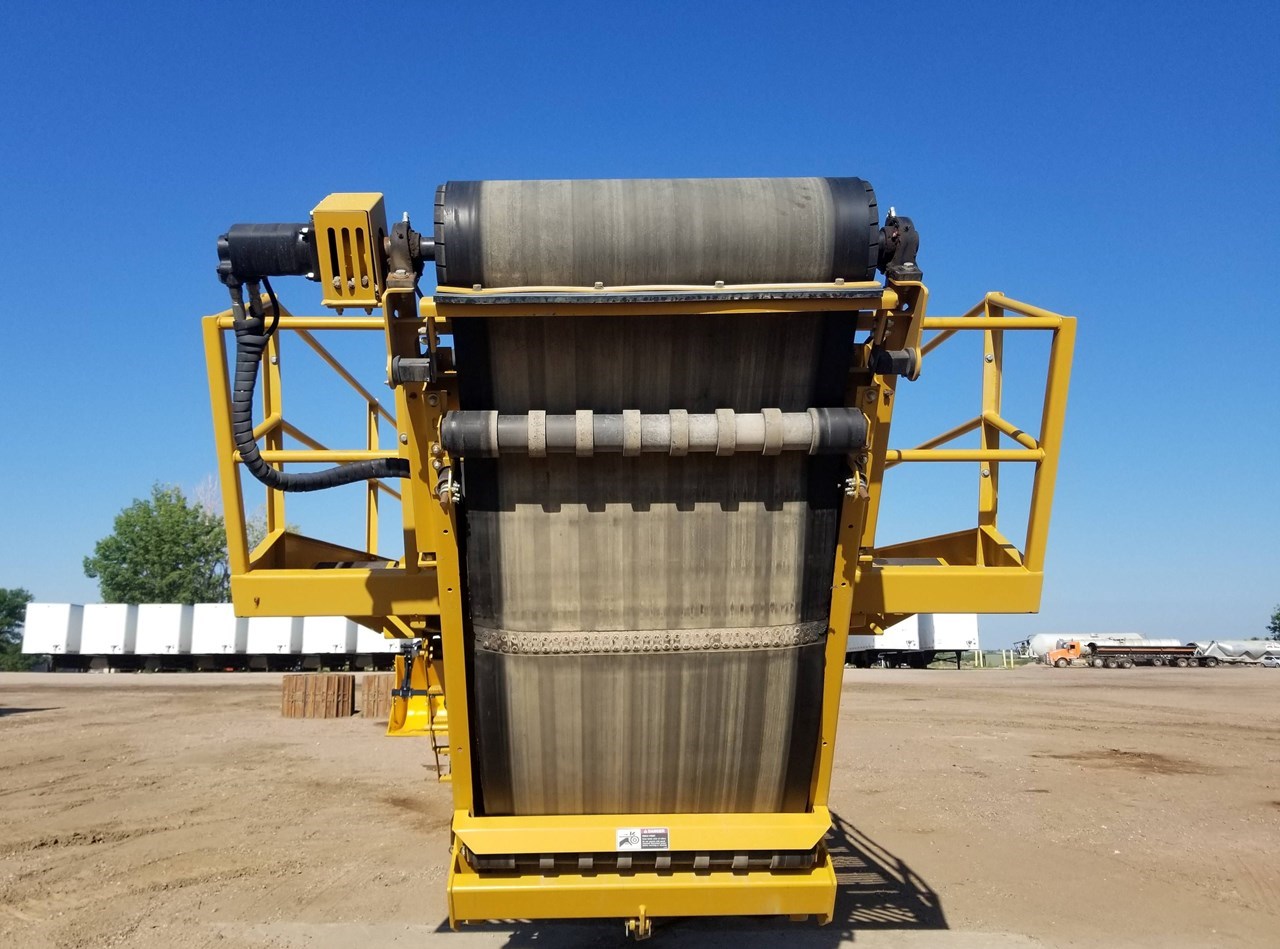

  • MAIN/DISCHARGE WINDROW CONVEYORS:
    - 42" MAIN BELT RAISES FROM SCREEN BOX FOR MAINTENANCE
    - OVERSIZE AND MIDSIZE DISCHARGE BELTS ARE CLEATED AND VARIABLE SPEED
    - 16- 6" OVERSIZE DISCHARGE HEIGHT - 24" WIDE BELT
    - 13- 10" FINES DISCHARGE HEIGHT - 42" WIDE BELT
    - 16- 6" MIDSIZE DISCHARGE HEIGHT - 24" WIDE BELT
    - SIDE DISCHARGE BELTS ANGLES 18 21 AND 24 DEGREES
    - FINES BELT ADJUSTABLE TO 23 DEGREES
  • OPTIONS:
    - TOP DECK SET UP FOR PUNCH PLATE AND OR SCREEN CLOTH
    - 3" SQUARE OPENING IN THE TOP 3" X 1/4" SLOTTED IN BOTTOM DECK
  • - GUARDING: GUARDING IS THE RESPONSIBILITY OF THE END USER TO MAKE SURE THE UNIT
    IS GUARDED TO ALL LOCAL CODES
