2022 Superior Conveyor - Transfer 36X30CFC
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR CONVEYOR
Inventory ID
E00062997
Serial
2075726
Machine Location
Details
- Inventory ID: E00062997
- Status: On Yard
- Make: Superior
- Model: 36X30CFC
- Year: 2022
- Serial#: 2075726
Notes

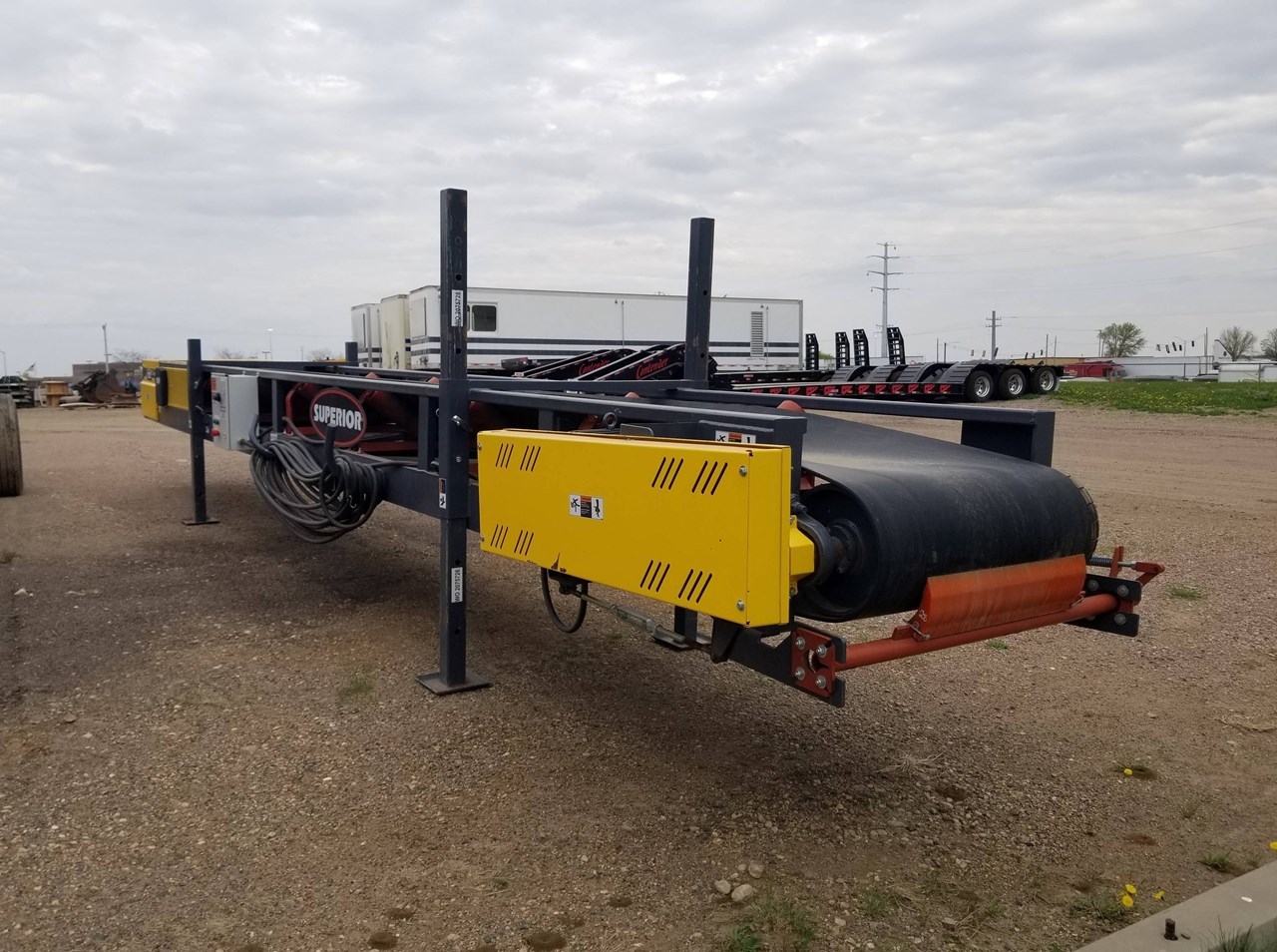

- SUPERIOR 36X30CFC CHANNEL FRAME CONVEYOR EQUIPPED PER THE BELOW:
- CONVEYOR FRAME:
- MAIN FRAME 8" X 11.5LB STRUCTURAL CHANNEL
- CROSS MEMBERS WELD IN - DRIVE SPECIFICATIONS:
- DRIVE CLASS I HEAD END
- GEAR REDUCER DODGE SHAFT MOUNT
- BACKSTOP NOT INCLUDED
- MOTOR 15 HP 1800 RPM TEFC
- V-BELT DRIVE WITH DRIVE GUARD
- CAPACITY 750 STPH OF 100PCF MATERIAL 25 DEGREE SURCHARGE (90% FINES 10%
SPHERICAL LUMPS 7" MINUS)
- BELT SPEED 400 FPM
- SUPERIOR PULLEYS CROWN FACE
- DRIVE PULLEY 14" DIAMETER 3/8" HERRINGBONE LAGGED DRUM
- TAIL PULLEY 12" DIAMETER CEMA CHEVRON›¼® WING
- SHAFTS TURNED AND POLISHED
- BEARINGS DODGE
- TAKE UPS SCREW TYPE - STATIONARY:
- CONVEYOR SPLICE ONE PIECE FRAME
- SUPPORTS SEE ADDED MODIFICATIONS - CONVEYOR COMPONENTS:
- BELTING 3-PLY-3/16X1/16 330PIW
- BELT SPLICE VULCANIZE SPLICE
- BELT SCRAPER SUPERIOR EXTERRA PRIMARY
- SUPERIOR IDLERS CEMA B 5" DIA. ROLLS SEALED FOR LIFE BALLBEARINGS
- IDLER BOLTS 4-BOLTS PER TROUGHING IDLER
- LOAD AREA 20 DEGREE TROUGH 16" SPACING
- TROUGH 35 DEGREE ON 4- SPACING
- RETURNS STEEL ROLLS ON 10- SPACING
- RECEIVING HOPPER NOT INCLUDED
- GATHERING TROUGH 5- LONG WITH ADJUSTABLE RUBBER FLASHING - ADDITIONAL SPECIFICATIONS:
- GUARDING FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS.
GUARDS MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
- PAINT SUPERIOR CLASS I GRAPHITE GRAY W/ YELLOW GUARDING
- GENERAL EQUIPMENT SIGN PLATE
- IDLER PAINT POWDER COATED SUPERIOR ORANGE
- OWNER-S MANUAL (1) COPY INCLUDED FOR OPERATION AND MAINTENANCE.
- ON-SITE SERVICE: NOT INCLUDED - ADDED MODIFICATIONS:
- EXTRA FRAME: UPPER FRAME PIECES
- TAIL STANDS: FRAME SUPPORT WITH PINS AND 5- UPRIGHT LEGS
- HEAD STAND: FRAME SUPPORT WITH PINS AND 7- UPRIGHT LEGS
- LIFTING EYES: (2) CROSS SUPPORTS WITH LIFTING EYES
