2022 Superior Conveyor - Transfer 42X70STSS-TRL
Fields with asterisks * are required.
Print This Page
Description

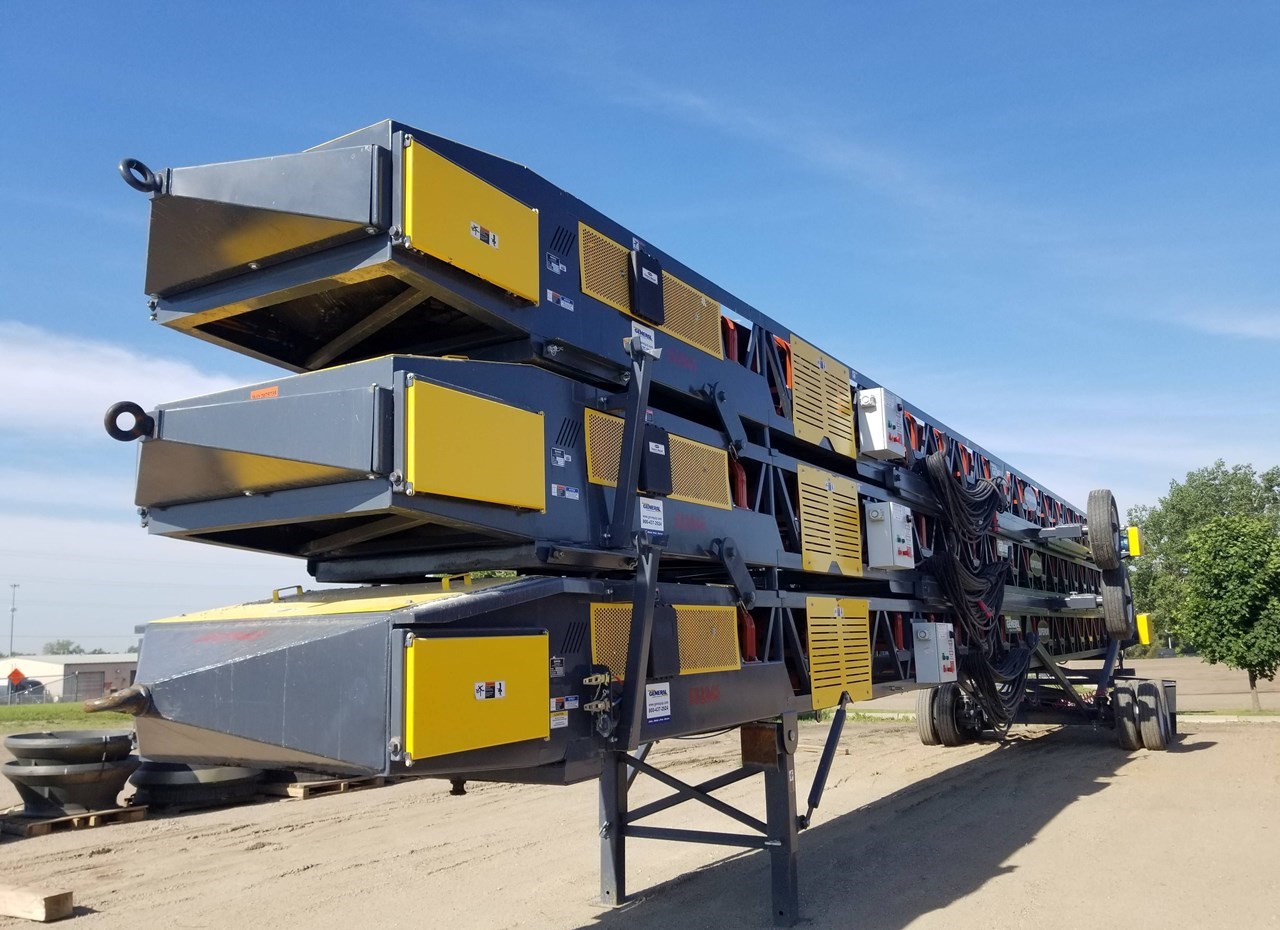

SUPERIOR SLIDE-STAC CONVEYOR
Inventory ID
E00062943
Serial
2075734
Machine Location
Details
- Inventory ID: E00062943
- Status: On Yard
- Make: Superior
- Model: 42X70STSS-TRL
- Year: 2022
- Serial#: 2075734
Notes
- SUPERIOR 42" X 70- SLIDE-STAC SYSTEM:
- CONVEYOR FRAME - NO TOP CROSS LATTICES
TRAILER UNIT (TRL):
- MAIN FRAME: 30" DEEP TRUSS
- CHORD ANGLES: 4" X 4" X 5/16
- LATTICE MEMBERS: 2" X 2" X 3/16"
MIDDLE UNIT (MID) AND TOP UNIT (TOP):
-MAIN FRAME: 30" DEEP TRUSS
- CHORD ANGLES: 4" X 4" X 1/4"
- LATTICE MEMBERS: 2" X 2" X 3/16"
- ROLLER ASSEMBLY: SINGLE SET ON HEAD END FOR EASY LOADING AND UNLOADING
DRIVE SPECIFICATIONS:
- DRIVERS: CLASS I HEAD END
- GEAR REDUCERS: DODGE SHAFT MOUNT
- BACKSTOPS: INCLUDED
- MOTORS: 30 HP 1800 RPM TEFC
- V-BELT DRIVE: WITH DRIVE GUARD
- CAPACITY: 1200 STPH OF 100 PCF MATERIAL 25 DEGREE SURCHARGE (90% FINES 10%
SPHERICAL LUMPS 7" MINUS)
- BELT SPEED: 350 FPM
SUPERIOR PULLEYS CROWN FACED
- DRIVE PULLEYS: 18" DIAMETER 3/8" HERRINGBONE LAGGED DRUM
- TAIL PULLEYS: 14" DIAMETER CEMA CHEVRON PULLEY
- SHAFTS: TURNED AND POLISHED
- BEARINGS: DODGE
- TAKE UPS: SCREW TYPE
PORTABILITY:
- CONVEYOR SPLICE: ONE PIECE TRUSS FRAME
- TOWING EYE: PINTLE TYPE HITCH
TRAILER UNIT (TRL):
- V TYPE AXLE: ADJUSTABLE TO 18 DEG TELESCOPING AXLE WITH SWIVEL BOXES AND (8)
11R22.5 RADIAL TIRES
- SUPPORT LEGS: ADJUSTABLE HEIGHT FOLDING LEGS
- FIFTH WHEEL: ON TRAILER UNIT
- BRAKES: COMPLETE AIR SYSTEM
- LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
- MUD FLAPS: INCLUDED
MIDDLE UNIT (MID) AND TOP UNIT (TOP):
- V TYPE AXLE: ADJUSTABLE TO 18 DEG SWIVELING SINGLE 11-22.5 AG WHEELS AND
TIRES
- FOLD DOWN LEGS: FOLD DOWN LEGS FOR MID AND TOP UNIT
CONVEYOR COMPONENTS:
- BELTING: 3 PLY 3/16 X 1/16 330 PIW
- BELT SPLICE: FACTORY VULCANIZED SPLICES
- BELT SCRAPER: SUPERIOR EXTERRA PRIMARY
- SUPERIOR IDLERS: CEMAC 5" DIA. ROLLS SEALED FOR LIFE BALL BEARINGS
- MOUNTING: RECESSED INSIDE FRAME
- LOAD AREA: 20›¼° TROUGH 16" SPACING
- TROUGH: 35›¼° ON 4- SPACING
- RETURNS: 12- SPACING
- SKIRTING EXTENSION: 5- LONG 10" HIGH HINGED WITH 1" ROUND BAR FOR MATERIAL
SHELF
- GATHERING TROUGH: 5- LONG WITH ADJUSTABLE RUBBER FLASHING
ADDITIONAL SPECIFICATIONS:
- GUARDING: FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED
- POWER SUPPLY: 480 V / 3 PH / 60 HZ
- ELECTRICAL: ELECTRICAL SWITCHGEAR PANELS ON EACH CONVEYOR WITH 333- OF MAIN
POWER CORD ON EACH CONVEYOR
- PAINT: GRAPHITE GRAY (12-00636) W/ YELLOW GUARDING
- GUARD PAINT: SAFTEY YELLOW
- SIGNPLATES: GENERAL SIGNPLATES INCLUDED
- IDLER PAINT: POWDER COATED SUPERIOR ORANGE
- OWNER-S MANUAL: (1) COPY INCLUDED FOR OPERATION MAINTENANCE AND PARTS
