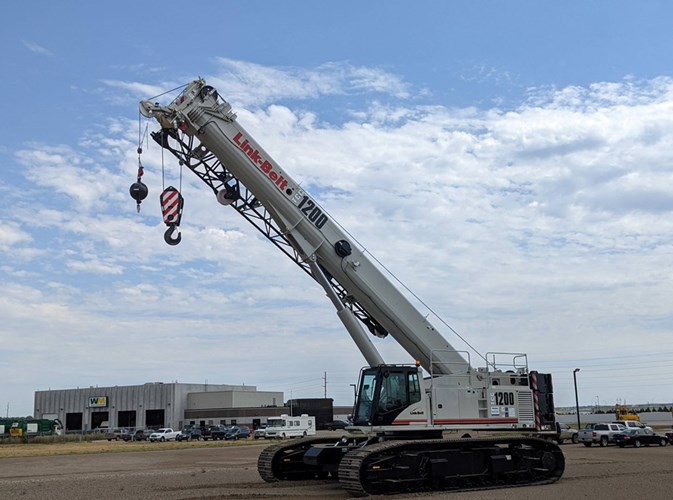

2022 Link Belt Crane TCC-1200
Fields with asterisks * are required.
Print This Page
Description
120 TON TELESCOPIC BOOM CRAWLER CRANE
Inventory ID
E00062277
Serial
S1L2-7166
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00062277
- Status: On Rent
- Make: Link Belt
- Year: 2022
- Model: TCC-1200
- Serial#: S1L2-7166
- Est Hours: 1594.4
Notes
- LINK-BELT TCC-1200 120 TON TELESCOPIC BOOM CRAWLER CRANE
- LOWER STRUCTURE:
- CARBODY:
- CONSTRUCTED OF HIGH STRENGTH STEEL WITH PRECISION-MACHINE SURFACES FOR
TURNTABLE BEARING ROTATING JOINT BEAMS AND BOXES FINAL DRIVE IDLER
AND ROLLER MOUNTINGS. DOUBLE ACTING TELESCOPIC AXLE BEAMS PROVIDE THREE (3)
WORKING POSITIONS INCLUDING 15- 2.16" (4.63M) EXTENDED GAUGE 12- 8.64"
(3.88M) INTERMEDIATE GAUGE 8- 11.5" (2.73M) RETRACTED GAUGE (TRANSPORT).
FOUR (4) DOUBLE ACTING "SWING OUT" STYLE CARBODY JACKS.
- SIDE FRAMES:
- SELF REMOVABLE 2 SPEED-HYDROSTATIC DRIVEN SIDE FRAME ASSEMBLIES PROVIDES
WITH A 22-10" (6.95M) OVERALL LENGTH. SIDE FRAMES INCLUDE PRECISION MACHINED
SURFACES FOR MATING PARTS. 36" (.91M) WIDE TRIPLE BAR GROUSER TRACK SHOES
13 SEALED (OIL FILLED) LOWER TRACK ROLLERS AND 3 SEALED (OIL FILLED) UPPER
TRACK ROLLERS SEALED (OIL FILLED) IDLER AND DRIVE PLANETARIES.
- GENERAL LOWER ITEMS:
- ITEMS INCLUDE 2 STEP ASSEMBLIES THAT ATTACH TO SIDE FRAMES AUTOMATIC
HYDRAULIC TRACK TENSION SYSTEM FRONT AND REAR TIE OR TOWING LUGS 3
PIECE TRACK GUIDE SYSTEM AUDIBLE TRAVEL ALARM AND REMOTE ENGINE START FOR
EASE IN SELF ASSEMBLY. - REVOLVING UPPERSTRUCTURE:
- UPPER FRAME:
- ALL WELDED STEEL FRAME WITH PRECISION-MACHINED SURFACES FOR MATING PARTS.
- ENGINE
- CUMMINS TIER 4 FINAL DIESEL WITH 320 GROSS HP (238KW) 12 VOLT START / 12
VOLT CHARGING AND 150 AMP ALTERNATOR.
- PUMPS AND HYDRAULICS
- THREE VARIABLE DISPLACEMENT PISTON TYPE PUMPS PROVIDE INDEPENDENT CONTROL
FOR HOIST DRUMS BOOM HOIST BOOM EXTEND RIGHT & LEFT TRAVEL. TWO GEAR TYPE
PUMPS ARE USED FOR THE SWING SIDE FRAME EXTEND / RETRACT OPERATOR
CONTROLS ENGINE REMOTE COOLING FAN AND HYDRAULIC OIL COOLING FAN.
- MAIN & AUXILIARY WINCH:
- MODEL 2M TWO SPEED POWER UP / DOWN WINCH PACKAGE INCLUDES INDEPENDENT
HYDRAULIC CONTROLLED / PILOT OPERATED PISTON TYPE MOTOR WITH DISABLE SWITCH
PLANETARY GEAR REDUCTION UNIT AUTOMATIC CONTROLLED SPRING APPLIED /
HYDRAULIC RELEASE MULTIPLE DISC BRAKE ELECTRONIC DRUM ROTATION INDICATOR
ANDDRUM CABLE FOLLOWERS. DRUM INCLUDES GROOVED LAGGING AND ARE MOUNTED ON
ANTI-FRICTION BEARINGS.
- SWING:
- INCLUDES INDEPENDENT HYDRAULIC CONTROLLED / PILOT OPERATED AXIAL PISTON
MOTOR PLANETARY GEAR REDUCTION UNIT SPRING APPLIED HYDRAULIC RELEASED 360
DEGREE MULTI-PLATE PARK BRAKE AUDIO & VISUAL SWING ALARM FOUR POSITION
POSITIVE HOUSE LOCK AND GLIDE SWING MODE.
- COUNTERWEIGHT:
- (UPPER) 19 000LB (8 618KG) A AND 16 000LB (7 257KG) B AND 16 000LB (7 257KG)
C UPPER COUNTERWEIGHT. (LOWER) TWO 12 500LB (5 670KG) LOWER CARBODY
COUNTERWEIGHTS.
- OPERATOR-S CAB:
- INCLUDES FULLY ENCLOSED MODULAR COMPARTMENT TILTING CAB WITH SAFETY GLASS
FOR FULL VISION SLIDING OPERATOR S DOOR HINGED TOP HATCH GLASS SLIDING
FRONT WIDOW WITH WIPER SLIDING REAR GLASS AC / HOT WATER HEATER ENGINE
INSTRUMENTATION PANEL WITH AUDIO / VISUAL WARNING LINK-BELT PULSE RATED
CAPACITY LIMITER INCLUDING RCL INTERNAL LIGHT BAR AND AUDIBLE RANGE CONTROL
/ SWING INHIBIT 6 WAY ADJUSTABLE SEAT FIRE EXTINGUISHER FOOT THROTTLE
FOOT TRAVEL WITH REMOVABLE HAND LEVERS BOOM TELESCOPE FOOT PEDAL SWING
BRAKE PEDAL BUBBLE LEVEL AND PILOT-OPERATED SINGLE AXIS CONTROLLERS.
STANDARD WORK LIGHT PACKAGE (2) UPPER MOUNTED AND WIND SPEED INDICATOR.
- GENERAL UPPERSTRUCTURE ITEMS:
- FINE METERING CONTROLS LEFT AND RIGHT SIDE FOLDING CATWALKS LEFT SIDE
FOLDING UPPERHANDRAILS RIGHT AND LEFT SIDE SWING VIEWING MIRRORS REAR
AND WINCH VIEW CAMERAS HOUSE MOUNTED 360 DEGREE REMOTE CONTROLLED HIGH
INTENSITY WORK LIGHT AMBER STROBE LIGHT AND 110 GALLON (416 L) FUEL TANK
WITH FUEL WATER SEPARATOR.
- BOOM:
- 40- TO 150- (12.19M TO 45.72M) FULL POWER FIVE SECTION FORMED BOOM WITH
QUICK REEVE HEAD MACHINERY AND (3) SELECTABLE EXTENSION MODES. SIX NYLON
HEAD SHEAVES DEFLECTOR ROLLER GREASELESS WEAR PADS MECHANICAL BOOM ANGLE
INDICATOR AUXILIARY LIFTING SHEAVE 360 DEGREE REMOTE CONTROLLED HIGH
INTENSITY BOOM FLOOD LIGHT AND WIND SPEED SENDING UNIT.
- BOOM HOIST SYSTEM:
- ONE DOUBLE ACTING CYLINDER WITH INTEGRAL HOLDING VALVE.
- STANDARD OIL LUBE AND ANTI-FREEZE:
- RECOMMENDED FOR AMBIENT TEMPERATURES BETWEEN 10›¼°F (-12›¼°C) AND 120›¼°F (49›¼°C) -
STANDARD FOR TIER 4F/STAGE IV AND TIER 3/STAGE IIIA EMISSIONS. STANDARD
HYDRAULIC OIL: GRADE 68
- GENERAL ATTACHMENT ITEMS:
- INCLUDES7/8 (22MM) X 850 TYPE KC MAIN HOIST ROPE 7/8 (22MM) X 500 TYPE KC
AUX. HOIST ROPE TERMINATOR SOCKET & WEDGE AND ANTI-TWO BLOCK WEIGHT. - WARRANTY:
- 12 MONTH UNLIMITED HOURS FOR MATERIAL AND WORKMANSHIP - "SEE LINK-BELT
WEBSITE UNDER SERVICE WARRANTY STATEMENTS FOR DETAILS" - INCLUDED SPEC EQUIPMENT:
- TCC-1200 BASIC CRANE 120 TON (110.00 METRIC) TELESCOPIC CRAWLER TIER 4 FINAL
ULTRA LOW SULFUR ENGINE
- TOOLBOX - (2)STORAGE BOXES THAT CONNECT TO FRONT & REAR COUNTERWEIGHT
- HYDRAULIC ALL TEMPERATURE HIGH VISCOSITY INDEX OIL LUBE AND ANTI-FREEZE
INSTEAD OF STANDARD
- DIESEL FIREDENGINE HEATER
- 360 DEGREE ROTATING BEACON
- AVIATION OBSTRUCTION MARKING LIGHT AND FLAG INCLUDES ONE SOLAR CHARGED
FLASHING RED LIGHT AND ONE AVIATION FLAG WITH MOUNTING POINTS AT THE END OF
THE BOOM AND ATTACHMENTS.
- 10- TO 31- TO 55- (3.05M TO 9.45M TO 16.76M) OFFSETTABLE STOWABLE THREE
PIECE LATTICE FLY
- 12 TON (10.89 METRIC TON) SWIVELING HOOK AND BALL [WEIGHT: 850 LBS (378KG)]
- 90 TON (81.65 METRIC TON) 5 SHEAVE QUICK-REEVE HOOK BLOCK WITH SAFETY
LATCH [WEIGHT: 1 750 LBS (794KG)]
- 24 MONTH - WARRANTY PLUS COVERAGE - WARRANTY PLUS COVERAGE FOR 24 ADDITIONAL
MONTHS BEYOND EXPIRATION OF THE BASE MACHINE WARRANTY UNLIMITED HOURS.
WARRANTY PLUS IS LIMITED EXTENDED WARRANTY COVERAGE INDEPENDENT OF THE BASE
MACHINE WARRANTY.
